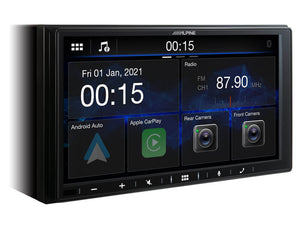

Alpine iLX-W690DU - Fiat Ducato - CarPlay/Android Auto Head Unit

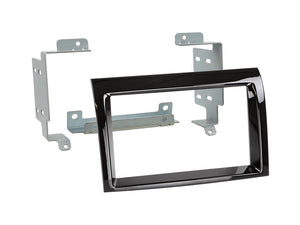

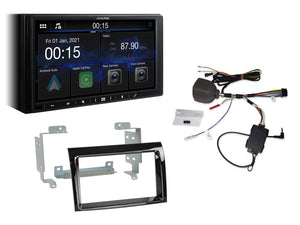

The Alpine iLX-W690DU Digital Media Receiver features a 7-inch hi-res capacitive touchscreen, which works perfectly with smartphone connectivity features like Apple CarPlay and Android Auto and includes all required parts and components for installation in a Fiat Ducato 3, Citroen Jumper 2 and Peugeot Boxer 2.

It is designed to give smartphone users all features they want and need to enjoy their motorhome tours. The built-in DAB+ digital radio tuner lets you enjoy radio stations in excellent sound quality, while the high-speed charging function for smartphones ensures that your phone battery is rapidly charged. Bluetooth audio streaming allows everyone in the car to contribute with their phones and music to the party on the road.

The unit features a very shallow installation depth of only 6 cm, which allows installation of an add-on amplifier to the back of the chassis.

Product Features

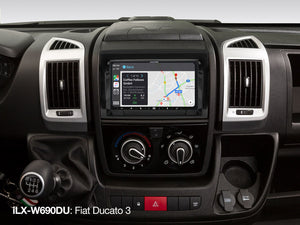

Enjoy Seamless Smartphone Connectivity in your Fiat Ducato 3

Bring all your music with you on your smartphone or stream music through Spotify, Amazon Music, Apple Music or other online platforms. Do you love to navigate using Google maps, Waze, Apple Maps or other amazing navi apps? The Alpine iLX-W690DU is an amazing product that allows you to make full use of your smartphone in your Fiat Ducato 3 — without breaking the bank.

Built-In DAB+ Digital Radio Tuner

The built-in DAB+ tuner uses the most advanced digital technology to deliver radio reception with outstanding, noise-free sound quality. DAB+ also offers many other advantages over traditional FM radio: choose from a much wider range of radio stations and after the initial station scan easily select your desired channels from an alphabetic or genre list of available stations.

Easy Online Navigation

Use your iLX-W690DU with Apple CarPlay or Android Auto compatible navigation apps to get you to your next adventure. There are many excellent navigation apps available (such as Google maps, Apple maps, Waze, etc) that also include live-traffic information and advanced search functions.

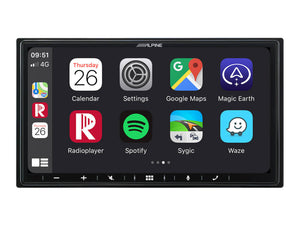

Works with Apple CarPlay

The iLX-W690DU “Works with Apple CarPlay” and lets iPhone users make and receive calls, access text messages, play music, and get directions in a way that allows them to stay focused on the road. Apple CarPlay is accessed through the capacitive touch screen or the mic button to activate Siri voice control and is compatible with iPhone 5S and later (iPhone must be connected via Apple lightning cable).

Works with Android Auto

This Head Unit is compatible with Android Auto to use hundreds of compatible apps while you drive and works with the Google Assistant. To access the Google Assistant on Android Auto, say "OK Google" or select the mic button. Google Assistant in Android Auto allows users to play their favorite music, get driving directions to their destination, interact with smart home devices and reply to text messages – hands free.

Steering Wheel Telephone Controls

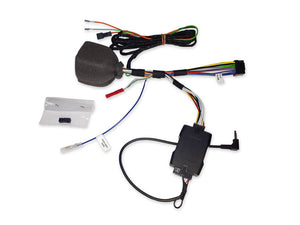

The iLX-W690DU includes a full wiring kit and interface to connect your Alpine system to the steering wheel control buttons of your Fiat Ducato 3.

Vehicle Compatibility

• Fiat Ducato III (250) - 06/2006 – 2010
• Fiat Ducato III Facelift (250) - 2011 – 2014
• Fiat Ducato III (290) - 2014 – 2021
• Citroën    Jumper II (250) - 06/2006 →
• Peugeot    Boxer II (250) - 06/2006 →
• Opel Movano III (TypC) - 10/2021 →

For cars with a 1 DIN radio or radio preparation and with ISO / Mini-ISO connector.

Features & Specifications

MONITOR SECTION

• Screen Size: 7 inch
• LCD Type: Transparent type TN LCD
• Operation System: TFT active matrix
• Number of Picture Elements: 1,152,000 pcs. (800 × 480 × 3 (RGB))
• Effective Number of Picture Elements: 99% or more
• Illumination System: LED

TUNER SECTION

• FM Tuning Range: 87.5 – 108.0 MHz
• AM Tuning Range: 531 – 1,602 kHz
• Signal-to-Noise Ratio: 65 dB
• DAB Tuning Range: 174.928 – 239.2 MHz
• Usable Sensitivity: -92dBm
• Signal to Noise Ratio Band III: 70dB

USB SECTION

• USB requirements: USB 2.0
• Max. Power Consumption: 1,500 mA (CDP Support)
• USB (Play From Device) / USB (Mass Storage Class)
• File System: FAT16/32
• Dynamic Range: 95 dB (at 1 kHz)
• Signal-to-Noise Ratio: 100 dB
• WAV / FLAC / MP3 / WMA / AAC Audio Playback (from USB)
• MP4 / MOV / AVI / WMV / MPG Video Playback (from USB)
• JPG / PNG / BMP Photo Playback (from USB)

HDMI SECTION

• Input Format: 720p/480p/VGA

BLUETOOTH SECTION

• Bluetooth Specification: Bluetooth V4.1
• HFP (Hands-Free Profile)
• PBAP (Phone Book Access Profile)
• A2DP (Advanced Audio Distribution Profile)
• AVRCP (Audio/Video Remote Control Profile)

GENERAL

• Power Requirement: 14.4 V DC (11–16 V allowable)
• Operating temperature: -20 degree Celsius to + 60 degree Celsius
• Power Output: 4x 50 Watts
• Weight: 1.0 kg

CHASSIS SIZE

• Width: 178 mm
• Height: 100 mm
• Depth: 60 mm

Further Information

Alpine iLX-W690DU - Owners Manual (PDF)

Alpine iLX-W690DU - Quick Reference Quide (PDF)

Installation Manual for Wiring Controls (PDF)
