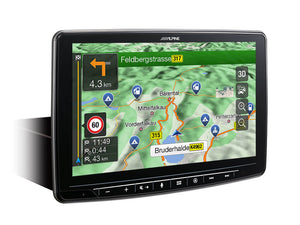

Alpine INE-F904DU8 - Fiat Ducato 8 - CarPlay/Android Auto Head Unit

The Alpine INE-F904DU8 Halo9 Navi for the new 2022 model year Fiat Ducato 8 will be your perfect companion to enhance all your tours and vacations.

The built-in motorhome navigation system includes TomTom maps for 48 countries and includes very useful features, such as selectable motorhome profiles, a park4night database, as well as a BordAtlas database. It also includes the all-new Preflight Check – a fully customisable system that reminds you before your departure to secure all doors, turn-off the gas and secure other items that can cause damage while driving.

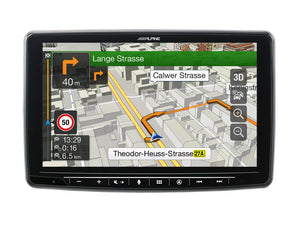

You can also use your favourite apps (such as Google maps, Waze, Spotify, WhatsApp,etc) with Apple CarPlay and Android Auto. The super-slim 9-inch display appears to simply hover over your dashboard and even includes a white LED ambient light on the bottom.

Next to cutting edge navigation, you get DAB+ digital radio, USB video playback, Bluetooth hands-free and audio streaming and much more with this amazing product. Bring the future of car-media to your FIAT Ducato 8 with the Alpine Halo9 Navi.

Product Features

INE-F904DU8: Made for Fiat Ducato 8

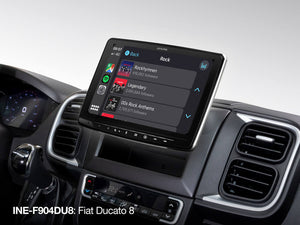

The new 2022 Fiat Ducato 8 has arrived and features an all-new dashboard and electronics system. Alpine already created a full product bundle to install the Alpine Halo 9 Navi perfectly to the Ducat 8’s dashboard and electronics. All required components for installation are included to make the installation as easy as possible.

Steering Wheel Telephone Controls

Unlike other manufacturers, the Alpine system is fully compatible with the Ducato III Version 8’s steering wheel control buttons, including telephone accept & decline buttons.

Professional Motorhome Navigation

Your Alpine system comes wit pre-installed map data for 48 European countries. You can easily purchase additional countries and regions online to upgrade your database (incl. USA, Canada and many more). It features the latest iGo Primo nextgen navigation software and is compatible with both GPS and Glonass for highest location accuracy. The TomTom navigation maps provide free-of-charge updates for 3 years.

Custom-fit frame and installation brackets for Fiat Ducato 8 and related caravans included

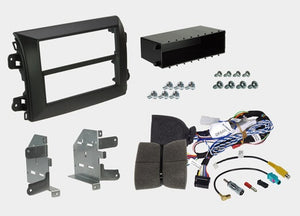

The INE-F904DU8 includes a custom-fit frame, installation brackets, wiring harness with CAN interface and an antenna adapter. The CAN interface retains usage of the steering wheel remote control buttons.

Vehicle Compatibilty

• Fiat Ducato III Version 8 - 2022 >

Features & Specifications

Screen

• Screen Size: 9-inch Capacitive WVGA
• LCD Type: Transparent Type TN LCD
• Operation System: TFT Active Matrix
• Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
• Illumination System: White LED Backlighting
• Effective Number of Picture Elements: 99.99%
• Colour System: NTSC, PAL

Max Power Output Ratings

• Max Power Output: 4 x 50 W

FM Tuner

• Tuning Range: 87.5 - 108.0 MHz
• Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
• 50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
• Alternate Channel Selectivity: 80 dB
• Signal-to-Noise Ratio: 65 dB
• Stereo Separation: 35 dB
• Capture Ratio: 2 dB

MW Tuner

• Tuning Range: 531 - 1,602 kHz
• Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf

LW Tuner

• Tuning Range: 153 - 281 kHz
• Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf

USB

• USB Requirements: USB 2.0
• Max. Power Consumption: 1,500 mA (CDP Support)
• USB Class: Mass Storage Class, Play From Device
• File System: FAT 16/32
• MP3 Decoding: MPEG-1/2 AUDIO Layer-3
• WMA Decoding: Windows Media™ Audio
• AAC Decoding: ACC-LC format ′′.m4a′′ file
• FLAC Decoding
• Number of Channels: 2-Channel (Stereo)
• Frequency Response: 5 - 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
• Total Harmonic Distortion (at 1kHz): 0.008%
• DynamicRange(at 1kHz): 95 dB
• Signal-to-Noise Ratio: 100 dB
• Channel Separation (at 1kHz): 85 dB

GPS / Glonass

• GPS / Glonass compatible navigation antenna included

BLUETOOTH®

• BLUETOOTH® Version: Bluetooth V2.1+EDR
• Output Power: +4 dBm Max. (Power class 2)
• HFP (Hands Free Profile)
• OPP (Object Push Profile)
• PBAP (Phone Book Access Profile)
• HSP (Head Set Profile)
• A2DP (Advanced Audio Distribution Profile)
• AVRCP (Audio/Video Remote Control Profile)
• SPP (Serial Port Profile)

Sound Tuning

• Subwoofer Level Adjustment: 0 to +15
• Subwoofer Phase Setting: 0° or 180°
• BASS ENGINE SQ: 5Mode, Level 0 to +6
• HighPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
• HighPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
• HighPassFilter (Gain): -12 to 0 dB
• LowPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
• LowPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
• LowPassFilter (Gain): -12 to 0 dB
• Time Correction: 0.0 - 9.9ms (0.1ms step)
• Dual HD EQ Front + Rear
• Parametric Equalizer (Band 1): 20 - 100 Hz
• Parametric Equalizer (Band 2): 63 - 315 Hz
• Parametric Equalizer (Band 3): 125 - 500 Hz
• Parametric Equalizer (Band 4): 250 - 1k Hz
• Parametric Equalizer (Band 5): 500 - 2k Hz
• Parametric Equalizer (Band 6): 1k - 4k Hz
• Parametric Equalizer (Band 7): 2k - 7.2k Hz
• Parametric Equalizer (Band 8): 5.8k - 12k Hz
• Parametric Equalizer (Band 9): 9k - 20k Hz
• Parametric Equalizer (Gain): -14 to +14
• Application Volume Level Setting: -14 to +14

HDMI Section

• Input Format 480p / 720p

General

• Power Requirement: 14.4 V. DC (11-16V allowable)
• Pre Output Voltage (Before Clipping): 4 V / 10k ohms
• Maximum Mounting Angle: 30°

Dimensions

• Din Size: 1DIN chassis and 9” Capacitive Touch Screen
• Chassis Size (W x H x D) mm: 178 x 50 x 160 mm
• Nose Piece Size (W x H x D) mm: 235.2 x 152.2 x 19 mm
