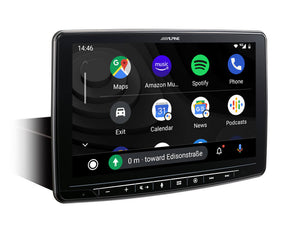

Alpine INE-F904TRA - Transit Custom - CarPlay/Android Auto Head Unit

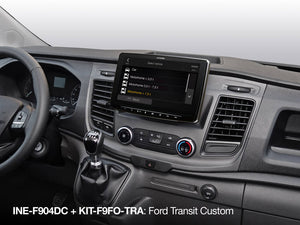

The Alpine INE-F904TRA Halo9 is for the Ford Transit Custom (model year 2018 and newer) and now also available with built-in navigation and pre-installed trucking software as well as motorhome profiles. After you setup your truck or motorhome in the system, only navigation routes suitable for your vehicle will be proposed by your Alpine.

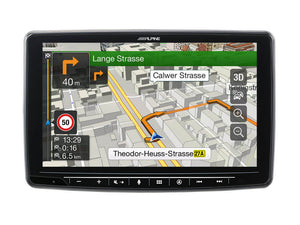

The new "Alpine Halo9 Navi" features iGo Primo NextGen navigation with TomTom maps for 46 countries and 3 years free-of-charge map update. You can also use navigation apps (such as Google maps, Waze, etc) with Apple CarPlay and Android Auto.
The super-slim display appears to simply hover over your dashboard and even includes a white LED ambient light on the bottom.
Next to cutting edge navigation, you get DAB+ digital radio, USB video playback, Bluetooth hands-free and audio streaming and much more with this amazing product.

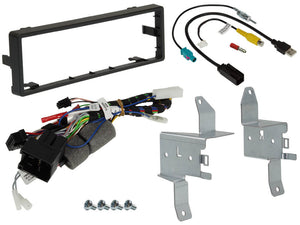

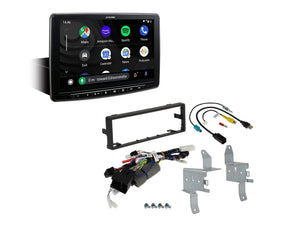

The KIT-F9FO-TRA includes a custom-fit frame, installation brackets, wiring harness with CAN interface and an antenna adapter. The CAN interface retains usage of the steering wheel remote control buttons. Also it includes an adapter that connects the original USB port in the dashboard with your Alpine system to maintain these useful connectors.
Product Features
Alpine Halo9 Navi for Trucks and large Motorhomes
The INE-F904DC is a DAB+ Advanced Navi Station with a 9-inch WVGA touch-screen and drive-less design (no CD/DVD slot). It uses a 1DIN chassis for installation, but the display “hovers” in front of the vehicle’s dash, allowing the oversize screen to be added to a variety of vehicles without the need for custom installation. Many trucks have a 1DIN installation bracket on top of the windshield – the Halo9 Navi can be placed here easily in a "hanging" configuration.
Edge-to-Edge Glass Design
The amazing 9-inch display sits in a super slim housing with edge-to-edge glass and a nice chrome trim around the edge. Combined with the touch-responsive hard-keys on the bottom it makes the units stunningly beautiful and very modern in function and appearance.
Adjustable Display Angle
You can adjust the INE-F904DC’s display angle from +45 degrees to -20 degrees to match a wide range of dashboard angle. After the display angle is set, it gets locked into place during installation to be rock-steady while driving over any terrain and when pushing with your finger on the display to control the unit.
Built-in DAB+ Digital Radio
The built-in DAB+ tuner uses the most advanced digital technology to deliver radio reception with outstanding, noise-free sound quality. DAB+ also offers many other advantages over traditional FM radio: choose from a much wider range of radio stations and after the initial station scan easily select your desired channels from an alphabetic or genre list of available stations.
Features & Specifications
Screen
- Screen Size: 9-inch Capacitive WVGA
- LCD Type: Transparent Type TN LCD
- Operation System: TFT Active Matrix
- Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
- Illumination System: White LED Backlighting
- Effective Number of Picture Elements: 99.99%
- Colour System: NTSC, PAL
Max Power Output Ratings
- Max Power Output: 4 x 50 W
FM Tuner
- Tuning Range: 87.5 - 108.0 MHz
- Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
- 50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
- Alternate Channel Selectivity: 80 dB
- Signal-to-Noise Ratio: 65 dB
- Stereo Separation: 35 dB
- Capture Ratio: 2 dB
MW Tuner
- Tuning Range: 531 - 1,602 kHz
- Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf
LW Tuner
- Tuning Range: 153 - 281 kHz
- Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf
USB
- USB Requirements: USB 2.0
- Max. Power Consumption: 1,500 mA (CDP Support)
- USB Class: Mass Storage Class, Play From Device
- File System: FAT 16/32
- MP3 Decoding: MPEG-1/2 AUDIO Layer-3
- WMA Decoding: Windows Media™ Audio
- AAC Decoding: ACC-LC format ′′.m4a′′ file
- FLAC Decoding
- Number of Channels: 2-Channel (Stereo)
- Frequency Response: 5 - 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
- Total Harmonic Distortion (at 1kHz): 0.008%
- DynamicRange(at 1kHz): 95 dB
- Signal-to-Noise Ratio: 100 dB
- Channel Separation (at 1kHz): 85 dB
GPS / Glonass
- GPS / Glonass compatible navigation antenna included
BLUETOOTH®
- BLUETOOTH® Version: Bluetooth V2.1+EDR
- Output Power: +4 dBm Max. (Power class 2)
- HFP (Hands Free Profile)
- OPP (Object Push Profile)
- PBAP (Phone Book Access Profile)
- HSP (Head Set Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (Audio/Video Remote Control Profile)
- SPP (Serial Port Profile)
Sound Tuning
- Subwoofer Level Adjustment: 0 to +15
- Subwoofer Phase Setting: 0° or 180°
- BASS ENGINE SQ: 5Mode, Level 0 to +6
- HighPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
- HighPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
- HighPassFilter (Gain): -12 to 0 dB
- LowPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
- LowPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
- LowPassFilter (Gain): -12 to 0 dB
- Time Correction: 0.0 - 9.9ms (0.1ms step)
- Dual HD EQ Front + Rear
- Parametric Equalizer (Band 1): 20 - 100 Hz
- Parametric Equalizer (Band 2): 63 - 315 Hz
- Parametric Equalizer (Band 3): 125 - 500 Hz
- Parametric Equalizer (Band 4): 250 - 1k Hz
- Parametric Equalizer (Band 5): 500 - 2k Hz
- Parametric Equalizer (Band 6): 1k - 4k Hz
- Parametric Equalizer (Band 7): 2k - 7.2k Hz
- Parametric Equalizer (Band 8): 5.8k - 12k Hz
- Parametric Equalizer (Band 9): 9k - 20k Hz
- Parametric Equalizer (Gain): -14 to +14
- Application Volume Level Setting: -14 to +14
HDMI Section
- Input Format 480p / 720p
General
- Power Requirement: 14.4 V. DC (11-16V allowable)
- Pre Output Voltage (Before Clipping): 4 V / 10k ohms
- Maximum Mounting Angle: 30°
Dimensions
- Din Size: 1DIN chassis and 9” Capacitive Touch Screen
- Chassis Size (W x H x D) mm: 178 x 50 x 160 mm
- Nose Piece Size (W x H x D) mm: 235.2 x 152.2 x 19 mm
Further Information
Alpine INE-F904TRA - Owners Manual (PDF)
