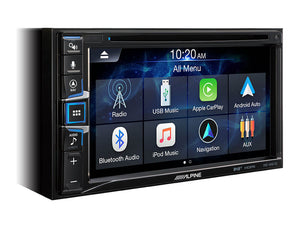

Alpine INE-W611DU - Fiat Ducato - CarPlay/Android Auto Head Unit

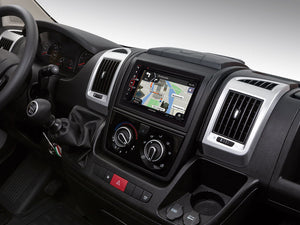

The Alpine INE-W611DU motorhome navigation system is ideal for Fiat Ducato III, Citroën Jumper II and Peugeot Boxer II drivers that look for a flush-mount installation, rather than a tablet-style system.

This unit is an all-in-one solution with built-in iGo Primo navigation using TomTom maps with included trucking and camper software, as well as a CD/DVD drive. The 6.5-inch touch-screen displays navigation maps, menus and movies clear and crisp. Enjoy DAB+ digital radio and use authorized apps in your car with Apple CarPlay and Android Auto.

Take advantage of your two USB ports, allowing you to charge your phone and playback music from your USB stick at the same time.

Product Features

Designed for Fiat Ducato III and Related Caravans

The INE-W611DU is exclusively designed for the Fiat Ducato III (Type 250/251 model year 2006 and newer including 2011 and 2014 facelifts), Citroën Jumper II and the Peugeot Boxer II. It is compatible with vehicles with 1DIN radio or radio preparation. Motorhomes with a navigation (VP1 or VP2) require an additional Alpine installation bracket (KIT-903DU-OEM).

Steering wheel remote buttons

If your Ducato is equipped with control buttons on the steering wheel, you can use them with the INE-W611DU as well. The Alpine Style system is fully connected to the vehicle electronics and accepts all steering controls such as volume control, telephone, voice control and audio mute.

All-In-One Multimedia Solution

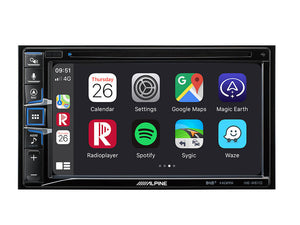

The INE-W611DU is an excellent choice if you look for a navigation and multimedia system with a maximum of media options for motorhomes and trucks. You can playback DVDs and CDs, listen to DAB+ digital radio, connect your smartphone to use Android Auto and Apple CarPlay, stream music via Bluetooth, connect external HDMI sources (such as a DVB-T2 digital TV tuner) or use USB storage devices to playback music and video files.

Built-in Navigation for Motorhomes and Trucks

The built-in iGo Primo nextgen navigation system uses TomTom maps and comes with pre-installed maps for 46 European countries. Select from hundreds of thousands of POIs to find gas stations, restaurants, sightseeing spots, shopping malls and much more. The pre-installed motorhome and trucking software lets you choose from 3 pre-defined motorhome sizes, or create your own profile with vehicle measurements, weight, dangerous cargo and if a trailer is towed.

Vehicle Compatibility

Features & Specifications

Display

• Screen Size: 6.5 inch
• LCD Type: Transparent type TN LCD
• Number of Picture Elements: 1,152,000 pcs. (800 × 480 × 3 (RGB)) Effective Number of Picture Elements: 99% or more
• Illumination System: LED

Tuner

• FM Tuning Range: 87.5 – 108.0 Mhz
• AM / MW Tuning Range: 531 -1,602KHz
• LW Tuning Range: 153 – 281 kHz
• Mono Usable Sensitivity: 9.3 dBf (0.8 μV/75 ohms)
• 50 dB Quieting Sensitivity: 13.5 dBf (1.3 μV/75 ohms)
• Alternate Channel Selectivity: 80 dB

DAB

• Tuning Range BAND III:  174.928 - 239.2 MHz
• Tuning Range L-BAND: 1,452.96 - 1,490.624 MHz
• Usable Sensitivity: -101 dBm
• Signal-to-Noise Ratio: 85 dB

USB

• USB requirements: USB 2.0
• Max. Power Consumption: 1,500 mA (CDP Support)
• USB Class: USB (Mass Storage Class)
• File System: FAT16/32
• Decoding Formats: MP3/WMA/AAC/FLAC/OGG/APE/MP2
• Number of Channels: 2-Channels (Stereo)
• Total Harmonic Distortion: 0.016% (at 1 kHz)
• Dynamic Range: 95 dB (at 1 kHz)
• Signal-to-Noise Ratio: 85 Db
• Channel Separation: 75 dB (at 1 kHz)

HDMI

• Input Format : 480p/720p

Navigation

• GPS Reception frequency: 1,575.42 ±1 MHz
• GPS Reception sensitivity: -130 dBm max.

Bluetooth

• Bluetooth Specification: Bluetooth v4.0
• Frequency band: 2,402 – 2,480 MHz
• Output Power: -6~+4 dBm Ave. (Power class 2)
• HFP (Hands-Free Profile)
• PBAP (Phone Book Access Profile)
• A2DP (Advanced Audio Distribution Profile)
• AVRCP (Audio/Video Remote Control Profile)

General

• Power Requirement: 14.4 V DC (11–16 V allowable)
• Operating temperature: 4°F to +140°F (-20°C to + 60°C)
• Maximum Power Output: 50W x 4
• Preout (Front, Rear):  4V/10k ohms (max.)
• Preout (Subwoofer): 4V/10k ohms (max.)
• Weight (unit only): 2.05 kg

Chassis Size

• Width: 178 mm
• Height: 100 mm
• Depth: 142 mm

Further Information

Alpine INE-W611DU- Owners Manual (PDF)

Alpine INE-W611DU - Quick Reference Quide (PDF)

Installation Manual for Wiring Loom (PDF)
