Alpine X903D-F / DC-F - Freestyle Head Unit

The Alpine X903D-F Freestyle systems have been created to cover the growing demand for a custom installation system. Freestyle can be used especially for vehicles where no regular radio or navigation fits and no solutions are available. It is then up to the skill of the installer to use the Freestyle system to create a great solution for the vehicle.

The 3rd generation Alpine Style navigation system offers extensive media options including Apple CarPlay and Android Auto compatibility, and cutting edge iGo Primo Nextgen navigation with TomTom maps and 3 years free-of-charge map updates. It also features a much faster navigation CPU and larger system memory for smooth system operation. You can now also zoom in and out of the navigation map using finger pinch gestures. The X903D-F also features high-end sound quality and sound tuning options.

Alternative model pre-installed with Caravan, Camper and Truck software available. Alpine X903DC-F

Product Features

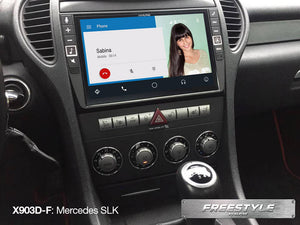

Freestyle solution for custom installs

As our Alpine Style infotainment systems get more popular and the demand for more vehicle solutions increases, we also want to offer a Freestyle solution that can be custom installed in any vehicle. This is especially interesting for vehicles that are incompatible with 1DIN or 2DIN solutions, and for which there are no car specific solutions available. The new Freestyle systems are available in 7” and 9” monitor configurations and feature iGo primo NextGen navigation, as well as built-in DAB+ and other important media options.

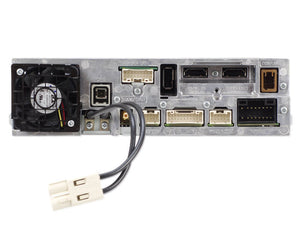

All parts included

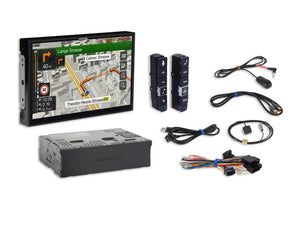

Both Freestyle products include a high-resolution touch-screen, fully customizable key panels, a media receiver, GPS / Glonass antenna, wiring kit, USB cable and a Golf 6 frame. This gives the installer all parts needed for a good custom installation.

Interchangeable keys

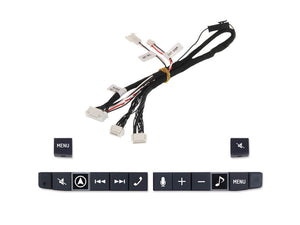

The 2 key panels can be installed horizontally or vertically, depending on the installation position. The key positions can also be assigned individually due to the interchangeable buttons. This has the advantage that key layout can be adjusted to personal preferences, as well as for left-hand or right-hand steering wheel configuration. We recommend for example, that the volume buttons are always installed on the same side than the steering wheel to be easily reachable.

Key caps

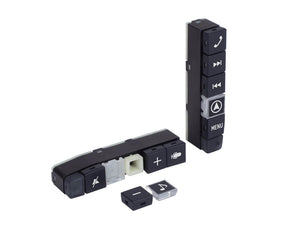

The key caps can be easily removed to change their position. The can also be rotated to allow vertical or horizontal installation.

Works with Apple CarPlay

The innovative X903D-F with Apple CarPlay compatibility brings you a smarter way to use your iPhone on the road. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use maps, listen to music and access messages with just a word or a touch. You can even enjoy Spotify, internet radio or podcasts while on the road for a truly connected experience. Simply connect your CarPlay enabled iPhone to the USB port of your Alpine and you are ready to go.

Works with Android Auto

Android Auto was designed with safety in mind. With a simple and intuitive interface, integrated steering wheel controls, and powerful new voice actions, it's designed to minimize distraction so you can stay focused on the road. Android Auto automatically brings you useful information, and organizes it into simple cards that appear just when they're needed. Both Apple CarPlay and Android Auto can access the navigation antenna of the X903D-F for improved accuracy when using the navi apps.

Features & Specifications

Screen

• Screen Size: 9-inch Capacitive WVGA
• LCD Type: Transparent Type TN LCD
• Operation System: TFT Active Matrix
• Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
• Illumination System: White LED Backlighting
• Effective Number of Picture Elements: 99.99%
• Colour System: NTSC, PAL

Max Power Output Ratings

• Max Power Output: 4 x 50 W

FM Tuner

• Tuning Range: 87.5 - 108.0 MHz
• Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
• 50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
• Alternate Channel Selectivity: 80 dB
• Signal-to-Noise Ratio: 65 dB
• Stereo Separation: 35 dB
• Capture Ratio: 2 dB

MW Tuner

• Tuning Range: 531 - 1,602 kHz
• Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf

LW Tuner

• Tuning Range: 153 - 281 kHz
• Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf

USB

• USB Requirements: USB 2.0
• Max. Power Consumption: 1,500 mA (CDP Support)
• USB Class: Mass Storage Class, Play From Device
• File System: FAT 16/32
• MP3 Decoding: MPEG-1/2 AUDIO Layer-3
• WMA Decoding: Windows Media™ Audio
• AAC Decoding: ACC-LC format ′′.m4a′′ file
• FLAC Decoding
• Number of Channels: 2-Channel (Stereo)
• Frequency Response: 5 - 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
• Total Harmonic Distortion (at 1kHz): 0.008%
• DynamicRange(at 1kHz): 95 dB
• Signal-to-Noise Ratio: 100 dB
• Channel Separation (at 1kHz): 85 dB

GPS / Glonass

• GPS / Glonass compatible navigation antenna included

BLUETOOTH®

• BLUETOOTH® Version: Bluetooth V2.1+EDR
• Output Power: +4 dBm Max. (Power class 2)
• HFP: HFP (Hands Free Profile)
• OPP (Object Push Profile)
• PBAP (Phone Book Access Profile)
• HSP (Head Set Profile)
• A2DP: A2DP (Advanced Audio Distribution Profile)
• AVRCP: AVRCP (Audio/Video Remote Control Profile)
• SPP (Serial Port Profile)

Sound Tuning

• Subwoofer Level Adjustment: 0 to +15
• Subwoofer Phase Setting: 0° or 180°
• BASS ENGINE SQ: 5Mode, Level 0 to +6
• HighPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
• HighPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
• HighPassFilter (Gain): -12 to 0 dB
• LowPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
• LowPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
• LowPassFilter (Gain): -12 to 0 dB
• Time Correction: 0.0 - 9.9ms (0.1ms step)
• Dual HD EQ Front + Rear
• Parametric Equalizer (Band 1): 20 - 100 Hz
• Parametric Equalizer (Band 2): 63 - 315 Hz
• Parametric Equalizer (Band 3): 125 - 500 Hz
• Parametric Equalizer (Band 4): 250 - 1k Hz
• Parametric Equalizer (Band 5): 500 - 2k Hz
• Parametric Equalizer (Band 6): 1k - 4k Hz
• Parametric Equalizer (Band 7): 2k - 7.2k Hz
• Parametric Equalizer (Band 8): 5.8k - 12k Hz
• Parametric Equalizer (Band 9): 9k - 20k Hz
• Parametric Equalizer (Gain): -14 to +14
• Application Volume Level Setting: -14 to +14

HDMI Section

• Input Format 480p/VGA
• Output Format 480p

General

• Power Requirement: 14.4 V. DC (11-16V allowable)
• Pre Output Voltage (Before Clipping): 4 V / 10k ohms
• Maximum Mounting Angle: 30°

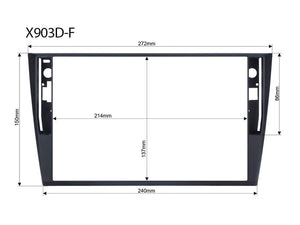

Dimensions

• Display cable length: 100 cm
• Key harness length: 25 cm
• Din Size: 1DIN chassis and 9” Capacitive Touch Screen
• Chassis Size (W x H x D) mm: 178 x 50 x 164 mm

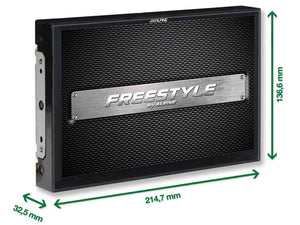

• Monitor size (W x H x D) mm: 214.7 x 136.6 x 32.45 mm

Further Information

Alpine X903D-F - Owners Manual (PDF)

Alpine X903D-F - Quick Reference Guide (PDF)

Alpine X903DC-F - Navigation Software Manual (PDF)
