Alpine X903D-V447 - Mercedes Vito - CarPlay/Android Auto Head Unit

The Alpine X903D-V447 for the Mercedes Vito 447 features a huge 9-inch touch-screen that is installed off-set from the dashboard to be perfectly reachable from the driver’s seat. This makes it very easy to see and control navigation maps and other functions.

It also features a much faster navigation CPU and larger system memory for smooth system operation. You can now also zoom in and out of the navigation map using finger pinch gestures.

The system also features the cutting edge iGo Primo NextGen navigation system with TomTom maps. Best of all, you get 3 years free of charge map updates. You can also easily install additional camper databases to have a perfect POI database for your camping needs. The X903D-V447 also includes Apple CarPlay and Android Auto compatibility.

Product Features

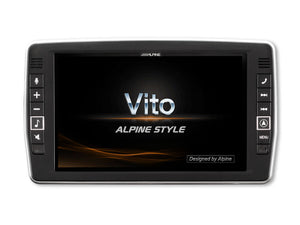

Designed for Mercedes Vito

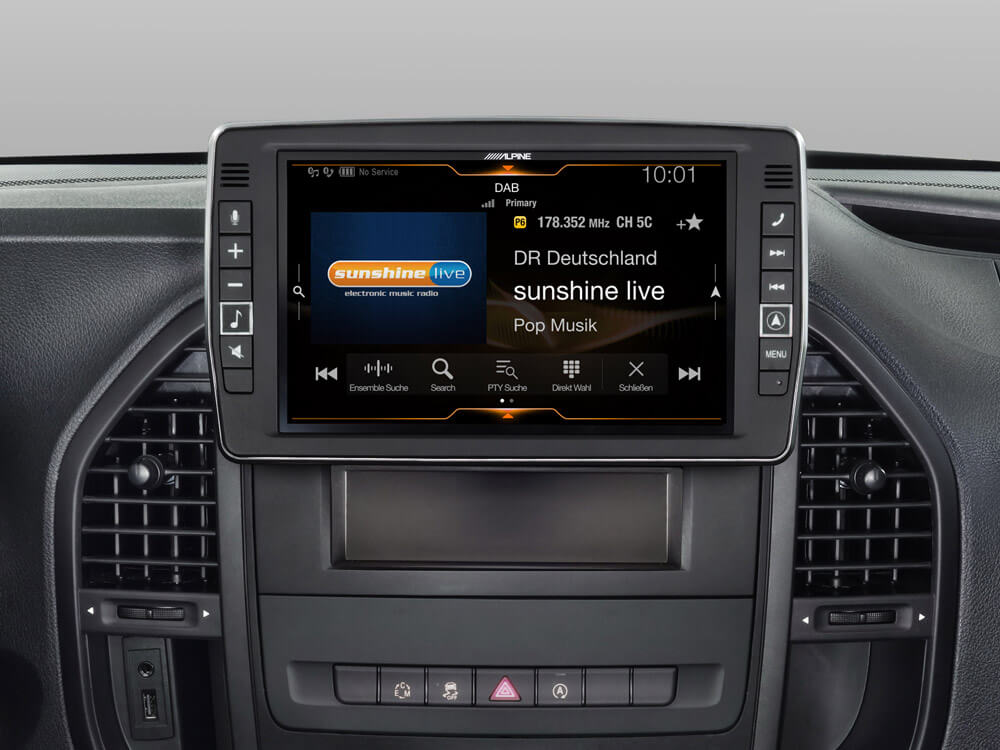

The X902D-V447 is exclusively designed for the Mercedes Vito (447 model year 2014 and newer). The gigantic 9-inch high-resolution touch screen of the X902D-V447 will amaze you with superb picture quality for navigation maps, menus and video content. Best of all: the installation allows the lower pocket in your dash to remain unused.

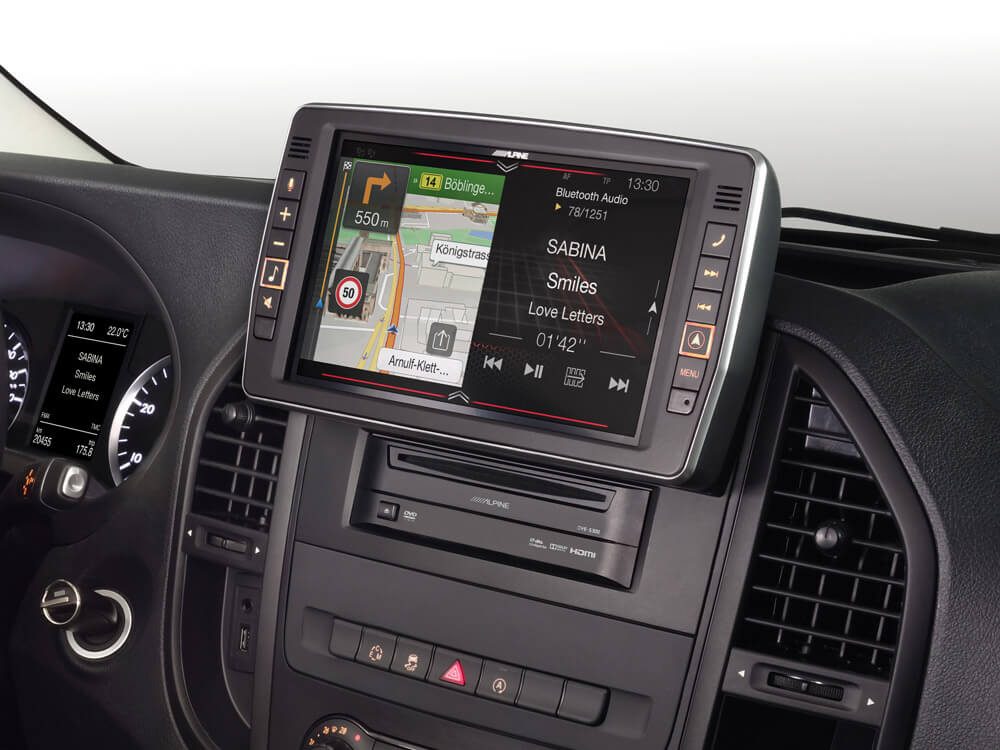

Easy to reach from the driver’s seat

Accessibility is an important factor especially on long trips when you often change radio stations or change navigation settings. The Alpine Style system is designed in an off-set configuration from the dash – bringing it closer to the driver to be easily reached without leaning forward. We included large control buttons besides the screen for easy access of the main sources, volume, telephone and more.

Steering wheel remote buttons

If your Mercedes Vito is equipped with control buttons on the steering wheel, you can use them with the X902D-V447 as well. The Alpine Style system is fully connected to the vehicle electronics and accepts all steering controls such as volume control, telephone, voice control and audio mute. This is yet another feature that contributes to comfort and driving safety in your mobile-home.

Works with Apple CarPlay

The innovative X902D-V447 with Apple CarPlay compatibility brings you a smarter way to use your iPhone on the road. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use maps, listen to music and access messages with just a word or a touch. You can even enjoy Spotify, internet radio or podcasts while on the road for a truly connected experience. Simply connect your CarPlay enabled iPhone to the USB port of your Alpine and you are ready to go.

Works with Android Auto

Android Auto was designed with safety in mind. With a simple and intuitive interface, integrated steering wheel controls, and powerful new voice actions, it's designed to minimize distraction so you can stay focused on the road. Android Auto automatically brings you useful information, and organizes it into simple cards that appear just when they're needed. Both Apple CarPlay and Android Auto can access the navigation antenna of the X902D-V447 for improved accuracy when using the navi apps.

Vehicle Compatibility

• Mercedes Vito V447 - 2014 >

If the car was not equipped with a navigation system, the navigation screen of the MFD needs to be enabled by a Mercedes partner.

Vehicles with original radio and E-Call system: The E-Call system remains functional - an E-Call adaptation to avoid error messages is required (vehicles with radio preparation will not encounter this problem).

Vehicles with original Garmin OEM radio 30/40: The original rear view camera is not supported!

Features & Specifications

Screen

• Screen Size: 9-inch Capacitive WVGA
• LCD Type: Transparent Type TN LCD
• Operation System: TFT Active Matrix
• Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
• Illumination System: White LED Backlighting
• Effective Number of Picture Elements: 99.99%
• Colour System: NTSC, PAL

Max Power Output Ratings

• Max Power Output: 4 x 50 W

FM Tuner

• Tuning Range: 87.5 - 108.0 MHz
• Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
• 50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
• Alternate Channel Selectivity: 80 dB
• Signal-to-Noise Ratio: 65 dB
• Stereo Separation: 35 dB
• Capture Ratio: 2 dB

MW Tuner

• Tuning Range: 531 - 1,602 kHz
• Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf

LW Tuner

• Tuning Range: 153 - 281 kHz
• Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf

USB

• USB Requirements: USB 2.0
• Max. Power Consumption: 1,500 mA (CDP Support)
• USB Class: Mass Storage Class, Play From Device
• File System: FAT 16/32
• MP3 Decoding: MPEG-1/2 AUDIO Layer-3
• WMA Decoding: Windows Media™ Audio
• AAC Decoding: ACC-LC format ′′.m4a′′ file
• FLAC Decoding
• Number of Channels: 2-Channel (Stereo)
• Frequency Response: 5 - 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
• Total Harmonic Distortion (at 1kHz): 0.008%
• DynamicRange(at 1kHz): 95 dB
• Signal-to-Noise Ratio: 100 dB
• Channel Separation (at 1kHz): 85 dB

GPS / Glonass

• GPS / Glonass compatible navigation antenna included

BLUETOOTH®

• BLUETOOTH® Version: Bluetooth V2.1+EDR
• Output Power: +4 dBm Max. (Power class 2)
• HFP: HFP (Hands Free Profile)
• OPP (Object Push Profile)
• PBAP (Phone Book Access Profile)
• HSP (Head Set Profile)
• A2DP: A2DP (Advanced Audio Distribution Profile)
• AVRCP: AVRCP (Audio/Video Remote Control Profile)
• SPP (Serial Port Profile)

Sound Tuning

• Subwoofer Level Adjustment: 0 to +15
• Subwoofer Phase Setting: 0° or 180°
• BASS ENGINE SQ: 5Mode, Level 0 to +6
• HighPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
• HighPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
• HighPassFilter (Gain): -12 to 0 dB
• LowPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
• LowPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
• LowPassFilter (Gain): -12 to 0 dB
• Time Correction: 0.0 - 9.9ms (0.1ms step)
• Dual HD EQ Front + Rear
• Parametric Equalizer (Band 1): 20 - 100 Hz
• Parametric Equalizer (Band 2): 63 - 315 Hz
• Parametric Equalizer (Band 3): 125 - 500 Hz
• Parametric Equalizer (Band 4): 250 - 1k Hz
• Parametric Equalizer (Band 5): 500 - 2k Hz
• Parametric Equalizer (Band 6): 1k - 4k Hz
• Parametric Equalizer (Band 7): 2k - 7.2k Hz
• Parametric Equalizer (Band 8): 5.8k - 12k Hz
• Parametric Equalizer (Band 9): 9k - 20k Hz
• Parametric Equalizer (Gain): -14 to +14
• Application Volume Level Setting: -14 to +14

HDMI Section

• Input Format 480p/VGA
• Output Format 480p

General

• Power Requirement: 14.4 V. DC (11-16V allowable)
• Pre Output Voltage (Before Clipping): 4 V / 10k ohms
• Maximum Mounting Angle: 30°

Dimensions

• Display cable length: 100 cm
• Key harness length: 25 cm
• Din Size: 1DIN chassis and 9” Capacitive Touch Screen
• Chassis Size (W x H x D) mm: 178 x 50 x 164 mm
• Monitor size (W x H x D) mm: 214.7 x 136.6 x 32.45 mm

Further Information

Alpine X903D-V447 - Owners Manual (PDF)

Alpine X903D-V447 - Quick Reference Guide (PDF)

Installation Manual for X903D-V447 (PDF)
