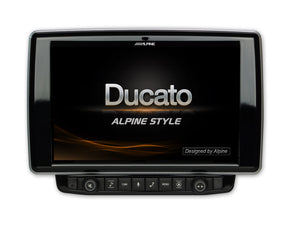

Alpine X903DU8 / DU8S - Fiat Ducato 8 - CarPlay/Android Auto Head Unit

The Alpine X903D-DU8 for the new 2022 model year Fiat Ducato 8 will be your perfect companion and enhance all your tours and vacations.

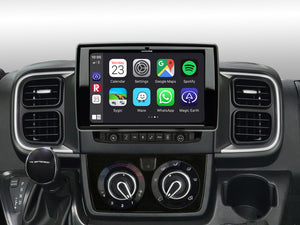

You will highly appreciate the large, high-resolution 9-inch touch-screen display that is easily reachable from both seats in the front. The external keys and rotary dials give you quick access to the most used functions and make operation easy even while driving. The system is connected to the Ducato’s electronics and can be fully controlled from the steering wheel controls.

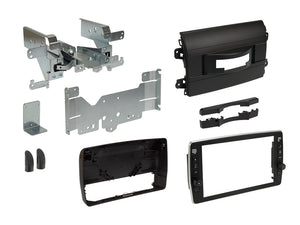

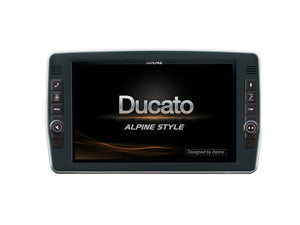

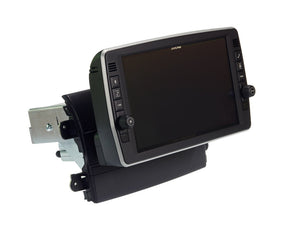

The X903DU8S is an alternative version, which offers a swivel mount feature

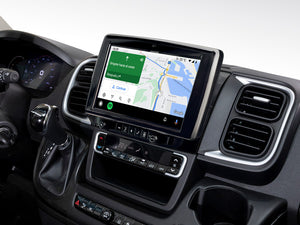

The built-in motorhome navigation system includes TomTom maps for 48 countries and includes very useful features, such as selectable motorhome profiles, a park4night database, as well as a BordAtlas database.

Stay entertained on the road with excellent sound quality from DAB+ radio, Apple CarPlay, Android Auto, Bluetooth or USB sources.

You can further upgrade your X903D-DU8 with a camera system for the front, back and side, to make maneuvering your vehicle easier.

Product Features

X903D-DU8: Made for Fiat Ducato 8

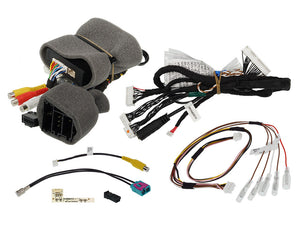

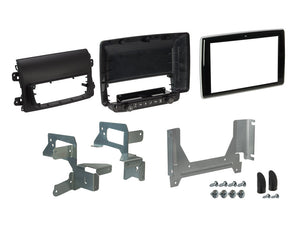

The new 2022 Fiat Ducato 8 has arrived and features an all-new dashboard and electronics system. Alpine already offers a tailor-made navigation system, that ties-in perfectly to the Ducat 8’s dashboard and electronics. All required components for installation are included to make the installation as easy as possible.

Easy control from the steering wheel

If your Ducato is equipped with control buttons on the steering wheel, you can use them with the X903D-DU8 as well. The Alpine system is fully connected to the vehicle’s electronics and accepts all steering controls such as volume control, telephone, voice control and audio mute.

Professional motorhome navigation

Your Alpine system comes wit pre-installed map data for 48 European countries. You can easily purchase additional countries and regions online to upgrade your database (incl. USA, Canada and many more). It features the latest iGo Primo nextgen navigation software and is compatible with both GPS and Glonass for highest location accuracy. The TomTom navigation maps provide free-of-charge updates for 3 years.

Vehicle Compatibility

• Fiat Ducato III Version 8  - 2022 →

the X903D-DU8 is only compatible with vehicles featuring radio preparation or open dash (no radio equipped).

Features & Specifications

Screen

• Screen Size: 9-inch Capacitive WVGA
• LCD Type: Transparent Type TN LCD
• Operation System: TFT Active Matrix
• Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
• Illumination System: White LED Backlighting
• Effective Number of Picture Elements: 99.99%
• Colour System: NTSC, PAL

Max Power Output Ratings

• Max Power Output: 4 x 50 W

FM Tuner

• Tuning Range: 87.5 - 108.0 MHz
• Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
• 50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
• Alternate Channel Selectivity: 80 dB
• Signal-to-Noise Ratio: 65 dB
• Stereo Separation: 35 dB
• Capture Ratio: 2 dB

MW Tuner

• Tuning Range: 531 - 1,602 kHz
• Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf

LW Tuner

• Tuning Range: 153 - 281 kHz
• Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf

USB

• USB Requirements: USB 2.0
• Max. Power Consumption: 1,500 mA (CDP Support)
• USB Class: Mass Storage Class, Play From Device
• File System: FAT 16/32
• MP3 Decoding: MPEG-1/2 AUDIO Layer-3
• WMA Decoding: Windows Media™ Audio
• AAC Decoding: ACC-LC format ′′.m4a′′ file
• FLAC Decoding
• Number of Channels: 2-Channel (Stereo)
• Frequency Response: 5 - 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
• Total Harmonic Distortion (at 1kHz): 0.008%
• DynamicRange(at 1kHz): 95 dB
• Signal-to-Noise Ratio: 100 dB
• Channel Separation (at 1kHz): 85 dB

GPS / Glonass

• GPS / Glonass compatible navigation antenna included

BLUETOOTH®

• BLUETOOTH® Version: Bluetooth V2.1+EDR
• Output Power: +4 dBm Max. (Power class 2)
• HFP: HFP (Hands Free Profile)
• OPP (Object Push Profile)
• PBAP (Phone Book Access Profile)
• HSP (Head Set Profile)
• A2DP: A2DP (Advanced Audio Distribution Profile)
• AVRCP: AVRCP (Audio/Video Remote Control Profile)
• SPP (Serial Port Profile)

Sound Tuning

• Subwoofer Level Adjustment: 0 to +15
• Subwoofer Phase Setting: 0° or 180°
• BASS ENGINE SQ: 5Mode, Level 0 to +6
• HighPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
• HighPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
• HighPassFilter (Gain): -12 to 0 dB
• LowPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
• LowPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
• LowPassFilter (Gain): -12 to 0 dB
• Time Correction: 0.0 - 9.9ms (0.1ms step)
• Dual HD EQ Front + Rear
• Parametric Equalizer (Band 1): 20 - 100 Hz
• Parametric Equalizer (Band 2): 63 - 315 Hz
• Parametric Equalizer (Band 3): 125 - 500 Hz
• Parametric Equalizer (Band 4): 250 - 1k Hz
• Parametric Equalizer (Band 5): 500 - 2k Hz
• Parametric Equalizer (Band 6): 1k - 4k Hz
• Parametric Equalizer (Band 7): 2k - 7.2k Hz
• Parametric Equalizer (Band 8): 5.8k - 12k Hz
• Parametric Equalizer (Band 9): 9k - 20k Hz
• Parametric Equalizer (Gain): -14 to +14
• Application Volume Level Setting: -14 to +14

HDMI Section

• Input Format 480p/VGA
• Output Format 480p

General

• Power Requirement: 14.4 V. DC (11-16V allowable)
• Pre Output Voltage (Before Clipping): 4 V / 10k ohms
• Maximum Mounting Angle: 30°

Dimensions

• Display cable length: 100 cm
• Key harness length: 25 cm
• Din Size: 1DIN chassis and 9” Capacitive Touch Screen
• Chassis Size (W x H x D) mm: 178 x 50 x 164 mm
• Monitor size (W x H x D) mm: 214.7 x 136.6 x 32.45 mm

Further Information

Alpine X903DU8 - Owners Manual (PDF)

Alpine X903DU8 - Quick Reference Guide (PDF)

Installation Manual for X903DU8 (PDF)

Installation Manual for X903DU8S (PDF)
