Today’s factory amplifiers feature built in protection circuits which can mute some or all audio outputs when the factory speakers are removed. The AudioControl AC-LGD 60 has been designed to generate load and stabilise signal from amplified factory system to ensure the best possible audio.

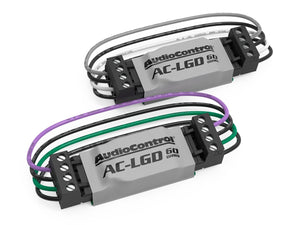

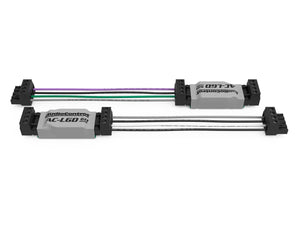

The AC-LGD 60s come in pairs and can be easily connected to your AudioControl Factory System Upgrade product with the pre-wired connectors. The AC-LGD 60 is installed between the factory speaker outputs and your line output converter or speaker level inputs on your amp or processor. Each AC-LGD 60 pair comes pre-wired with EIA standard wire colors for front and rear connections.
IDEAL FOR OEM NON-AMPLIFIED (NO EXTERNAL AMPLIFIER) DODGE®, CHRYSLER®, JEEP®, MASERATI® SOUND SYSTEMS
Technical Specifications
- Maximum Input Voltage: 25 Vrms (150 watts)
- Input Impedance: 60 Ohms
- Dimensions (without wires/connectors): 2.3″ L x 1.0″ W x .06″ H
- Dimensions (with wires/connectors): 9.75″ L x 1.0″ D x .06″ H
- Weight (single LGD): 39g
