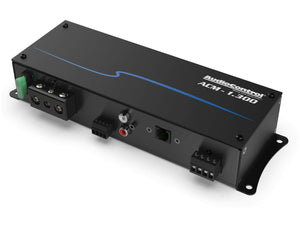

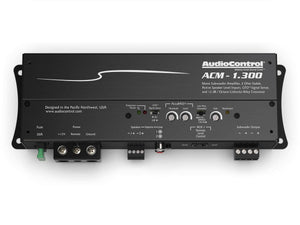

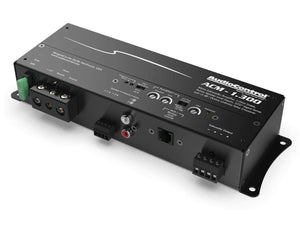

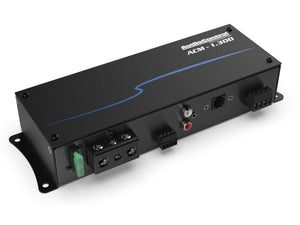

AudioControl ACM 1.300 - Monoblock Micro Amplifier

£329.99

In StockIn StockOut of Stock
VAT included.
Out of Stock
Order within for delivery by hoursminutes

apple paygoogle payklarna-pay-latermaestromasterpaypalshopify payvisa

The AudioControl ACM 1.300 Monoblock Micro Amplifier is the perfect blend of power and features for car audio systems from mild to wild. Compact size, high power and the ability to help integrate with factory stereo systems are features that assure “Making Good Sound Great” can happen in any installation.

Reversible cover plates allow flexible mounting options when paired with AudioControl DM Series Processors or when using multiple ACM series amplifiers in confined spaces. Once again AudioControl comes to the rescue combining features and benefits needed to assure audio euphoria in an automotive setting.

Features

  • 300 watts @ 2 ohms
  • 175 watts @ 4 ohms
  • AccuBASS® Processing
  • GTOTM Signal Sense
  • Active speaker-level inputs for OEM integration
  • RCA Line Inputs
  • Linkwitz-Riley Crossover
  • Optional ACR-1 remote level control
  • Reversible Cover Plate
  • Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)

What's in the Box?

  • ACM-1.300
  • Speaker Connectors
  • Fuse
  • Manual
  • Warranty

Technical Specfications

Inputs

  • Preamp Inputs: 2 Balanced
  • Preamp Input Voltage Range: 500 mV – 6 V RMS
  • Speaker Level Inputs: 2

Outputs

  • Rated Continuous (RMS) Power at 14.4V:
  • 4 Ω – 175 W RMS
  • 2 Ω – 300 W RMS

Performance

  • Frequency Response: 10 Hz – 22 kHz
  • Signal to Noise: 102 dBA, Ref 175 W @ 4 Ohm
  • THD+N: < 0.01%
  • Power / Ground Wire Gauge: 10 to 4 AWG wire
  • Fuse Rating: 1 x 30 A
  • Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
  • PFM Subsonic Filter: 24 Hz

Weights & Dimensions

  • Dimensions: 9.4″W x 3.0″D x 1.75″H
  • Weight: 2.1 lbs. (0.95 kg)

Further Information

AudioControl ACM 1.300 - Monoblock Micro Amplifier - Data Sheet

AudioControl ACM 1.300 - Monoblock Micro Amplifier - User Manual
