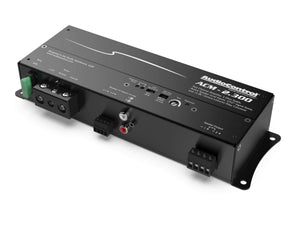

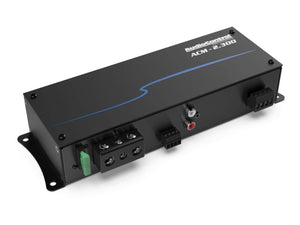

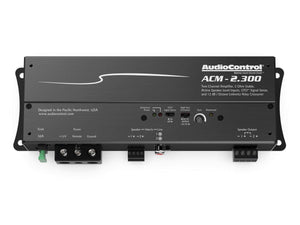

AudioControl ACM 2.300 - 2 Channel Micro Amplifier
£329.00
In StockIn StockOut of StockVAT included.
Shipping calculated at checkout.
Order in the next for delivery by
hoursminutes
The AudioControl ACM 2.300 Stereo Amplifier is the perfect blend of power and features for car audio systems from mild to wild. Compact size, high power and the ability to help integrate with factory stereo systems are features that assure “Making Good Sound Great” can happen in any installation.
Reversible cover plates allow flexible mounting options when paired with AudioControl DM Series Processors or when using multiple ACM series amplifiers in confined spaces. Once again AudioControl comes to the rescue combining features and benefits needed to assure audio euphoria in an automotive setting.
Product Features
- 2 x 150 watts @ 2 ohms
- 2 x 75 watts @ 4 ohms
- 300 watts @ 4 ohms bridged
- GTOTM Signal Sense
- Active speaker-level inputs for OEM integration
- RCA Line Inputs
- Linkwitz-Riley Crossover
- Reversible Cover Plate
- Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)
What's in the Box?
- ACM-2.300
- Speaker Connectors
- Fuse
- Manual
- Warranty
Technical Specifications
Inputs
- Preamp Inputs: 2 Balanced
- Preamp Input Voltage Range: 500 mV – 6 V RMS
- Speaker Level Inputs: 2
Outputs
- Rated Continuous (RMS) Power at 14.4V:
- 4 Ω – 75 W x 2 RMS
- 2 Ω – 150 W x 2 RMS
- Bridged 4 Ω – 300 W RMS
Performance
- Frequency Response: 10 Hz – 22 kHz
- Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
- THD+N: < 0.01%
- Power / Ground Wire Gauge: 10 to 4 AWG wire
- Fuse Rating: 1 x 30 A
- Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
- PFM Subsonic Filter: 32 Hz
Weights & Dimensions
- Dimensions: 9.4″W x 3.0″D x 1.75″H
- Weight: 2.1 lbs. (0.95 kg)
Further Information
AudioControl ACM 2.300 - 2 Channel Micro Amplifier - Data Sheet
AudioControl ACM 2.300 - 2 Channel Micro Amplifier - User Manual
