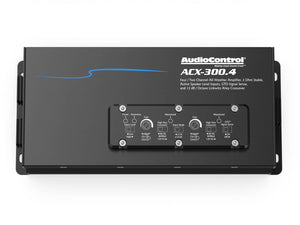

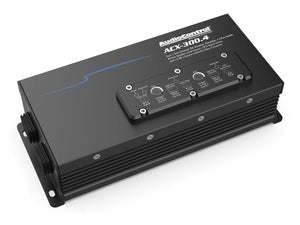

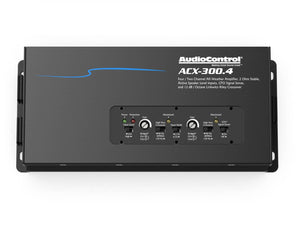

The AudioControl ACX-300.4 all-weather amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. for a two or four channel system, the ACX-300.4 will ensure your open-air speakers deliver plenty of punch and clarity, all day long.

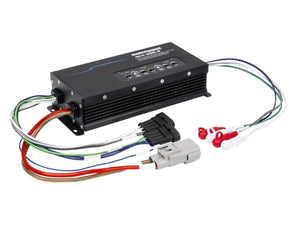

Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-300.4 all-weather amplifier the perfect solution for your next adventure.
Product Features
- 4 x 75 watts @ 2 ohms
- 4 x 50 watts @ 4 ohms
- 150 watts @ 4 ohms bridged
- IPX6 Rated
- GTO Signal Sense
- High and low input modes
- 4 and 2 Channel Input Modes
- Linkwitz-Riley Crossover
- Bulletproof 5 year warranty (when installed by an authorised AudioControl dealer)
What's in the Box?
- ACX-300.4
- User Manual
- Warranty
Technical Specfications
Inputs
- Preamp / Speaker Level Inputs: 4
- Input Voltage Low: 500 mV – 6 Vrms
- Input Voltage Range High: 1 Vrms - 12 Vrms
Outputs
- Rated Continuous (RMS) Power at 14.4V:
- 4 Ω – 50 W RMS x 4
- 2 Ω – 75 W RMS x 4
- Bridged 4 Ω - 150 W RMS
Weights & Dimensions
- Dimensions: 9.0″ W x 3.875″ D x 2.25″ H
- Weight: 7.2 lbs. (3.3 kg)
Performance
- Frequency Response: 26 Hz – 22 kHz
- Signal to Noise: 106 dBA, Ref 50 W @ 4 Ohm
- THD+N: < 0.2%
- Fuse Rating: 1 x 30 A
- Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
- IP Rating: IPX6
