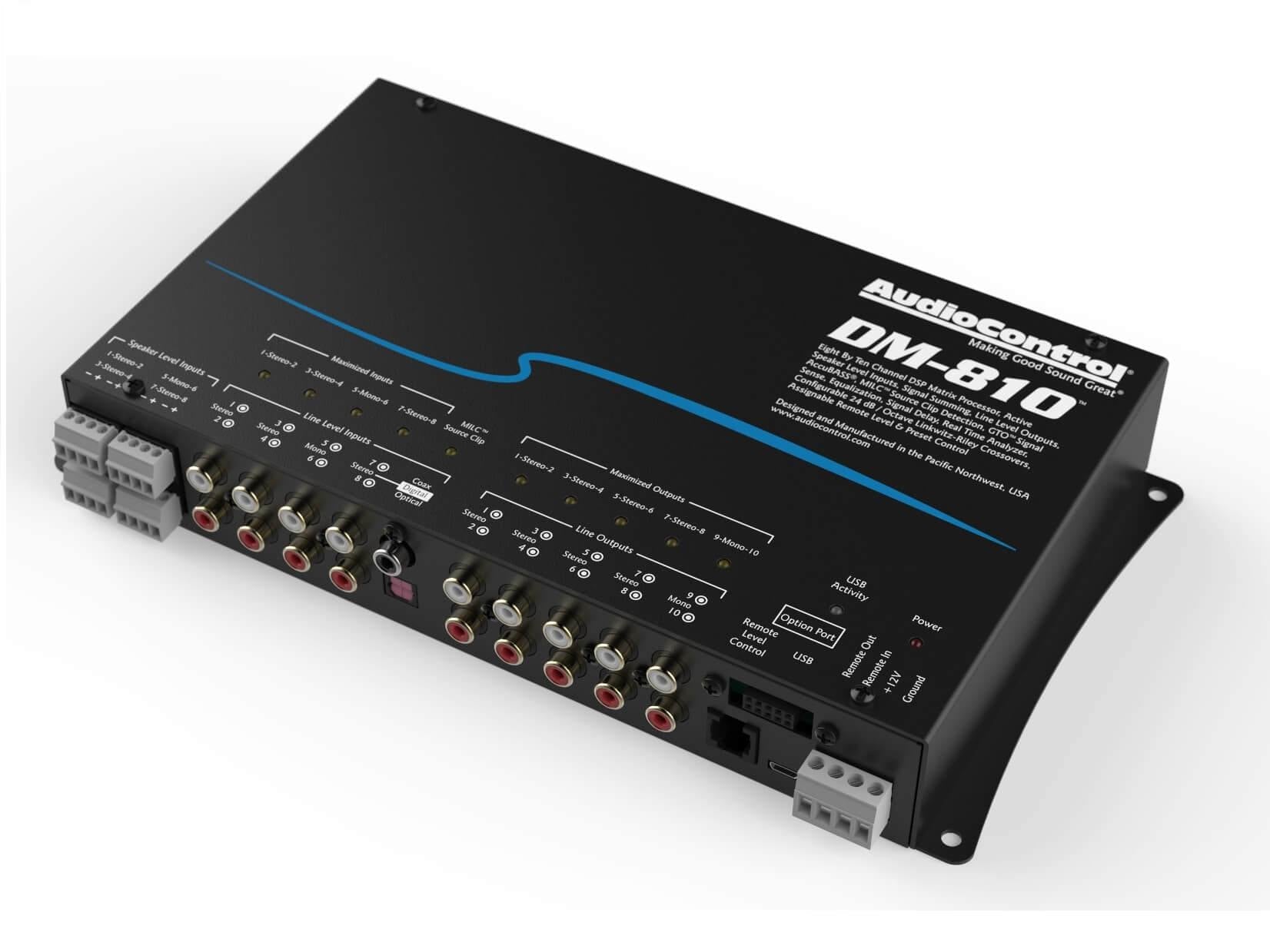

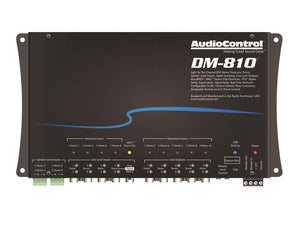

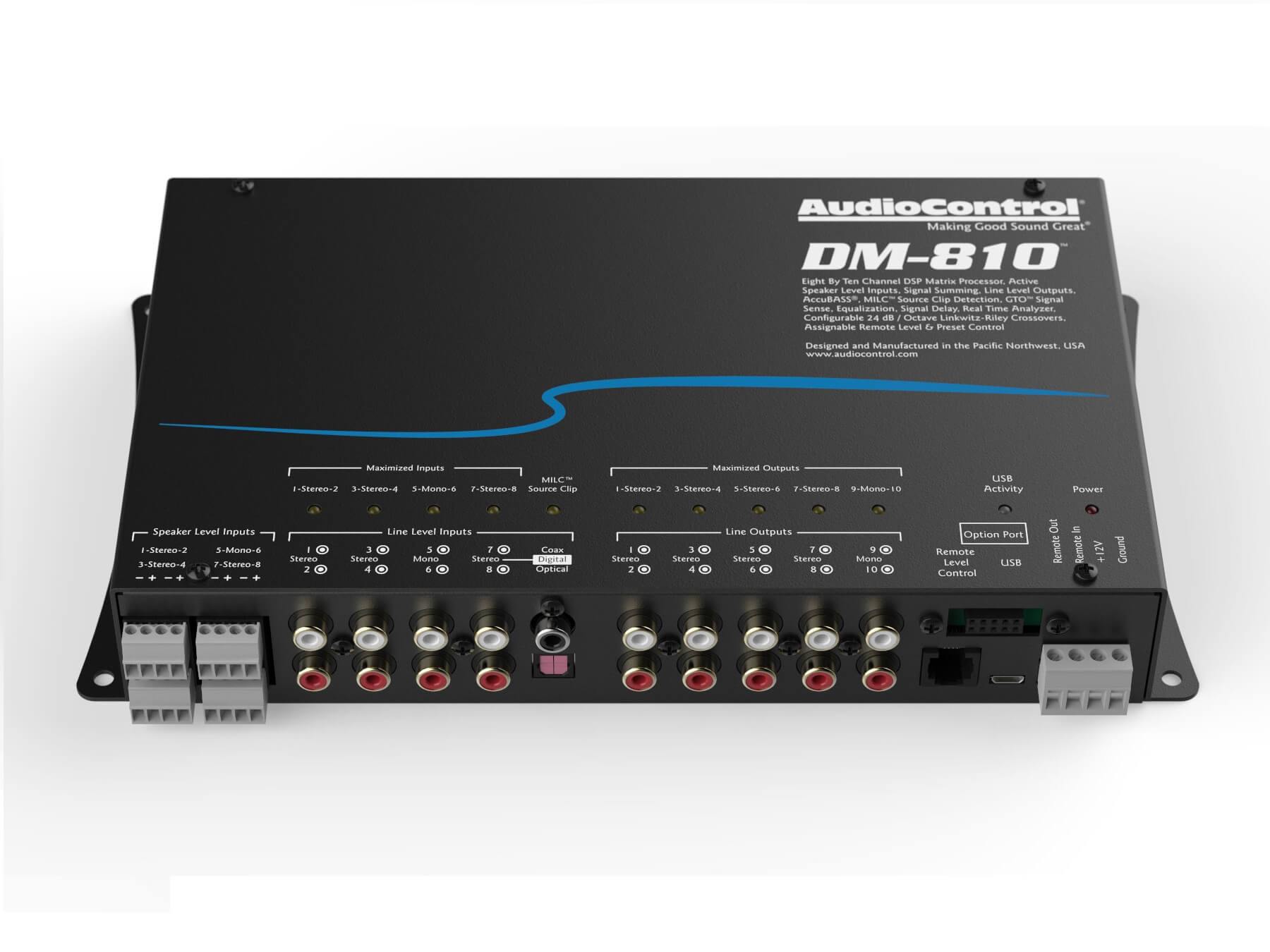

AudioControl DM-810 - Premium DSP Matrix Processor

The powerful AudioControl DM-810 DSP Matrix Processor allows users to truly optimize the performance of their audio system, regardless of whether they are using a factory or aftermarket source, and to truly achieve the goal of “Making Good Sound Great”.

These highly versatile Digital Signal processors are equipped with key features, such as active speaker level inputs, line-level and digital audio inputs, providing up to 10 channels of output. AudioControl’s DM Smart DSP app contains the power of AudioControl processing through a flexible interface packed full of features in a simple lay out. Configure signal summing, 30 bands of equalization, signal time-alignment, input delay and phase correction, plus AudioControl proprietary features like AccuBASS®, GTOTM Signal Sense, and MILCTM as well as integrated input and output RTA’s.

The built in Option Port on the DM-810 is the future of car audio and will allow hi-res streaming directly into the DSP. It also opens up future proprietary connections for additional inputs, controllers and interface solutions.

Designed to be the ultimate in sound quality and enhanced audio performance, the DM-810 is our latest AudioControl processor that sets a new standard for sound and what can be achieved in car audio systems.

Features

• Input and Output RTA for precise and informed tuning
• GTOTM Signal Sensing
• MILCTM Clip Detection
• AccuBASS®
• Signal Summing
• Signal Delay
• 12 and 24 dB/octave crossovers
• 30 band equalizer
• Optional ACR-3 remote for preset recall and level control
• Optional AC-BT24 Bluetooth Streamer/Programmer

Connect your laptop to the DM-810 using AudioControl’s DM Smart DSP app, a fully featured Matrix DSP Interface designed to give you instant and clear control over every aspect of your processor.

Route any input to any output, adjust gain, delay and polarity then precisely tune the DM-810 using a 30 band EQ. High-pass, low-pass and band-pass can be set up for any output using 12 or 24 dB/octave Linkwitz-Riley crossovers.

For OEM integration, take advantage of the input and output RTAs, available for every input and output, to easily identify and sum factory speaker signals.

With a clear GUI and intuitive workflow, AudioControl’s Smart User Interface will take the guesswork out of tuning your system to your exact specifications.

Technical Specifications

Inputs

• Preamp Input Channels: 8
• Digital Inputs: 1 x Toslink and Coax
• Input Impedance Preamp / Speaker-level: 20 kΩ / 7 kΩ

Outputs

• Preamp Outputs Channels: 10
• Maximum Output Level: 10 Vrms
• Output Impedance: 150 Ω

Performance

• Total Harmonic Distortion: 0.01%
• Frequency Response: 20 Hz to 24 kHz
• Crossover Frequency: variable
• Crossover Type: 12 and 24 dB/octave Linkwitz-Riley

Control

• 12 VDC Remote In
• 12 VDC Remote Out (always active when unit is on)

General

• Power Supply: High Headroom PWM Switching
• Current Draw: 1A
• Recommended Fuse Rating: 3A

Weights & Dimensions

• Dimensions: 10.5”W x 5.7”D x 1.6”H
• Weight: 2.6lbs (1.2kg)

Further Information

AudioControl DM-810 - Premium DSP Matrix Processor - Data Sheet

AudioControl DM-810 - Premium DSP Matrix Processor - User Manual
