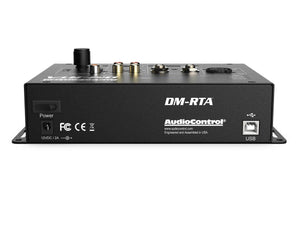

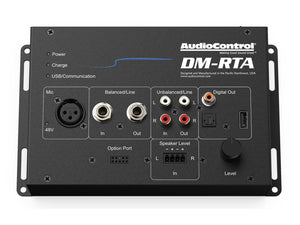

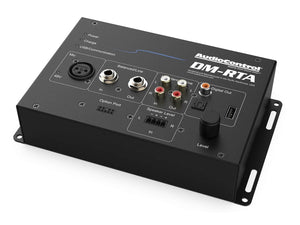

AudioControl DM-RTA - Real Time Analyzer - Multi Test Tool
£950.00
In StockIn StockOut of StockVAT included.
Shipping calculated at checkout.
Building from a legacy of trusted professional audio measurement products, the AudioControl DM-RTA Real Time Analyzer brings the vital tools you rely on to one indispensable interface. Populated with every connector we could think of, and coupled with the new DM-RTA app, AudioControl’s DM-RTA helps you take your car audio, marine audio or home theater installations to new levels of perfection and control.
Features
- Test and Measure Any Signal
- Balanced Line Level Inputs and Outputs
- Unbalanced Line Level Inputs and Outputs
- Speaker Level Inputs (handles up to 400 watts)
- Microphone Input with 48V Phantom Power (microphone sold separately)
- Microphone presets (for CM-10, CM-20 & C550H)
- Digital and USB Outputs
- Connect to PC/Mac, Phone or Tablet
- Option Port for Bluetooth Connectivity
- Battery Powered and Compact for Portability
Technical Specifications
Inputs
- 1 x Balanced (Input Impedance 3.24kΩ)
- 1 x Unbalanced (Input Impedance 3.24kΩ)
- 1 x Microphone (Input Impedance 10kΩ)
- 1 x Speaker Level (Input Impedance 16.24kΩ)
- Max Low Level Input Voltage: 8 Vrms
- Max High Level Input Voltage: 40 Vrms
Outputs
- 1 x Balanced (Output Impedance: 51Ω)
- 1 x Unbalanced (Output Impedance: 51Ω)
- 1 x Coax Digital (Output Impedance: 75Ω)
- 1 x Toslink
- 1 x USB
- Max Output Voltage from Signal Generator: 5 Vrms / 7 V Peak
General
- Power Supply:
- Battery Life: ~5 Hours
Weights & Dimensions
- Dimensions: 8”W x 4.8”D x 2.4”H
- Weight: 2.6lbs (1.2kg)
