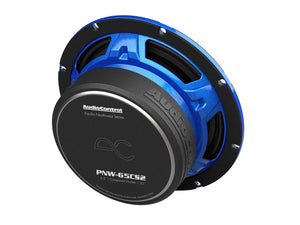

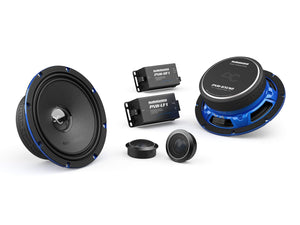

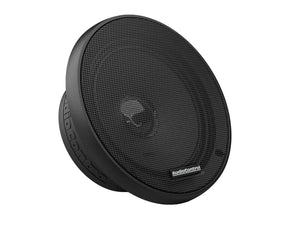

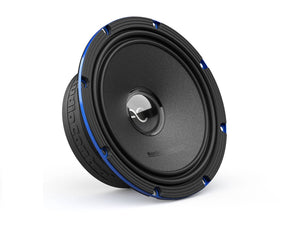

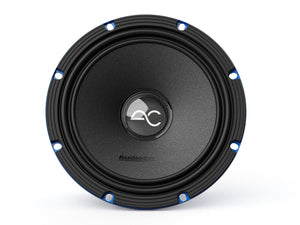

The AudioControl PNW-65CS2 - 6.5 Inch Component Speakers are part of the first line of Car Audio specific speakers from AudioControl. Experience the vibrant landscapes of the Pacific Northwest through your music when you combine AudioControl’s legendary amplifiers with the new PNW series of speakers.
The PNW line features an edge-enhanced steel frame for ultimate structural strength, a black anodised voice coil former for superior heat dissipation, and a linear double-roll surround for precise cone movement. Plus, the rigid poly mica-coated cone optimises sound reproduction.
Product Features

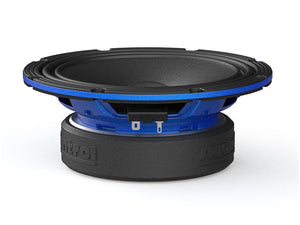

- Edge-enhanced steel frame for added structural strength
- Black anodised voice coil former for superior heat dissipation
- Linear double-roll surround for precision cone movement
- Complex FEA-designed high-efficiency motor
- Rigid poly mica-coated cone for optimised sound reproduction

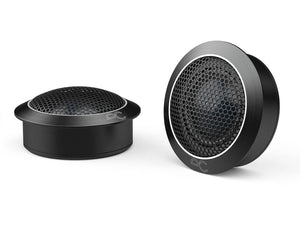

- Rear dampened hybrid silk dome tweeter for extended frequency response
- High-quality mounting hardware included
Technical Specifications

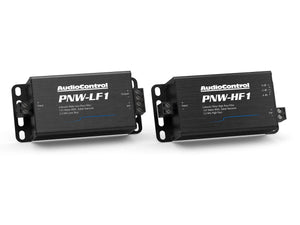

- Crossover Type: 2nd Order LinkWitz-Riley
- DC Resistance (Re): 2.3 ohms
- Filter Type: HP / LP
- System Frequency Response: 60-20K Hz
- XO Frequency: 3.5kHz HP / LP
- Slope (Octave): -12 dB
- Tweeter Voice Coil Diameter: 20mm
- Midrange Voice Coil Diameter: 35mm
