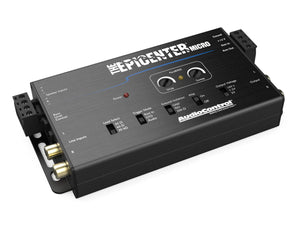

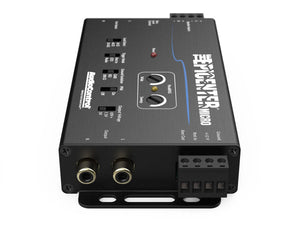

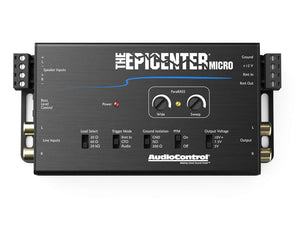

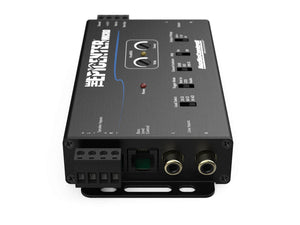

AudioControl The Epicenter Micro - Bass Restoration Processor
£389.00
In StockIn StockOut of StockVAT included.
Shipping calculated at checkout.
Order in the next for delivery by
hoursminutes
The AudioControl Epicenter Micro combines AudioControl’s legendary digital bass restoration with world-renowned OEM integration capabilities. Featuring a speaker-level input stage with selectable impedance loads, as well as traditional line-level inputs, The Epicenter Micro brings out the best bass in any system.
Trigger modes include traditional +12V remote in, GTO™ Signal Sense, and Audio Sense. The PFM Subsonic Filter can be bypassed for the truly dedicated, and the 10V+ output voltage setting beckons only the bravest among us.
Use the included ACR-4 remote to independently adjust bass restoration and output level.
Product Features
- Patented Digital Bass Restoration
- ParaBASS® Bass Shaping
- Speaker and Line Level Inputs
- Load Matching Circuit
- Multiple Trigger Modes
- ACR-4 Dual Knob Dash Mount Control Included
- Conformally Coated PCB for Increased Resistance to the Elements

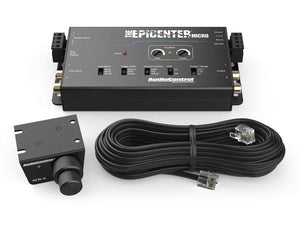

What's in the Box?
- The Epicenter Micro
- ACR-4 Remote
- 20ft Phone Cable
- Speaker and Power Connectors
- Manual
- Warranty
Technical Specifications
Inputs
- Speaker Level Input: 1 (2 Channels)
- Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ Setting)
- Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
- Line Level Input: (2 Channels)
- Line Level Input Impedance: 7kΩ
Outputs
- Preamp Outputs: 1 (2 channels)
- Maximum Output Level: 9.5 Vrms / 13V Peak
- Output Impedance: 150Ω
Performance
- Total Harmonic Distortion: 0.03%
- Frequency Response: 10Hz-22kHz ±1 dB
- Signal to Noise: >105dB
Control
- Remote In / GTO Signal Sense / Audio Sense
- 12VDC Remote Out (always active when unit is on)
General
- Current Draw: 300mA
- Recommended Fuse Rating: 1A
Weights & Dimensions
- Dimensions: 5.9″ W x 3″ D x 1″ H
- Weight: 0.6 lbs (0.27 kg)
