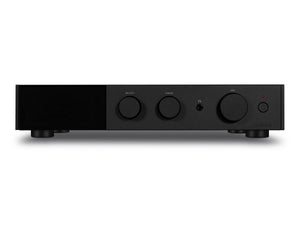

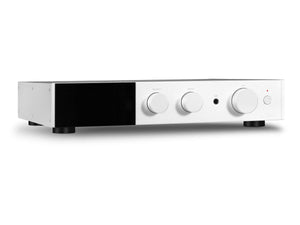

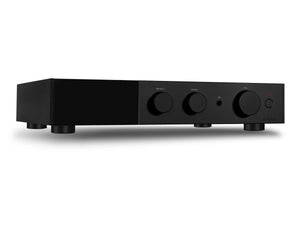

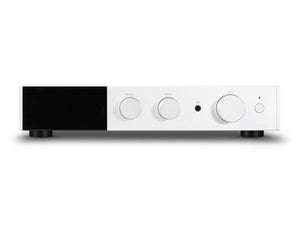

AudioLab 9000A - Integrated Amplifier

£1,999.00

In StockIn StockOut of Stock
VAT included. Shipping calculated at checkout.

Colour: Black

  • Black
  • Silver
Back In Stock on - [19041994]
Out of Stock

visamastermaestroamerican expresspaypalapple paygoogle payshopify payklarna
Trustpilot Image

Audiolab's new 9000 Series represents a new standard in home audio for the connoisseur. The AudioLab 9000A is the centre of the Audiolab focus in being the beating heart of any high-performance audio system. It's more powerful, capable and feature-packed than any of the preceding models - the most advanced Audiolab integrated amplifier yet.

Versatility is key to Audiolab’s integrated amplifier appeal, and the 9000A offers to cater audiophiles of all creeds. Loaded with digital and analogue source connection, wireless connectivity for portable devices, an all-new phono stage to cater for vinyl playback and the usual, class-leading amplification for loudspeakers and headphones.

Key Features

  • Full DAC (ESS 9038Pro) and preamp facilities
  • High-performance phono preamp
  • Analogue and digital source connectivity
  • Bluetooth aptX, aptX HD, LDAC receiver
  • Powerful stereo amplification
  • Dedicated headphone amplifier
  • 800 x 480mm WVGA full view IPS LCD Screen

Inputs of the 9000A

  • x3 Unbalanced Analogue Input Pairs (AUX1, 2 & 3)
  • x1 Unbalanced Analogue Power-Amp Input Pair
  • x1 Balanced Analogue Input Pair
  • x1 Coaxial SPDIF Digital Input Pair
  • x1 Optical SPDIF Digital Input Pair
  • x1 12V Trigger Input
  • x1 RCA MM Phono Input
  • Bluetooth 5.0 (aptX / aptX HD / LDAC) Input
  • USB 2.0 port for replaying stereo from a compatible host

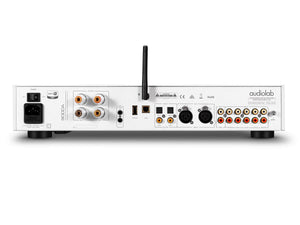

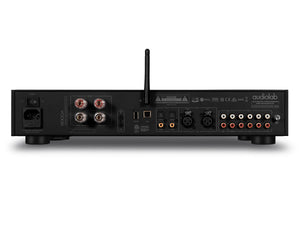

Outputs of the 9000A

  • Pre-amplifier Output
  • Loudspeaker Output
  • Headphone Output
  • 12V Trigger Output

What's in the Box?

  • The AudioLab 9000A
  • x1 IEC Power Cable Suitable for your area

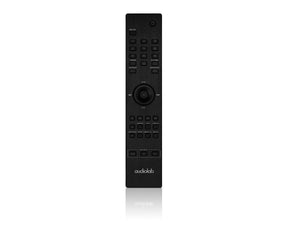

  • x1 Remote Handset
  • x1 Instruction Manual

Technical Specifications

Pre-Amplifier Section

Gain (Max.) +6dB (Line), +53dB (Phono MM)
Input Sensitivity 1Vrms (Line, Volume = 0dB)
2Vrms (XLR, Volume - 0dB)
4.4mV (Phono MM, Volume = 0dB)
Input Impedance 10K (Line); 47K // 100pF (Phono MM)
Total Harmonic Distortion (THD) < 0.0004% (1kHz @ 2V, Volume = 0dB)
Frequency Response 20Hz - 20khz (+/- 0.1 dB)
Output Voltage 2.3V max. (Volume = 0dB)
Output Impedance 120 ohms
Signal-to-Noise Ratio > 110dB (Line & XLR, A-Weighted); > 80dB (Phono MM, A-Weighted)

DAC

D to A Converter ES9038Pro
Total Harmonic Sistortion (THD) < 0.001% (1kHz @ 0dBFS)
Output Level (0dBFS, 1kHz) 2.1Vrms
Max Sampling Frequency Optical, Coaxial: 192kHz; PC USB: PCM768kHz, DSD512
Signal-to-Noise-Ratio > 117dB (A-weighted)

Power Amplifier Section

Gain +29dB
Rated Power Output 2 x 100W (8 ohms, THD<1%)
2 x 160W (4 ohms, THD<1%)
Frequency Response 20Hz - 20kHz (+/- 0.3dB)
Total Harmonic Distortion (THD) <0.002% (1kHz @ 50W // 8 ohms)
Input Sensitivity 1Vrms
Signal-to-Noise Ratio (S/N) < 110dB (A-Weighted)
Max. Output Current 15A

Headphone Amplifier

Total Harmonic Distortion (THD) < 0.01% (1kHz, 50mW)
Output Impedance 2.35 Ohms
Load Impedance 20 - 600 ohms

General

Standby Power Consumption <0.5W
Net Weight 8.4kg
Gross Weight 10.2kg
Dimensions (W x H x D) 444 x 342 x 89mm
Finish Black / Silver
Power Requirements 220 - 240V ~ 50 / 60Hz
Standard Accessories Power Cable, Remote Control, User Manual, Antennas etc

Further Information

AudioLab 9000A - User Manual (PDF)
