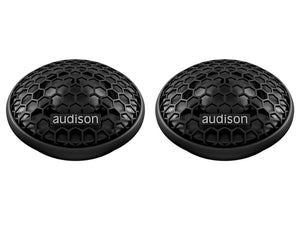

The Audison Prima AP 1 tweeters feature a 26 mm diameter emission diaphragm, an acoustic lens designed to compensate for the frequency response within the 10kHz – 13kHz range, a Neodymium REN magnet and extremely small sized dedicated passive crossover.
Audison Prima AP1 Tweeters - Features
- Neodymium magnet with low carbon content plates, provides reduced size and more linear sound reproduction, even during the most demanding audio passages.
- Acoustic lens designed to compensate for and fine tune the in-car frequency response anomalies in the 10 kHz - 13 kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.

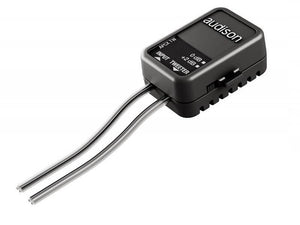

- Extremely compact dedicated passive crossover APCX TW supplied with the product, optimised for OEM Integration, featuring an attenuation switch (0 dB, +2 dB) to tune the in-car response according to different installation conditions.
- Passive crossovers are supplied with “OEM Integration compliant” fast-on connectors. The ends, different in each of the two poles, eliminate any possible connection errors and speed up the required installation time.

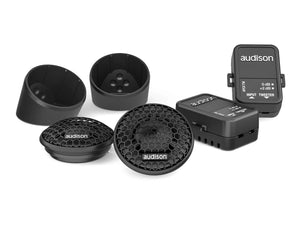

- Wide array of mounting accessories supplied with the product, for high fitment flexibility in OEM Integration.
- CCAW (Copper Clad Aluminium Wire) ultra-light ferrofluid cooled voice coil is wound on a Kapton former, for better heat dissipation.

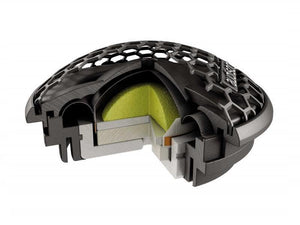

- Dome profile and motor are optimised with FEM (Finite Element Method) simulation technology.
- Developed with the KLIPPEL suite.
Technical Specifications
- Comp - Tweeter
- Size - 26 mm (1″)
- Power Handling - Hi-pass filtered 3.5 kHz @ 12 dB Oct. 150 W Peak Power
- Impedance - 4 Ω
- Frequency Response - 2k ÷ 20k Hz
- Sensitivity - 93 dB/Spl
- Magnet - Neodymium
- Dome - Tetolon fibre
