Audison Prima AP 1P - 29mm Tweeters


In StockIn StockOut of Stock
VAT included.

Quantity: Tweeter Pair

  • Tweeter Pair
Back In Stock on - [19041994]
Out of Stock
Order within for delivery by hoursminutes

apple paygoogle payklarna-pay-latermaestromasterpaypalshopify payvisa
Trustpilot Image

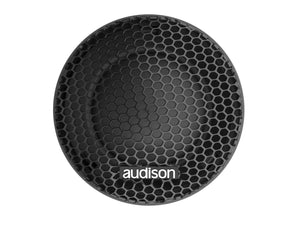

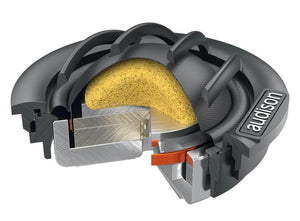

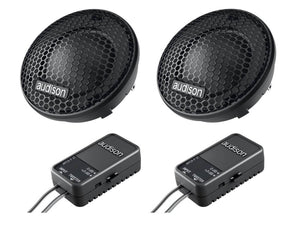

The Audison Prima AP 1P Tweeter uses AIF technology (Any Install Faceplate) to provide the installer with 3 different faceplates for application versatility and a significant reduction in installation time. The double Neodymium tablet used in the motor provides an excellent extension in high frequency and together with the 1” CCAW voice coil ensures an outstanding dynamic response.

AIF Technology

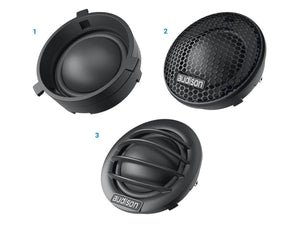

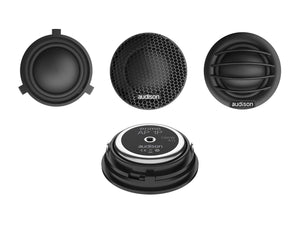

To support OEM integration, AIF Technology provides the specialist with three different types of faceplates:

  • OEM, for an easy and correct factory placement
  • Mesh grille: to obtain the best compromise between protection and performance with a-pillar installations
  • Spoke grille: for maximum acoustic performance with a-pillar installations

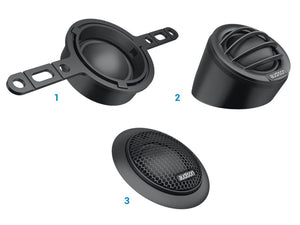

Thanks to the AIF, the AP 1P tweeter expresses its full potential in every application scenario. It is supplied with four mounting accessories that make the AP 1P install a breeze:

  • Watch band
  • Double-angle cup
  • Flush Mounting Ring
  • Metal mounting spring

    Technical Specification

    • Size: 29 mm (1.14″)
    • Power Handling: Hi-pass filtered 2.5 kHz @ 12 dB Oct. 150 W Peak Power
    • Impedance: 8 Ω
    • Frequency Response: 1.2 kHz - 25 kHz
    • Crossover Name: APCX P 2T
    • Crossover Type: High Pass, 4kHz, 12 dB/oct
    • Crossover Adjustment: Tweeter Level: 0 / +3 dB
    • Sensitivity: 92 dB/Spl
    • Magnet: Neodymium
    • Tweeter Voice Coil Ø: 25 mm (1″)
    • Dome: Tetolon fibre

    Further Information

    Audison Prima AP 1P - Tech Sheet

    Audison Prima Speakers - User Manual
