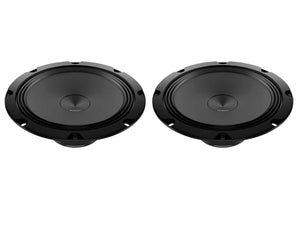

Audison Prima AP 8 - 8 Inch Woofers

£159.99

In Stock

Quantity: Speaker Pair

  • Speaker Pair
Free Shipping Over £100 to United Kingdom

Product Details

For vehicles equipped with an 8 inch woofer as standard OEM component, the Audison Technical Department developed the Audison Prima AP 8 Woofer which, also thanks to the wide emission surface, provides higher energy in the low frequency range, ensuring excellent performance when the use of a subwoofer is prohibited due to space limitations.

Features

  • Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
  • No passive crossover required to maximize efficiency: dome profile optimised with Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.
  • Reduced mounting depth, providing ease of installation in OEM placements.
  • TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
  • Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.

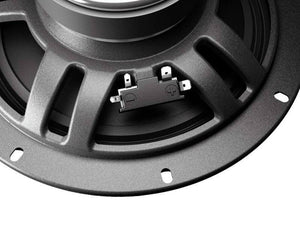

  • High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
  • Developed with the KLIPPEL suite.

Technical Specifications

  • Comp - Woofer
  • Size - 200 mm (8″)
  • Power Handling - 100 W Continuous Power, 300 W Peak Power
  • Impedance - 4 Ω
  • Frequency Response - 35 ÷ 3k Hz
  • Sensitivity - 93,5 dB/Spl
  • Magnet - High density flux ferrite
  • Dome - Water-repellent pressed paper

Further Information

Audison Prima AP8 - Tech Sheet with Frequency Response Graph

Audison Prima Speakers - User Manual
