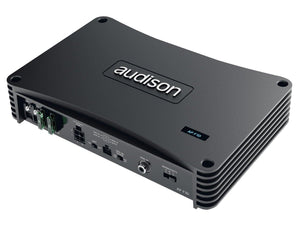

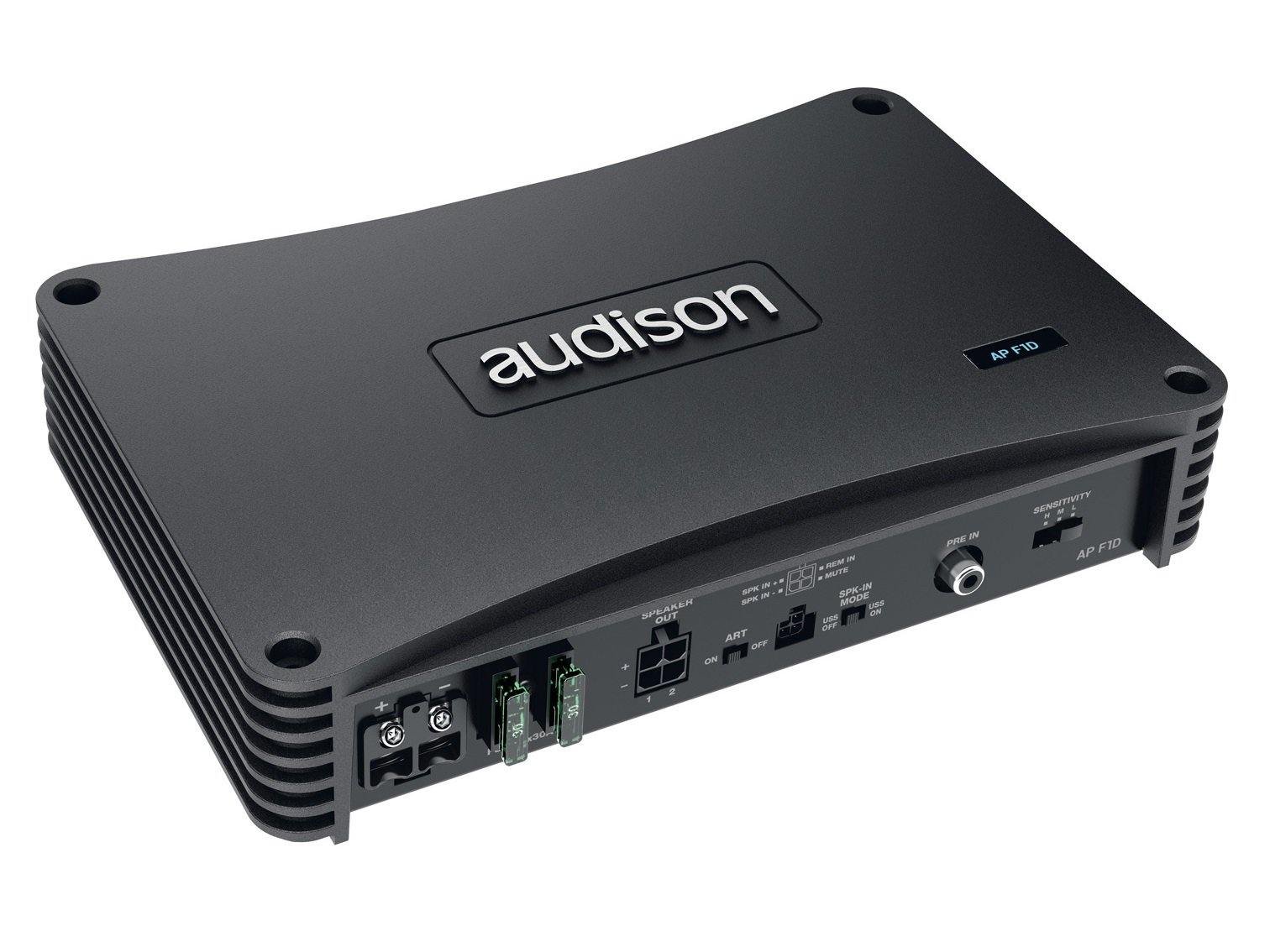

Audison Prima AP F1D - Mono Amplifier

£599.99

In StockIn StockOut of Stock
VAT included.
Out of Stock

apple paygoogle payklarna-pay-latermaestromasterpaypalshopify payvisa

The Audison Prima AP F1D Mono Amplifier has been designed to drive the most demanding subwoofer and has been designed to pair with the super versatile Audison AP F8.9 bit.

Coming in at a stable 1 Ohm it can supply up to 1000 W of power and has an impressive compact design to be able to hide in the car.

Technical Specifications

POWER SUPPLY
Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 30A
Operating power supply voltage: 6.5 ÷ 17 VDC
Idling current: 1.3 A
Idling current when off: 0.05 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power: 50 A
Remote IN: 6.5 ÷ 15 VDC (1 mA)
ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable): 2 ÷ 7 VDC
AMPLIFIER STAGE
Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power: 0.1%
Damping factor @ 100 Hz, 4Ω, 2 VRMS: 140
Bandwidth @ -3 dB: 10 Hz ÷ 500 Hz
S/N ratio (A weighted @ 1 V Input): 110 dBA
Input sensitivity Pre-In: Selectable: 0.6 - 2.0 - 6.0 VRMS
Input sensitivity Speaker-In: Selectable: 2.0 - 6.5 - 20 VRMS
Minimum load impedance:
OUTPUT POWER (RMS) @14.4 VDC, 1% THD:
1Ch @ 4Ω: 500 W x 1
1Ch @ 2Ω: 800 W x 1
1Ch @ 1Ω: 1000 W x 1

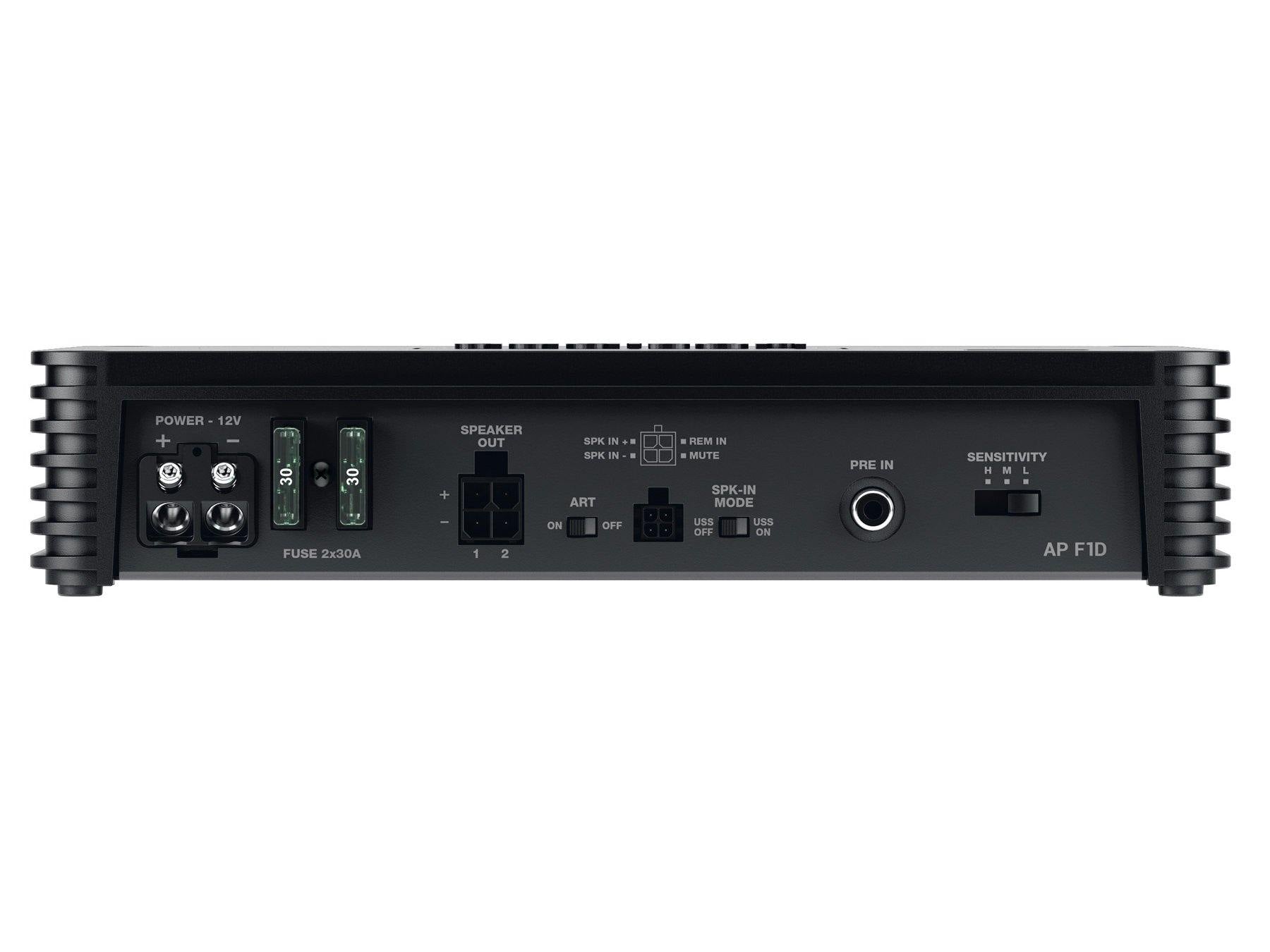

INPUTS
Pre-In Inputs: RCA
Speaker-In Inputs: Wired
Mute (Energy Saving control): Wired (active to groung)
SIZE
Max size W x H x D (mm): 238 x 49.5 x 155
Weight (kg/lbs): 1.92 / 4.23

Further Information

Audison Prima AP F1D - Mono Amplifier - Tech Sheet

Audison Prima AP F1D - Mono Amplifier - User Manual
