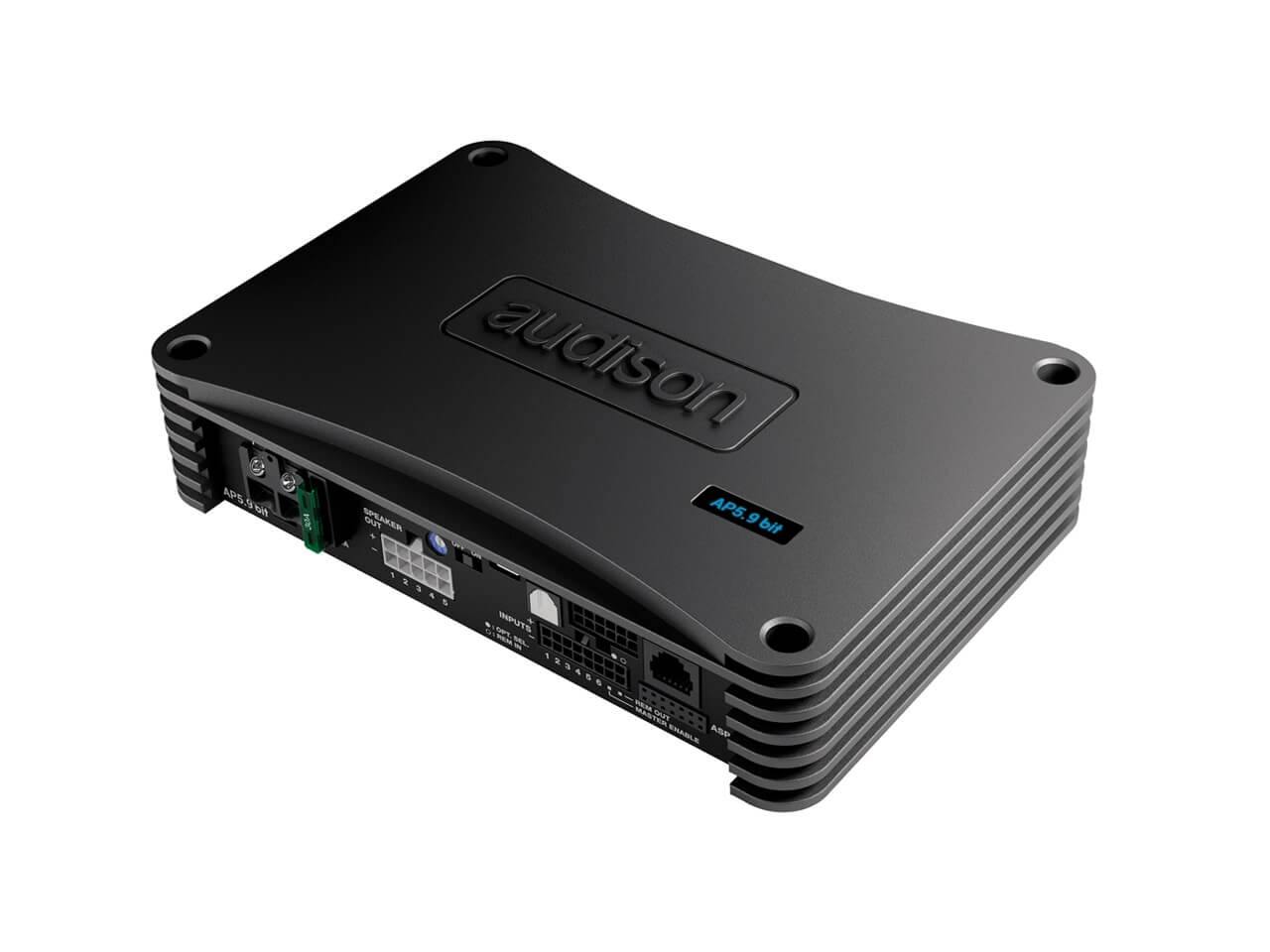

The Audison Prima AP5.9 bit amplifier is ideal to realize a two way front full active plus subwoofer system using the fifth mono channel with 270 W @ 2 Ω. The built-in processor with 9 output channels that this amplifier shares with the Prima AP8.9 bit, provides the ability to assign the pre-outs to the Prima AP4 D amplifier, creating a very powerful system in a small space thanks to the optional stacking system.
Power Output
- 4 Ohms - 5 Channels @ 20 W x 2 + 50 W x 2 + 150 W x 1
- 2 Ohms - 5 Channels @ 40 W x 2 + 90 W x 2 + 270 W x 1
Features
- Full DA - Full Digital Audio - Pure digital signal transfer with a resolution up to 24 bit / 48 kHz.
- BIT DRIVE - Auto tuning by Audison bit Tune and communication with bit Drive portal.
- DE-EQ - De Equalization - De-equalization function to “flatten” any equalization applied by default by OEM sources.
- DCC - Direct Current Cockpit - To speed-up installation time preserving safety and reliability, the Audison R&D team equipped the AP bit amplifiers with DCC, an innovative management circuit which monitors the power supply current consumption in real-time. This solution provides the ability to connect the amplifier to the cockpit directly without reaching the battery.
What's in the Box
- AP5.9 bit amplifier
- Multipolar cable, Inputs/Rem
- Multipolar cable, Speakers out
- Multipolar cable, DSP out
- NR. 1 - 30A replacement fuse
- 1.8 m USB cable
- 2.5 mm hex key
- NR. 4 - 4.2 x 50 mm self-tapping, cross head mounting screws
- CD ROM containing: AP5.9 bit Software, Owner’s manual, Audio Test Tracks
- Quick start guide & Warranty
Further Information
Audison Prima AP5.9 bit - Tech Sheet
Audison Prima AP5.9 bit - User Manual
