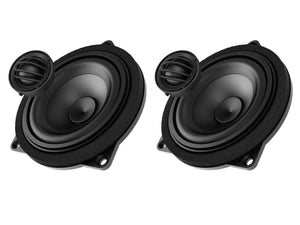

Audison Prima APBMW K4E - 2 Way System for BMW

£279.99

In StockIn StockOut of Stock
VAT included.

Quantity: Left & Right Pair

  • Left & Right Pair
Back In Stock on - [19041994]
Out of Stock
Order within for delivery by hoursminutes

visamastermaestroamerican expresspaypalapple paygoogle payshopify payklarna
Trustpilot Image

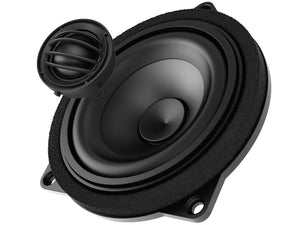

The two-way Audison Prima APBMW K4E kit creates a three-dimensional sound stage and give the musical message the essential timbre accuracy.

The 100 mm (4″) midrange is provided with a water-repellent pressed-paper cone, a material providing natural sound. It features a low resonance frequency that allows hi-pass cut-off in the 150-200 Hz range for an excellent mid-low reproduction.

The 25 mm coil and Tetolon dome tweeter features a great extension on both medium and high frequencies and is optimized for off-axis output, for an extended sound stage in the three dimensions, that amplifies the perception of reality in the car cabin.

Audison Prima APBMW K4E - Product Features

  • Neodymium Magnetic group to maximize performance while minimizing bulk and weight.
  • 25 mm (1") fiberglass woofer voice coil for high power dissipation and stiffness.
  • Waterproof pressed-paper cone for medium natural frequencies free from any plastic resonance.
  • Aluminium die-cast basket with Plug & Play connectors.
  • 30 cm extension provided featuring Plug & Play connectors, for high flexibility of installation.
  • Damping removable motor cover
  • Specially developed for the upgrade of BMW-Mini featuring factory 2 way systems to create an extended sound stage in the three dimensions, amplifying the perception of reality in the car cabin.
  • 25 mm Tetolon coil tweeter with dispersion characteristics optimized with FEM simulations.
  • Tweeter support supplied for Plug&Play OEM placements.
  • Crossover equipped with high quality components with Plug & Play connections.

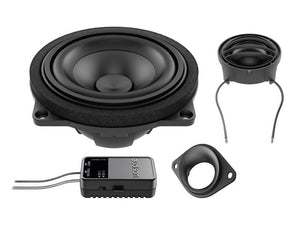

What's in the Box?

  • x2 AP BMW M4E - Woofers
  • x2 AP BMW T1 - Tweeters
  • x2 AP BMW CXTM 1 - Crossovers
  • x2 Flange
  • x2 EVA Adhesive Tape
  • x2 Cable Ties
  • x2 Extension Cables

Technical Specifications

  • Component - 2-way System
  • Woofer Size - 100mm (4")
  • Tweeter Size - 29mm (1.1")
  • Power Handling - 100W peak, 50W continuous
  • Impedance - 4 Ω
  • Frequency Response - 90 ÷ 23kHz
  • Sensitivity - 89Hz
  • Crossover Type - Hi-Pass: 6 KHz @ 6dB/Oct.
  • Component adjustment - -3; 0dB
  • Woofer Magnet size D x d x h - 50mm x 29mm x 3mm, (1.97" x 1.14" x 0.12")
  • Tweeter Magnet size D x d x h - 24,5mm x 4mm, (0.96" x 0.16")
  • Weight of one Speaker - Woofer 0,426Kg (0.94lbs), Tweeter 0,06Kg (0.13lbs)
  • Voice Coil Ø - Woofer 25mm (1"), Tweeter 25mm (1")

Further Information

Audison APBMW K4E - Product Info & Car Compatibility

Audison APBMW K4E - Tech Sheet

Audison APBMW K4E - User Manual
