Audison Prima APBMW X4M - Coaxial Speakers for BMW


In StockIn StockOut of Stock
VAT included.

Quantity: Left & Right Pair

  • Left & Right Pair
Back In Stock on - [19041994]
Out of Stock
Order within for delivery by hoursminutes

apple paygoogle payklarna-pay-latermaestromasterpaypalshopify payvisa

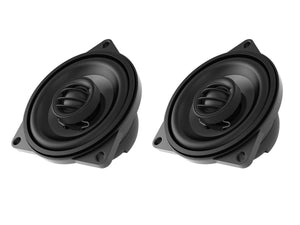

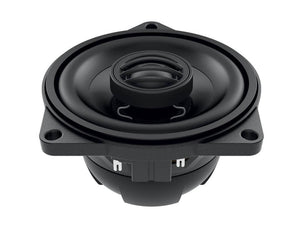

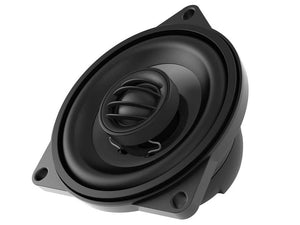

The Audison Prima APBMW X coaxials have been designed for BMW-MINI models that do not allow the installation of a two-way system on the front or the upgrade of the rear system.

The 100 mm (4″) Prima APBMW X4M, with basket and fixing screws dedicated to the specific car model, feature a water-repellent pressed-paper cone for natural and colour-free mid-range frequencies.

The 20 mm coil and Tetolon dome tweeter, a material boasting lightness and damping properties, offers optimised dispersion features for OEM placement, elevating the sound stage to a realistic level.


450 cm long
The cable is 450 cm long to reach the vehicle boot, where the Audison Prima AP bit amplifier is installed

For BMW-Mini models with basic Sound System
Specially developed for BMW-Mini models that do not allow the installation of a two-way system on the front or for rear seat upgrade.

Neodymium Magnetic group
To maximize performance while minimizing bulk and weight.

25 mm (1") fiberglass woofer voice coil
For high power dissipation and stiffness.

Waterproof pressed-paper cone
For medium natural frequencies free from any plastic resonance.

20 mm (0.8") Tetolon coil tweeter
Dispersion optimized with FEM simulations.

Aluminium die-cast basket
With Plug & Play connectors.

30 cm extension provided
Featuring Plug & Play connectors, for high flexibility of installation.

Damping removable motor cover

Technical Specifications

  • Component - Coax
  • Midrange size - 100mm (4")
  • Tweeter diaphragm - 24mm (0.9")
  • Power Handling - 80W peak, 40W continuos
  • Impedance - 4Ω
  • Frequency Response - 100 ÷ 22kHz
  • Magnet size D x d x h - 50mm (1.97") x 29mm (1.14") x 3mm (0.12")
  • Weight of one speaker - 0.5 Kg (1.1 lb)
  • Woofer Voice Coil Ø - 25mm (1")
  • Tweeter Voice Coil Ø - 20mm (0.8")

Further Information

Audison Prima APBMW X4M - Tech Sheet

Audison Prima APBMW X4M - User Manual

Audison Prima APBMW - Compatibility List
