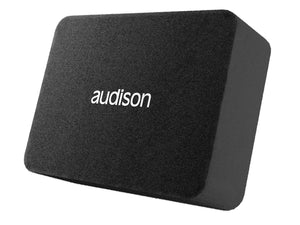

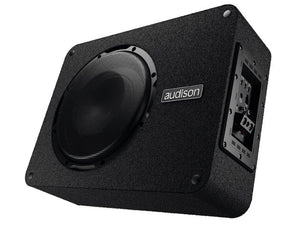

Audison Prima APBX 10 AS2 - Active Subwoofer Box

The Audison Prima APBX 10 AS2 active subwoofer, with a 10-inch driver, features a dedicated high performance amplification module which enhances all the passive box technologies, such as the 2S² (2 Sides / 2 Sounds) design, the Plug & Play terminal block and ultra-compact size.

The amplification module, with power outputs of 400W RMS is developed with he-li technology (high efficiency / low impedance), which thanks to the absence of the DC-DC voltage booster reaches the impressive 90% efficiency level, very close to the theoretical limit of the D-Class.

Eliminating the voltage booster was made possible thanks to the development of the new dual coil drivers, which inherit all the technological background of the Prima subwoofers, but differ for the ultra low impedance (0.16 ohms for APBX 10 AS).

This feature ensures a perfect synergy with the he-li (High Efficiency Low Impedance) technology, maximizing the combination of amplifier, speakers and sealed box, to obtain low, powerful and crisp frequencies.

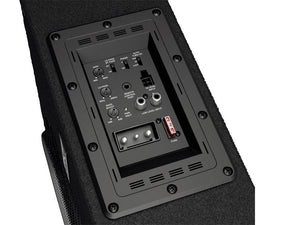

The controls section is complete and provides an optimal regulation of the low frequency emission in the car cabin. The Butterworth low pass filter at 12dB/Oct. with variable cut-off frequency (50-200 Hz) can be bypassed, when used with an AP bit processor with pre-out output dedicated to the sub. The adjustable bass-boost control (0 ÷ 6 dB) at 45 Hz allows the user to emphasize the response in the lower side of the spectrum.

The high-level speaker-in input on multi-pole connector eases the integration with OEM audio systems while the low-level input on RCA is dedicated to the connection with after market sources. The subwoofer automatic turn on/off function ART (Automatic Remote Turn-On) can be configured to be controlled by the source’s remote signal, by the voltage variation on the high-level input or by the audio signal on both inputs. Phase control (0 – 180 °) completes the equipment.

The SSP (Sub Smart Plug) terminal block is provided with a single Plug & Play connector to be able to disconnect the box easily and safely.

What's in the Box?

• APBX 10 AS2 Subwoofer Box

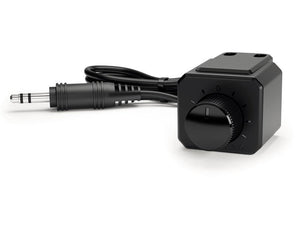

• HRC AP Remote Control
• Hi-Level Cable
• Hex Key
• Terminal Block
• 30A Fuse

Audison APBX 10 AS2 - Product Features

• He-Li technology - High efficiency / Low impedance amplifier without switching power supply, for a performance next to ideal.
• 2S² (2 Sides / 2 Sounds) design - Provides the ability to select between Down-Firing positioning to increase the low frequency extension and Up-Firing install to obtain more punch and definition.
• SSP (Sub Smart Plug) terminal block - Provided with a Plug & Play connector to be able to disconnect the box easily and safely.

Technical Specifications

• Subwoofer size - 250mm (10")
• Subwoofer Voice coil Ø - 60mm (2.36")
• Output power (RMS) - 400 W Continuous Power, 800 W Peak Power
• Impedance - 0.16 Ω
• Distortion THD - 0.5%
• Frequency Range - 30Hz - 300Hz
• Bass Boost - 0 ÷ 6 dB @ 45 Hz
• Sub box size - 440mm (17.32") x 158mm (6.22") x 334mm (13.15")
• Magnet - High density flux ferrite
• Cone - Water-repellent pressed paper
• Weight of one component - 9.4 Kg (29.72")

Further Information

Audison Prima APBX 10 AS2 - Tech Sheet

Audison Prima APBX 10 AS2- User Manual

Builds featuring the Audison Prima APBX 10 AS2 Sub Box
