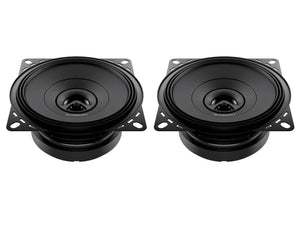

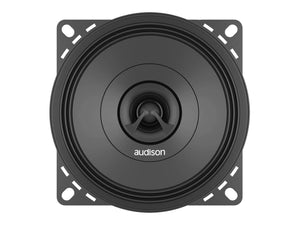

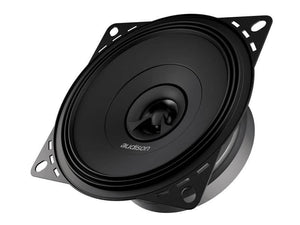

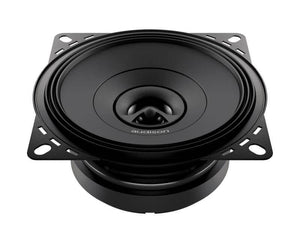

The Audison Prima APX 4 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter.
The 4″ cones surround features the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
- Tweeter features an acoustic lens specifically designed to ensure an extremely linear frequency response, even in off-axis placement, typical of in-door installations.
- 32 mm pure copper voice coil, for high power handling and outstanding low frequency control
- Overall mounting depth optimized for OEM Integration thanks to the concentric tweeter and the low profile basket
- Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
- TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
- Compact basket, protected by abrasion-resistant and scratchproof coating, the motor affixed with damping epoxy adhesive.
- High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
- Developed with the KLIPPEL suite.
- Component - 2-way Coaxial
- Size - Woofer 100mm (4"), Tweeter 24mm (0.9")
- Power Handling - 120W peak, 40W continuous
- Impedance - 4Ω
- Frequency Response - 80 ÷ 23kHz
- Magnet size - 75mm x 40mm x 10mm, (2.95" x 1.57" x 0.4")
- Weight of one speaker - 0.49kg (1.08 lb)
- Woofer Voice Coil Ø - 32mm (1.26")
- Tweeter Voice Coil Ø - 15mm (0.6")
