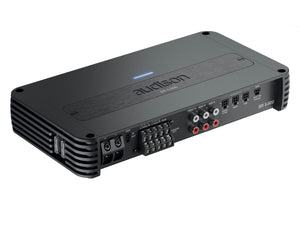

Audison SR5.600 - 5 Channel Amplifier

The Audison design team, headquartered in the Potenza Picena (Italy), spent a long time planning and perfecting the new SR line, taking full advantage of the features that the most recent amplification devices available today are equipped with. After numerous listening tests in a double-blind configuration on a significant sample of professionals and enthusiasts, the R&D team decided to adopt a new D-class technology called ADT (Audison D-Class Technology) for the whole range, which made it possible to reduce the size of the amplifiers considerably, totally preserving the audio performance that characterize each Audison project.

Edgeless Design

As for the electronics design, the Audison style center has taken care of every aesthetic and functional detail, obtaining a compact amplifier made of extruded aluminium with rounded corners that ease the installation of the product in narrow spaces. Thanks to the generous heat sinks on the two short sides of the amplifiers, internal cooling fans are not necessary, which are often cause of noise and dust accumulation.

Complete Controls on the Upper Panel

As per tradition, the SR amplifiers confirm their vocation for versatility by including on all models a complete filter section, suitable for any type of audio system configuration. The controls, protected by a satin-finish aluminium panel, are located on the amplifier upper panel, to be easily reached from above even after the product has been installed. When the system includes an Audison bit processor, the filter section can be totally excluded.

Thanks to the integration of Audison USS technology (Universal Speaker Simulator) in the high-level inputs, the SR amplifiers can also be appropriately connected to OEM sources featuring the “speaker load detection” function that monitor the presence of a low-impedance load to enable audio outputs.

Limitless Connectivity

All models are equipped with high-level balanced inputs for connection to the OEM Head Unit speakers output and low RCA level for the after-market ones. When the high level input is used, the ART function (Automatic Remote Turn-On / Off) can be enabled to control the switching on of the amplifiers with the head unit switch-on button.

In addition, there is a remote IN / OUT socket to allow the control of multiple cascaded amplifiers switch on when required.

The SR 1.500, SR 4.300 and 4.500 models recreate the PRE-OUT signal by using the Speaker-IN input to interface it with OEM sources only equipped with amplified outputs, allowing the system expansion.

Power Output (RMS) @14.4 VDC, 1% THD

• 5 Channels - 75 Watts x 4 + 330 Watts x 1 @ (4Ω)
• 5 Channels - 115 Watts x 4 + 550 Watts x 1 @ (2Ω)
• 3 Channels - 230 Watts x 2 + 310 Watts x 1 @ (4Ω)
• 3 Channels - 230 Watts x 2 @ (4Ω) + 550 Watts x 1 @ (2Ω)

Audison SR5.600 - Product Features

• ADC (Audison D-Class) Technology 2Ω stable output stage ensuring high audio performance in a compact size.
• Extruded aluminum compact design with fanless convection cooling system.
• Built-in USS (Universal Speakers Simulator).
• Balanced high-noise rejection input speaker-In (for OEM head units) and RCA-In (for Aftermarket head units) inputs.
• ART (Automatic Remote Turn-On/Off) automatically turns on/off the amplifier when the OEM head-unit turns on/off (can be enabled/ disabled, with Speaker-In inputs).
• Pre-outs, also available when using Speaker-In level inputs.
• 5 ch/3 ch operation mode (selectable), to create a five-channel system (with sub), or a powerful sub + front three-channel system.
• Bass Boost (50 Hz) adjustable to 12 dB, to increase the subwoofer punch.
• Lo-Pass and Hi-Pass 12 dB adjustable (50 Hz to 3200 Hz) filters, providing the ability to build a front + rear system, a multichannel woofer + tweeter system or a powerful sub + front system.
• 24 dB continuous adjustable (50 to 500 Hz) Lo-Pass subwoofer filter.
• SUBSONIC filter (24 dB - 25 Hz), removes very low subsonic frequencies from music signal to avoid damages to the subwoofer.
• Optional VCR-S2 Remote Volume Control providing the ability to adjust subwoofer volume level from the dashboard.

What's in the Box

• SR5.600 Amplifier

• Remote IN/OUT Cable

• x3 - Speaker IN Cable

• 2.5mm Hex Key

• 2mm Hex Key
• Screwdriver
• x4 - 2 x 55mm Screws
• x2 - Fuse 25A
• User’s Manual & Warranty
