Some OEM sources/head-units have a test circuit that monitors the presence of a low-impedance load to enable audio outputs. When you connect this type of head-unit to the high-level inputs of an Audison bit processor, which has a high impedance load, audio outputs are silenced.

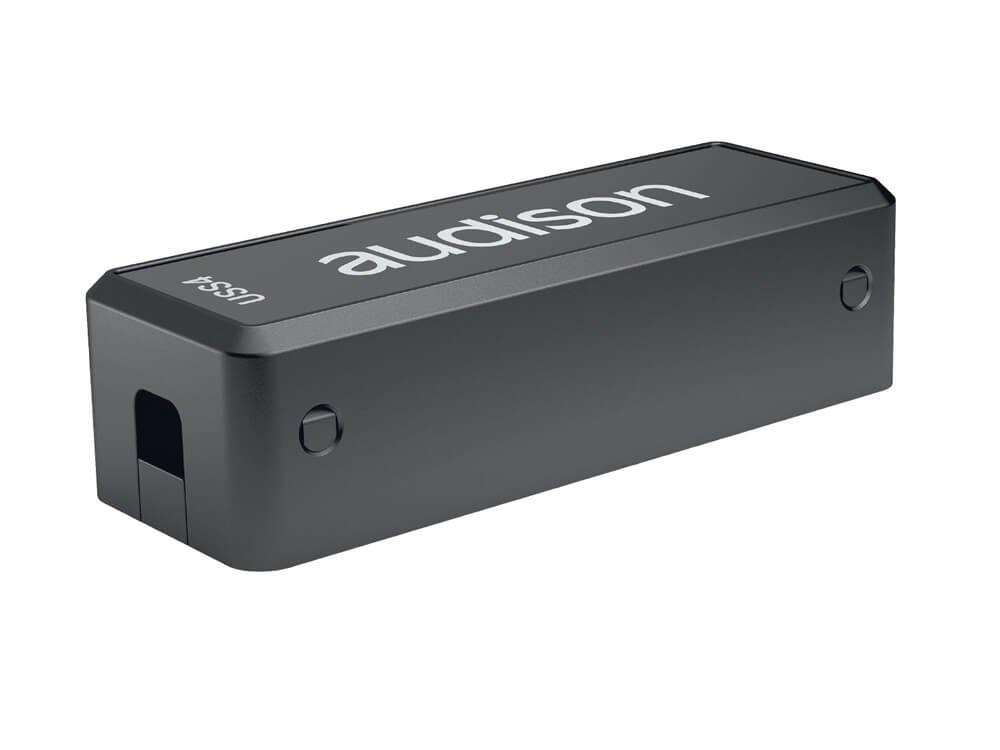

By inserting the USS4 between the source and the processor / amplifier, these problems are definitively solved. If there is a need to generate a remote signal to control the amplifier turn on/off, it is necessary to power* the USS4, providing the additional feature of the possibility to delay the signal from 1 to 8 seconds, so as to avoid annoying “bumps” upon ignition.
- Input/Output Channels - 4
- Input Power Max - 50 W
- Input Impedance - 12 Ω
- Output Impedance - 12 Ω
- Remote Out (only with 12 VDC Power Supply) - 12 VDC 150 mA
- Remote Out Delayed (only with 12 VDC Power Supply) - 12 VDC 150 mA; 1 to 8 sec.
- Weight - 90g / 0.19 lb
