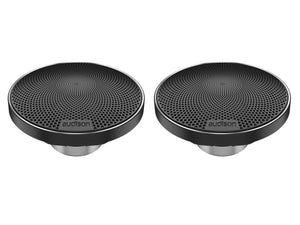

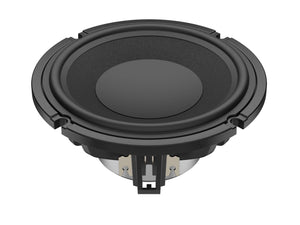

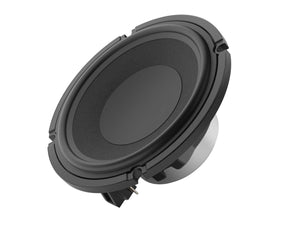

Audison VOCE II AV 3.0 II - Midrange Speakers

The Audison VOCE II AV 3.0 II mid-range speaker is meticulously crafted to deliver exceptional clarity and rich detail in the crucial mid-frequency range. Featuring a specialised cone made from pressed paper with cotton fibers, the AV 3.0 II offers an ideal balance of rigidity and responsiveness, enhancing sound reproduction for today’s car audio enthusiasts.

This mid-range unit integrates seamlessly into any system with its compact design and is equipped with OEM-style connectors, ensuring straightforward and versatile installation options.

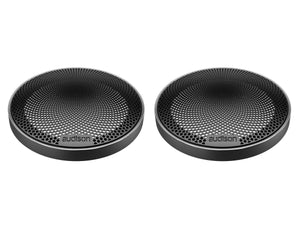

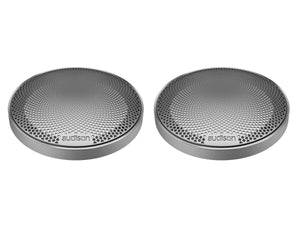

Voce AV 3.0 II Comes with Black Grilles as standard. Option for additional Silver Grilles available.

Product Features

• FEM-Designed Cone Geometry: Ensures uniform sound dispersion across all listening angles, optimising directivity and reducing irregularities for an impeccable listening experience.
• Oversized Neodymium Magnet: Provides exceptional thermal stability, ensuring consistent dynamic performance and optimal power reserve under all listening conditions.
• Magnetic Circuit Geometry Optimized with FEM: Maximises efficiency by focusing the magnetic field on the coil for more precise, dynamic sound and improved midrange response.
• Semi-Pressed Pulp Cone with Cotton Fibers: Combines rigidity and lightness for clean, undistorted midrange reproduction with a wide frequency response, enhancing sound clarity.
• Flat-Wire CCAR Voice Coil: The 1” (26 mm) CCAR (Copper-Clad Aluminum) voice coil optimises magnetic force and heat dissipation, allowing for high power handling and detailed midrange reproduction, even at high volumes.
• Installation Flexibility: Equipped with OEM-style connectors, offering maximum installation versatility.
• Low Inductance Design: Optimises upper midrange reproduction, enhancing the clarity of vocals and instruments, thanks to a copper shorting ring built-in motor.
• Die-Cast Aluminium Basket with Magnet Cover: Enhances heat dissipation and reduces turbulent airflows, ensuring maximum rigidity and high performance, even during prolonged use.
• High Excursion Butyl Rubber Surround and Optimised Spider: Designed with advanced simulations for greater control over cone movement, reducing distortion even during intense sound excursions.

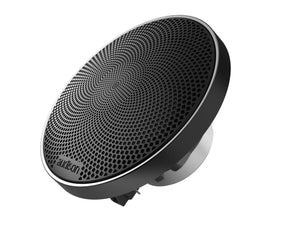

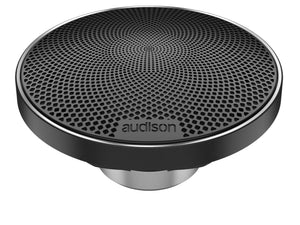

• Elegant Black Mesh Metal Grille Included: Provides robust protection without compromising acoustic performance, adding a touch of elegance to the installation for perfect integration into the cabin. Includes two adhesive Audison logo badges, which are provided, allowing for personalized placement to enhance branding and aesthetics.
• eID Technology: Provides product traceability from production to the final owner, ensuring authenticity and security at every stage.


What's in the Box?

• AV 3.0 II Mid-Range Speakers
• AVG 3.0 B II - Black Speaker Grilles
• Audison Badges
• Plug & Play Cable
• Fixing Kit

Technical Specifications

• Nominal Diameter: 70 mm
• Minimium Impedance: 3.2 Ohm
• Power Handling - Peak: 100 W
• Power Handling - Continuous: 50 W
• Sensitivity: 90 dB, SPL measured at 2.83V/1m
• Frequency Response: 160 - 13000 Hz (-6dB)
• Voice Coil Ø: 26 mm
• Chassis Material: Aluminium
• Magnet Material: Neodymium
• Voice Coil Material: CCAW
• Former Material: Glass Fiber
• Cone Material: Semi-Pressed Paper
• Surround Material: Rubber
• Xmax: 1.4 mm
• Xmech: 3.2 mm
• Voice Coil Winding Height: 5.3 mm
• Gap Height: 4.5 mm

Further Information

Audison VOCE II - User Manual (PDF)
