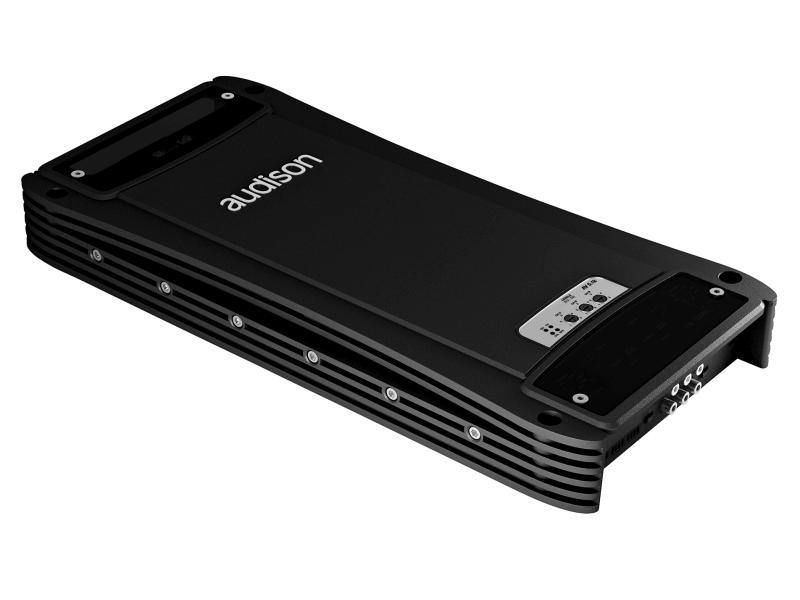

The Audison VOCE AV 5.1k is a 1650 W (RMS) max, five-channel amplifier: with its hybrid design, it is the specialist amplifier for front + rear + subwoofer or multi-amplified front + subwoofer systems.
Its high-quality AB Class output stage provides two channels with 250 W (RMS), combined with another pair of A class pure audio channels rated at 75 W (RMS), perfect for active two-way front speaker systems. The Class D mono section provides 1000 W (RMS) for an efficiency and powerful subwoofer output.

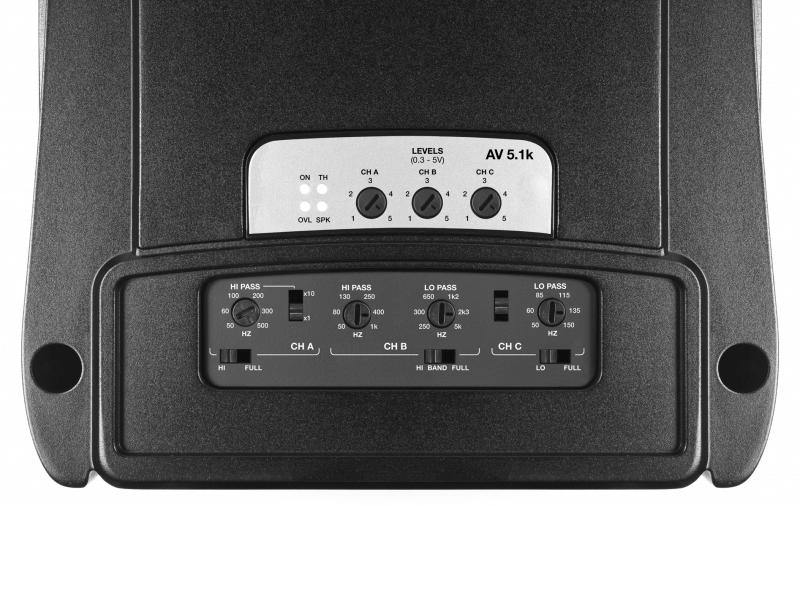

AMP (Amplifier Management Processor) constantly checks the operating status system and communicates with the user through 4 different coloured LEDs, located on the top panel; ART (Automatic Remote Turn On-Off) allows automatic turn-on/off when a remote signal isn’t available from the source.
Power Output
Load Impedance | 5 Channels |
4 Ohm | 75 W x 2 + 140 W x 2 + 600 W x 1 |
4/2 Ohm | 75 W x 2 + 140 W x 2 + 1000 W x 1 |
2/4 Ohm | 75 W x 2 + 250 W x 2 + 1000 W x 1 |
Features
- Hi-Res audio - According to the definition of HiRes audio provided by JAS (Japan Audio Society - jas-audio.or.jp), Voce amplifiers exceed the above 40 kHz bandwith analog requirement, providing an astonishing 4 ÷ 60k Hz (@ -3 dB, 2 VRMS, 4 Ω).
Further Information
Audison VOCE AV 5.1K - Tech Sheet
Audison VOCE AV 5.1k - User Manual
