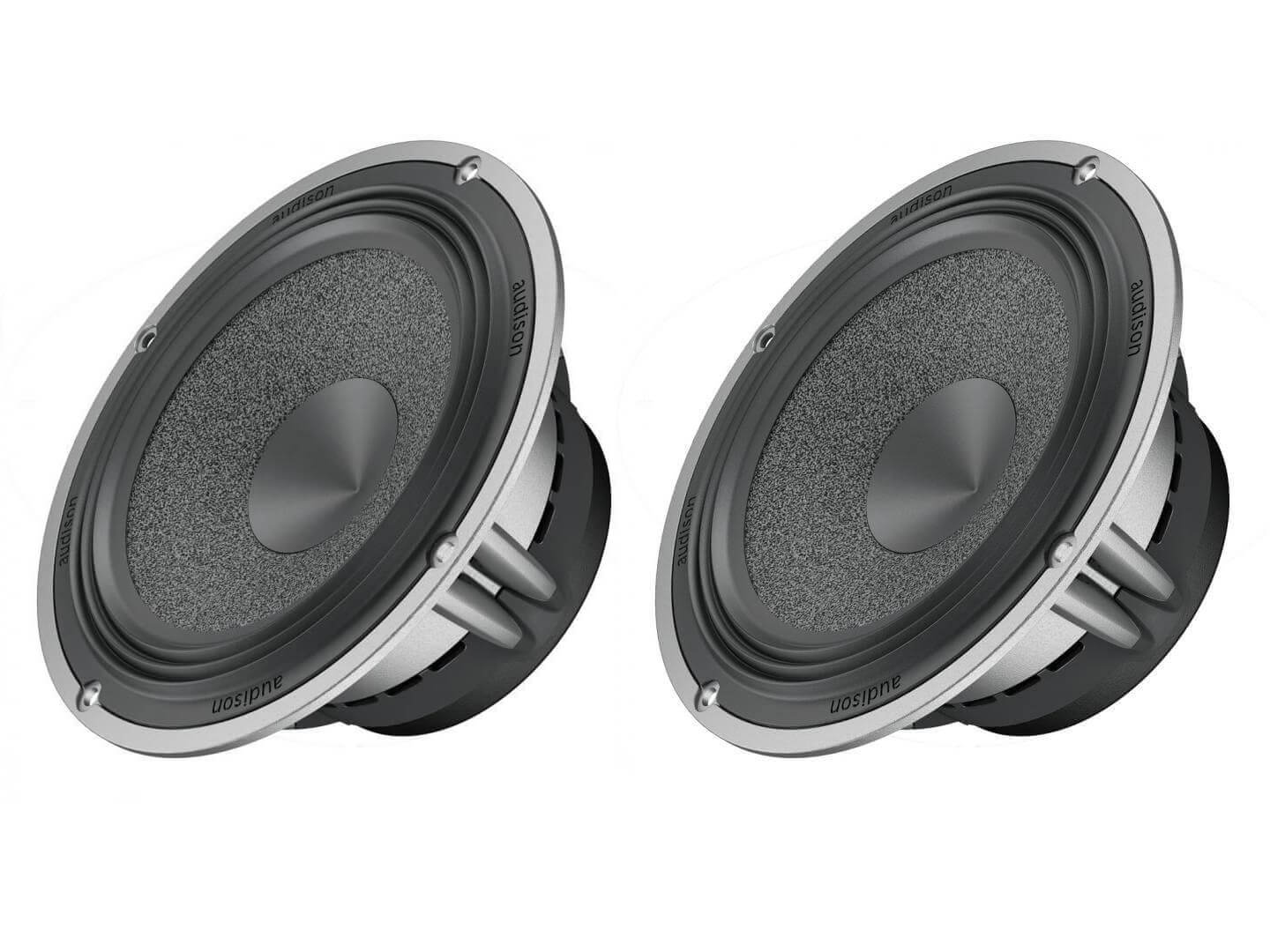

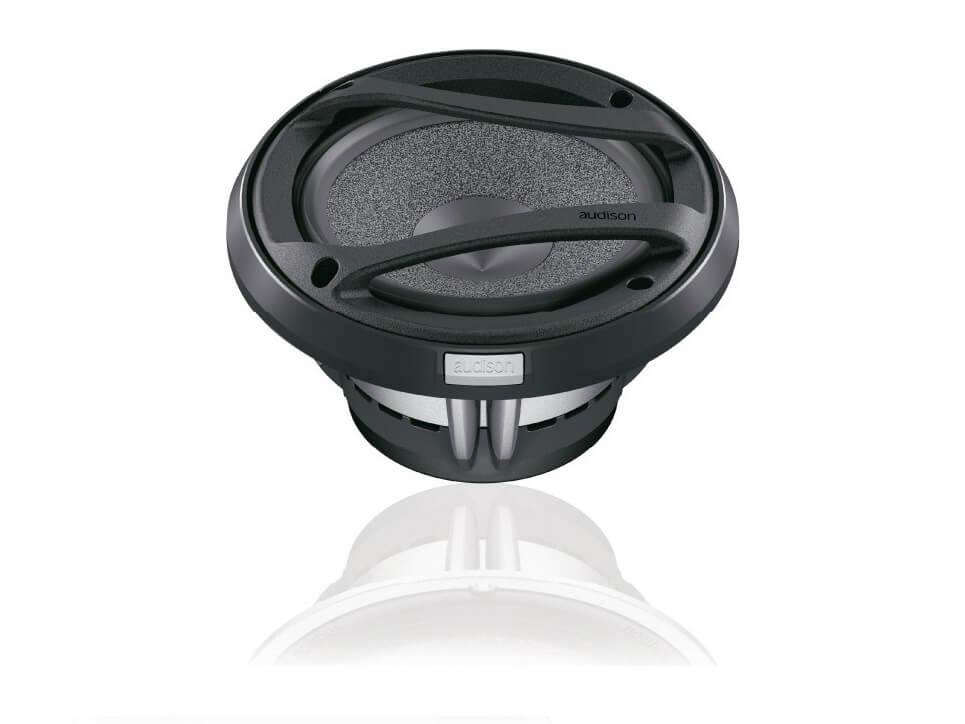

Originating directly from the experience of the Thesis line components, the Audison Voce AV 6.5 woofer features an aluminium basket with a great dynamic structure, a cotton-fibre paper pressed cone with Light Damping treatment, a Triple Wave surround in butyl rubber and extremely light Copper Clad Aluminium Wire coils.
Features

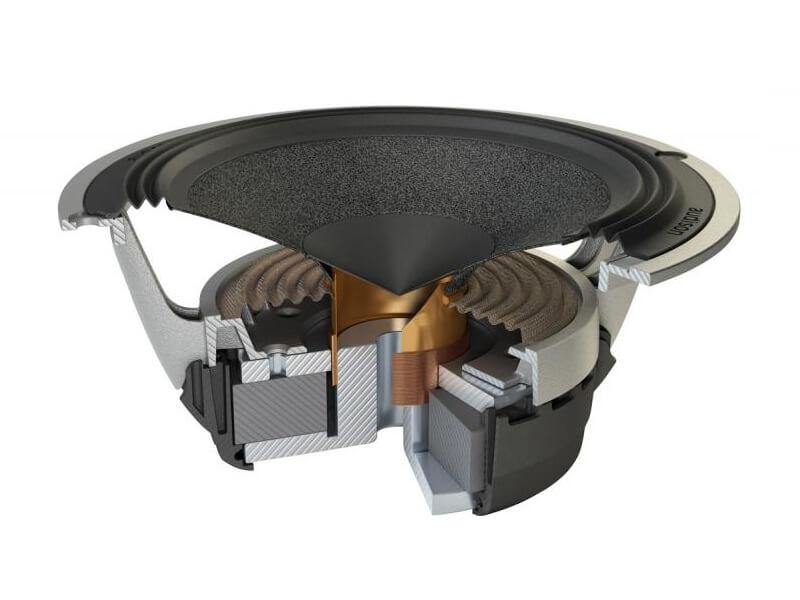

- The profile of the aerodynamic basket’s spokes along with the “open-air” design ensure drastic reduction of back-wave reflections.
- The exclusive Butyl rubber “Triple Wave” surround profile provides full linearity as well as reliable performance under extreme conditions.
- Extremely lightweight and compact, the CCAW (Copper Clad Aluminium Wire) voice coils wound on double layer provide very high efficiency and neat, dynamic sound.
- Cotton-fibre pressed paper cone with “Light Damping” treatment.
- The Radial Venting System ensures high thermal capability, power handling and reliability
Technical Specifications
- Component - Woofer
- Size - 165mm (6.5")
- Power Handling - 200W Peak, 100W Continuous
- Impedance - 4Ω
- Frequency Response - 50 ÷ 7kHz
- Sensitivity - 91 dB/SPL
- Magnet size D x d x h - 90mm x 40mm x 15mm (3.54" x 1.57" x 0.59”)
- Weight of one speaker - 1.2 Kg (2.7 lb)
- Voice Coil Ø - 30mm (1.18")
Further Information
Audison VOCE AV 6.5 Woofer - Tech Sheet
Audison VOCE Speakers - User Manual

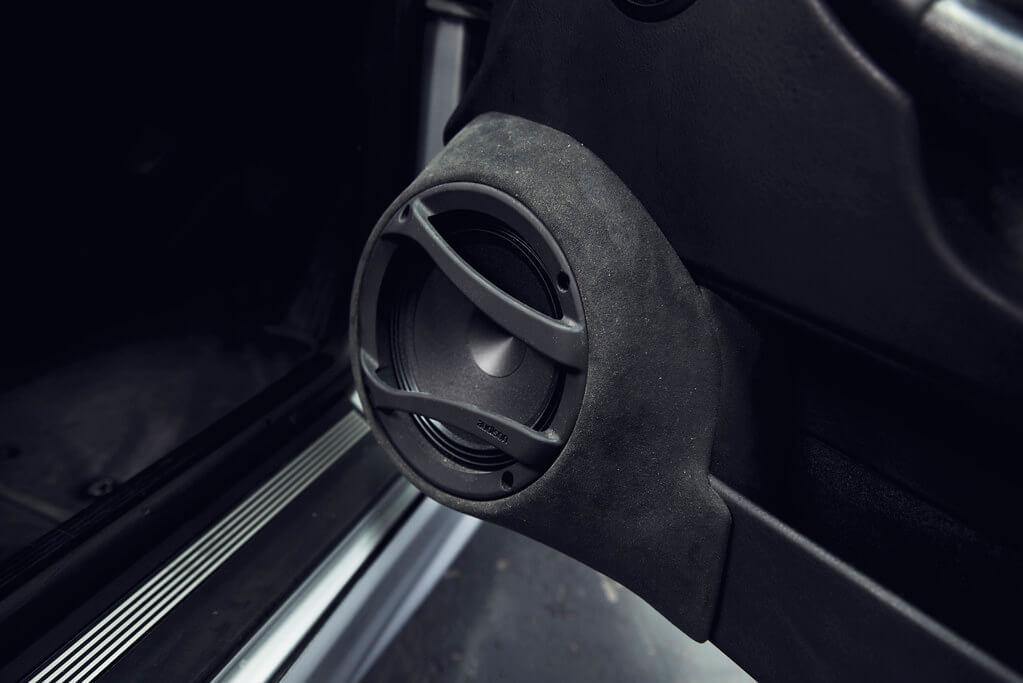

Builds featuring the Audison Voce AV 6.5 Mid-Bass
A rare BMW Z8 complete with some clever integration to not compromise on the unique interior finish. A combination of Sony and Audison gear used to compliment this great car.
A lovely Nissan GTR, which has undergone a full deadening and Audison Audio system upgrade. Complete with a custom tablet installation. We get some pretty special cars here at Studio Incar, this is no exception.
You can tell from the exterior, that this is something special. A 1976 Audi 100. We were tasked with a complete re-trim, custom audio upgrade and an Air-Ride upgrade. Oh and a real wood false floor. Come and see how we did it all.
Steve contacted us about upgrading the stereo in his Audi A4 Cabriolet. This was to be a Competition build to present at the Santa Pod Raceway. Complete with Audison and JL Audio components, see how we made it work.
Three - Runs true throughout this build, no matter where you look there is something to whittle it back to the number three… three amps, three woofers, three way front end, M Three…. Trust us the list goes on so naturally it has fallen into it's own title. More about this awesome project, read on.
I want an iPad, in my dash, I need it done asap said Jason Allen to me on a generic social media chat site. We fabricated the iPads into the centre console and a boot controller. Along with an Audison Voce audio system upgrade.
