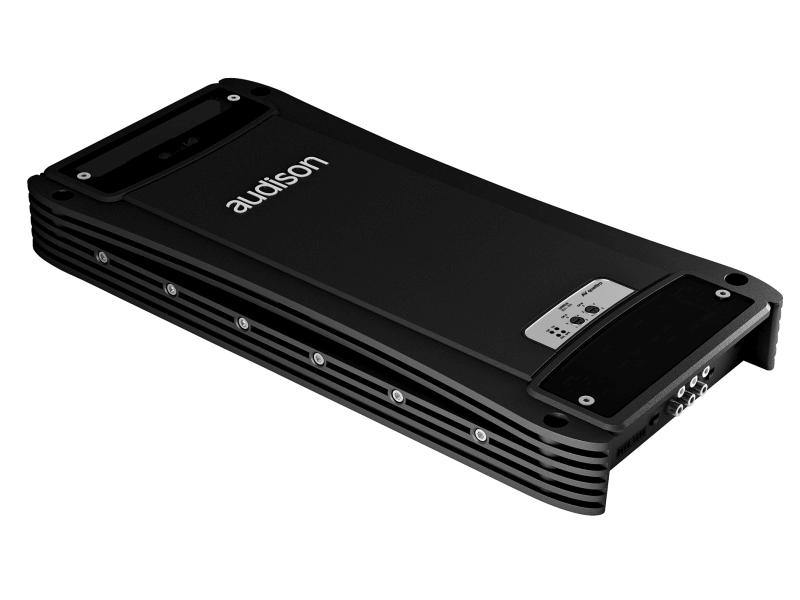

The Audison VOCE AV quattro is a four-channel amplifier which can work in four, three, two channel mode, delivering 1700 W (RMS) power total.

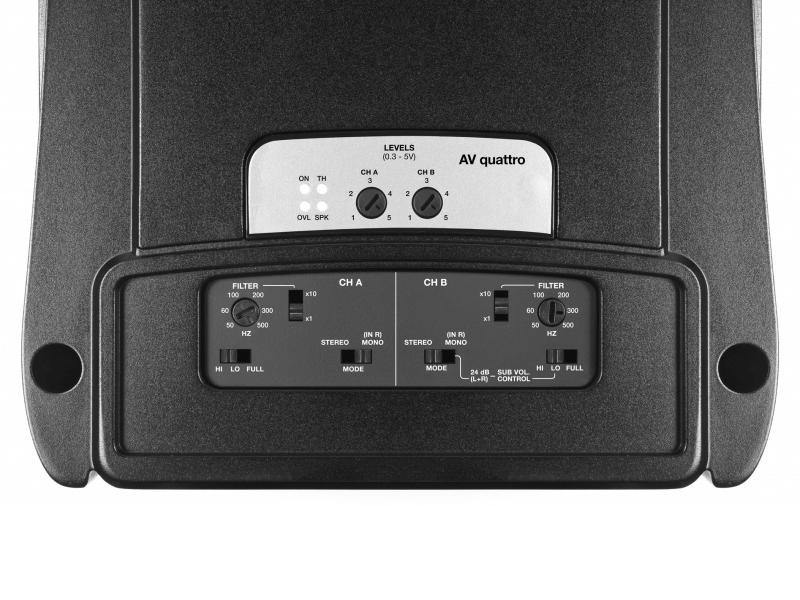

It is designed to handle complex configurations as front/rear and multi-channel systems. The AMP (Amplifier Management Processor) constantly checks the operating system status and communicates with the user through 4 different coloured LEDs, located on the top panel.
ART (Automatic Remote Turn On-Off) allows automatic turn-on/off when a remote signal isn’t available from the source; up to 24 dB/Oct. slope crossovers allow to build front-rear, front-sub or multi-amplified systems while still ensuring a non-filtered output signal to expand the system.
Power Output
Load Impedance | 4 Channels | 3 Channels | 2 Channels |
4 Ohm | 120 W x 2 | 120 W x 2 + 400 W x 1 | 400 W x 2 |
4/2 Ohm | 120 W x 2 + 200 W x 2 | N/A | N/A |
2/4 Ohm | N/A | 200 W x 2 + 400 W x 1 | N/A |
2 Ohm | 200 W x 4 | N/A | N/A |
Features
Hi-Res Audio
According to the definition of HiRes audio provided by JAS (Japan Audio Society - jas-audio.or.jp), Voce amplifiers exceed the above 40 kHz bandwith analog requirement, providing an astonishing 4 ÷ 60k Hz (@ -3 dB, 2 VRMS, 4 Ω).
Further Information
Audison VOCE AV quattro - Tech Sheet
Audison VOCE AV quattro - User Manual
