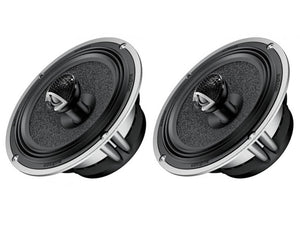

The Audison VOCE AV X6.5 coaxial speakers are the evolution of the woofer from the same line, thanks to the introduction of an excellent 1” Tetolon dome tweeter.

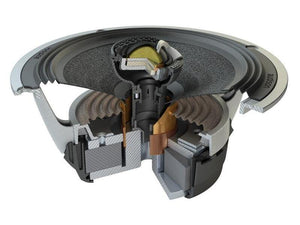

The Orientable High Frequency Tuning technology also provides the ability to optimize dispersion in high range to achieve the best performance in the listening point, while the woofer used the aerodynamic basket, the Triple Wave surround profile in butyl rubber, the CCAW voice coil wound on double layer and exclusive Cotton-fibre pressed paper cone with Light Damping treatment. The coaxial element is perfected by a refined on-wire dedicated crossover, supplied with the product.
Audison VOCE AV X6.5 - Product Features
- The profile of the aerodynamic basket’s spokes along with the “open-air” design ensure drastic reduction of back-wave reflections.
- The exclusive Butyl rubber “Triple Wave” surround profile provides full linearity as well as reliable performance under extreme conditions.
- Extremely lightweight and compact, the CCAW (Copper Clad Aluminium Wire) voice coils wound on double layer provide very high efficiency and neat, dynamic sound.
- The Radial Venting System ensures high thermal capability, power handling and reliability.
- Cotton-fibre pressed paper cone with “Light Damping” treatment.
- Orientable High Frequency Tuning: high range controlled dispersion for the best performance in the listening point.
- Tetolon® dome Neodymium tweeter.

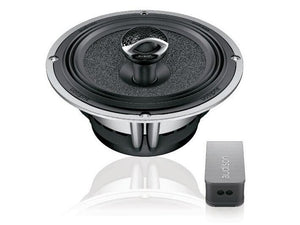

- On-wire dedicated crossover network, for best performance at crossover frequencies.
Technical Specifications
- Component - 2-way Coaxial
- Size - Woofer 165mm (6.49"), Tweeter 25mm (1”)
- Power Handling - 200W Peak 200, 100W Continuous
- Impedance - 4Ω
- Frequency Response - 50 ÷ 22kHz
- Sensitivity - 91 dB/SPL
- Crossover Included - 3.5 kHz @ 6/12 dB/Oct.
- Magnet size D x d x h - Woofer 90 mm x 40mm x 15mm (3.54" x 1.57" x 0.59”)
- Magnet size D x h - Tweeter 25mm x 3.5mm (1” x 0.13”)
- Weight of one speaker - 1.3 kg (2.8 lb)
- Voice Coil Ø - 30mm (1.18")
