The Audison VOCE II AV 6.5 P II woofer is engineered to deliver exceptional sound clarity and precision. It naturally rolls off at off-axis positions, eliminating the need for a low-pass filter in most door installations and reducing phase shifts common with other filters. It can employ a gentle 6 dB/Octave filter to enhance low and mid-bass tones, further enriching sound quality.
The woofer’s OEM-style connector, compatible with FASTON terminals and designed for seamless integration, features a unique T-shaped pole piece with an aluminium ring to minimise distortion and enhance frequency response.
Product Features
- 1.6 in. (40 mm) CCAW Voice Coil (Copper-Clad Aluminum Wire): Maximises excursion capability and heat dissipation, allowing the driver to handle 150W RMS power, delivering powerful bass without dynamic compression, even at high listening volumes.
- Low Inductance Design: Optimises upper midrange (2-3 kHz) reproduction, improving the clarity of vocals and instruments, thanks to an aluminium shorting ring built-in the motor.
- Oversized Magnetic Assembly: Provides exceptional thermal stability, ensuring optimal dynamic reserve in any listening condition.
- FEM optimized Magnetic Circuit Geometry: Maximises efficiency by concentrating the magnetic field on the coil for more precise, dynamic sound.
- Semi-pressed Pulp Cone with Cotton Fibers: Combines rigidity and lightness for a wide frequency response and clean reproduction, even in midrange frequencies.
- Die-Cast Aluminium Basket with magnet cover: Enhances heat dissipation and reduces turbulent airflows, ensuring maximum rigidity and high performance over time, even during prolonged use.
- High Excursion Butyl Rubber Surround and Optimised Spider: Uses advanced simulations to ensure greater linearity and cone control, reducing distortion during intense excursions.
- Installation Flexibility: Equipped with OEM-style and Faston connectors, offering maximum installation versatility. Includes two provided adhesive Audison logo badges, allowing for personalized placement to enhance branding and aesthetics.

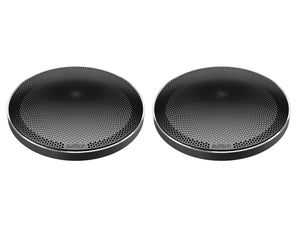

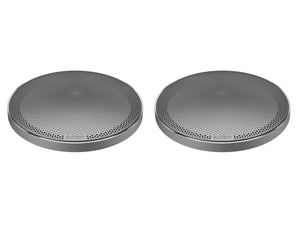

- Optional Black or Silver Mesh Metal Grille: Provides robust protection without compromising acoustic performance, adding a touch of elegance to the installation for perfect cabin integration.
- eID Technology: Ensures product traceability from production to the final owner, guaranteeing authenticity and security.
What's in the Box?
- AV 6.5 P II Woofers
- Audison Badges
- Plug & Play Cable
- Fixing Kit
Technical Specifications
- Nominal Diameter: 165 mm
- Impedance: 4 Ohm
- Minimum Impedance: 3.1 Ohm
- Power Handling - Peak: 300 W
- Power Handling - Continuous: 150 W
- Sensitivity: 91 dB - SPL measured at 2.83V/1m
- Frequency Response: 45 - 7500 Hz Hz (-6dB)
- Voice Coil Ø: 40 mm
- Chassis Material: Aluminium
- Magnet Material: High Density Flux Ferrite
- Magnet size D x d x h: 100 x 45 x 18 mm
- Voice Coil Material: CCAW
- Former Material: Glass Fiber
- Cone Material: Semi-Pressed Paper
- Surround Material: Rubber
- Xmax: 4.95 mm
- Xmech: 7.5 mm
- Voice Coil Winding Height: 13 mm
- Gap Height: 6 mm
