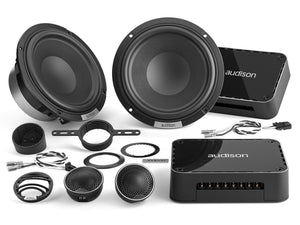

Audison VOCE II AVK 6 P II - 2-Way Speaker System

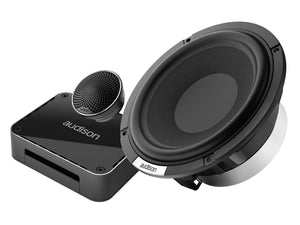

The Audison VOCE II AVK 6 P II system is meticulously engineered to deliver dynamic and powerful audio performance. Integrating the AV 1.1 II Hi-Res Tweeter and the robust AV 6.5 P II Mid-Bass Component, this setup offers exceptional power handling up to 150W RMS, thanks to the 40 mm CCAW voice coil.

The included AVCX 2P TW passive crossover is crafted from high-quality components, providing extensive tone controls and bi-amplification support for precise sound customiation. Installation is facilitated by OEM-style and Faston connectors, making it adaptable to any vehicle setup.

Product Features

AV 1.1 II

• Hi-Res Audio Certified, Extending Up to 40 kHz: Delivers detailed high-frequency reproduction with improved off-axis response, ensuring exceptional performance even when the tweeter is not directly aligned with the listener, ideal for in-car installations.
• Tetolon Soft Dome: Optimised through advanced material characterisation, laser vibrometer scanning, and simulations, providing a smooth, extended response with warm, natural sound reproduction.
• 1.1” (28 mm) CCAW Voice Coil: Lightweight and stable, eliminating transient compression and ensuring low distortion for clean, natural sound, even at high SPL levels.
• Powerful Neodymium Magnet: Designed for superior dynamic response and minimal distortion across the frequency range, enhancing clarity and precision.
• OEM-style and Faston connectors: Ensures maximum versatility for quick and easy installation in any vehicle, no additional adapters needed.
• AIF (Any Install Faceplate) Technology: Offers total installation flexibility and significantly reduces setup time, with two faceplates and three mounting accessories included—perfect for any configuration.
• FEM-Optimised Faceplates: Enhance sound dispersion for a balanced and immersive audio experience from any listening angle.
• Mesh and Spoke Grilles Included: Both grille options ensure perfect in-car integration, combining aesthetics with performance. Includes two provided adhesive Audison logos, allowing for personalised placement to enhance branding and aesthetics.
• eID Technology: Provides traceability from production to owner, guaranteeing authenticity and product security.

AV 6.5 P II

• (40 mm) CCAW Voice Coil (Copper-Clad Aluminum Wire): Maximises excursion capability and heat dissipation, allowing the driver to handle 150W RMS power, delivering powerful bass without dynamic compression, even at high listening volumes.
• Low Inductance Design: Optimises upper midrange (2-3 kHz) reproduction, improving the clarity of vocals and instruments, thanks to an aluminium shorting ring built-in the motor.
• Oversized Magnetic Assembly: Provides exceptional thermal stability, ensuring optimal dynamic reserve in any listening condition.
• FEM-optimised Magnetic Circuit Geometry: Maximises efficiency by concentrating the magnetic field on the coil for more precise, dynamic sound.
• Semi-pressed Pulp Cone with Cotton Fibers: Combines rigidity and lightness for wide frequency response and clean reproduction, even in midrange frequencies.
• Die-cast aluminium Basket with Magnet Cover: Enhances heat dissipation and reduces turbulent airflows, ensuring maximum rigidity and high performance, even during prolonged use.
• High Excursion Butyl Rubber Surround and Optimised Spider: Uses advanced simulations to ensure greater linearity and cone control, reducing distortion during intense excursions.
• Installation Flexibility: Equipped with OEM-style and Faston connectors, offering maximum installation versatility. Includes two adhesive Audison logo badges, which are provided, allowing for personalised placement to enhance branding and aesthetics.
• Optional Black or Silver Mesh Metal Grille: Provides robust protection without compromising acoustic performance, adding a touch of elegance to the installation for perfect cabin integration.
• eID Technology: Ensures product traceability from production to the final owner, guaranteeing authenticity and security.

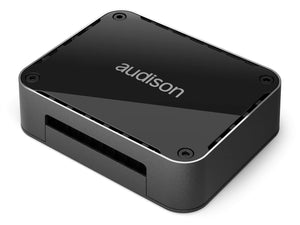

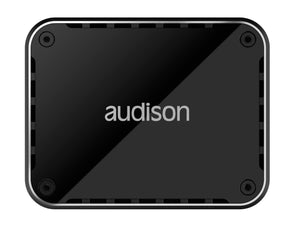

AVCX 2P TW

• Bi-Amplification Support: The ability to connect separate amplifiers or channels for the woofer and tweeter, selectable via a high-current switch designed to handle substantial power loads, ensuring optimal performance and flexibility.
• Mid-Contour Two-Position Control: Provides fine adjustment of the mid-bass frequency response, allowing users to optimise sound output based on the woofer’s placement within the vehicle and individual listening preferences.
• Hi-Contour Two-Position Control: Enables precise selection of the tweeter’s high-pass crossover point, tailored to its position and angle relative to the listener, ensuring seamless integration and enhanced high-frequency performance.
• Customisable System Configuration: The combination of Mid-Contour and Hi-Contour controls creates a bespoke two-way system, perfectly balancing the woofer and tweeter, such as pairing the AV 6.5 P II with the AV 1.1 II.
• Three-Position Tweeter Level Switch: Adjusts the tweeter’s output in 2 dB increments, allowing users to fine-tune sound balance and achieve the desired tonal precision for their listening environment.
• Hi-Boost Control: Selectable via a dedicated switch, this feature enhances high-frequency linearity above 10kHz, compensating for off-axis tweeter positioning and maintaining a smooth and natural soundstage.
• High-Quality Capacitors: Equipped with bi-metalized 160V polyester film capacitors featuring ultra-low Dissipation Factor (DF), ensuring exceptional sound transparency and pristine mid/high-frequency reproduction.
• Air-Wound Inductors: Constructed with pure copper wire up to 1mm ( 0.04 in) in diameter, these inductors provide a high saturation threshold and minimise energy loss, delivering consistent performance in the woofer section during dynamic and high-current demands.
• Aluminium-housed Resistors: Designed for exceptional thermal stability and acoustic performance, these resistors minimise parasitic inductance, reducing high-frequency losses and ensuring reliable operation even under demanding conditions.

Technical Specifications

Woofer:

• Woofer Size: 165 mm
• Impedance: 4 Ohm
• Power Handling - Peak: 300 W
• Power Handling - Continuous: 150 W
• Frequency Response: 45 - 7500 Hz (-6dB)
• Voice Coil Diameter: 40 mm
• Magnet Material: High Density Flux Ferrite
• Magnet Size: 100 x 45 x 18
• Cone Material: Pressed Paper Cone

Tweeter:

• Tweeter Size: 1.1 mm
• Frequency Response: 1000 - 40000 Hz
• Power Handling - Peak: 180 W
• Voice Coil Diameter: 28 mm
• Dome Material: Teleton Fibre

Further Information

Audison VOCE II - User Manual (Link)
