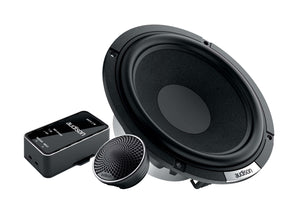

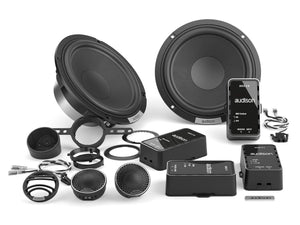

Audison VOCE II AVK 6 S II - 2-Way Speaker System

The Audison VOCE II AVK 6 S II system, equipped with the high-power AV 6.5 S II woofer and Hi-Res Audio certified AV 1.0 II tweeter, delivers superb performance. The integration of AVCX 2 W and AVCX 2 T crossovers simplifies installation while enabling advanced sound tuning, including bi-amplification and meticulous adjustments for tweeter level and mid contour.

These crossovers, built with high-quality components, ensure a harmoniously balanced audio experience, enhancing durability and clarity. This setup achieves seamless integration and superior sound customisation, making it an ideal solution for sophisticated car audio upgrades.

Product Features

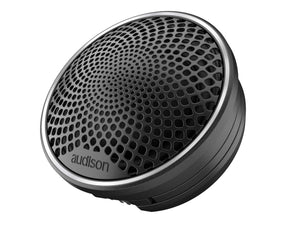

AV 1.0 II

• Hi-Res Audio certification with extension up to 40 kHz: Ensures detailed high-frequency reproduction with improved off-axis response, delivering exceptional sound even when the tweeter is not perfectly oriented towards the listener, ideal for automotive installations.
• Tetolon soft dome: Optimided through precise material characterisation, laser vibrometer scanning, and advanced simulations, ensuring a smooth and extended response, offering warm and natural sound reproduction.
• 1” (25 mm) CCAW voice coil: Lightweight and stable, it eliminates musical transient compression, ensuring low distortion for clean and natural sound, even at high SPL level.
• Powerful neodymium magnet: Designed to provide superior dynamic response and minimal distortion across the frequency spectrum, improving sound clarity and precision.
• Installation Flexibility: Equipped with OEM-style and Faston connectors, offering maximum installation versatility. Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.
• AIF (Any Install Faceplate) Technology: Designed to ensure total installation flexibility and significantly reduce installation time, offering two faceplates and three mounting accessories for any configuration.
• FEM-optimised faceplates (Finite Element Method): Improve sound dispersion for a balanced and immersive listening experience from any angle.
• Mesh and spoke grilles: Both grilles are included to ensure perfect integration within the vehicle cabin, combining aesthetics and performance.
• eID technology: Provides tweeter traceability from production to the owner, guaranteeing authenticity and product security.

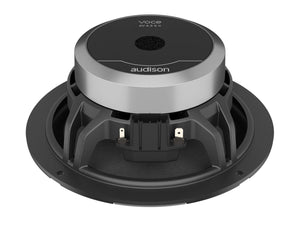

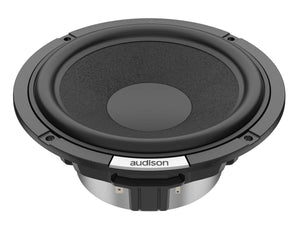

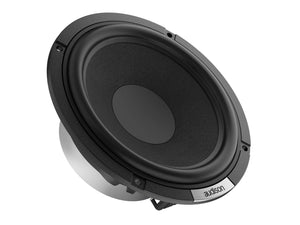

AV 6.5 S II

• 1.4” (36 mm) CCAW (Copper Clad Aluminum Wire) voice coil: Maximises excursion capability and heat dissipation, allowing the driver to reach 100W RMS power, delivering powerful bass free from dynamic compression, even at high listening volumes.
• Low Inductance Design: Optimises upper midrange (2-3 kHz) reproduction, improving the clarity of vocals and instruments, thanks to an aluminium shorting ring built-in in the motor.
• Oversized Magnetic Assembly: Provides exceptional thermal stability, ensuring optimal dynamic reserve in any listening condition.
• FEM-optimised Magnetic Circuit Geometry: Maximises efficiency by concentrating the magnetic field on the coil for more precise, dynamic sound.
• Semi-pressed Pulp Cone with Cotton Fibers: Combines rigidity and lightness for wide frequency response and clean reproduction, even in midrange frequencies.
• Die-Cast Aluminum Basket with Magnet Cover: Enhances heat dissipation and reduces turbulent airflows, ensuring maximum rigidity and high performance, even during prolonged use.
• High Excursion Butyl Rubber Surround and Optimised Spider: Uses advanced simulations to ensure greater linearity and cone control, reducing distortion during intense excursions.
• Installation Flexibility: Equipped with OEM-style and Faston connectors, offering maximum installation versatility. Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.
• Optional Black or Silver Mesh Metal Grille: Provides robust protection without compromising acoustic performance, adding a touch of elegance to the installation for perfect cabin integration. Includes two provided adhesive Audison logos, allowing for personalised placement to enhance branding and aesthetics.
• eID Technology: Ensures product traceability from production to the final owner, guaranteeing authenticity and security.

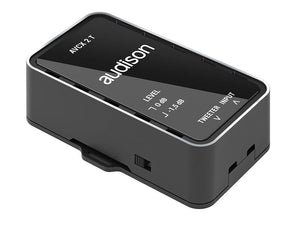

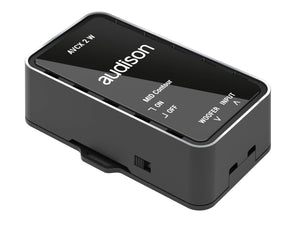

AVCX 2 W and AVCX 2 T

• Separate compact crossovers for tweeters and woofers: Allow bi-amplification of tweeter and woofer, reducing space requirements and simplifying wiring, making the installer’s job easier.
• Tweeter Level and Mid Contour Controls: Enable precise tuning to adapt the sound profile to vehicle acoustics and user preferences.
• Selected components: Featuring 160V bi-metalised polypropylene capacitors and 10W aluminium body low-inductance resistors, ensuring high power handling, durability, and distortion-free performance.
• Crossover Optimisation: Fine-tuned through advanced simulations and extensive in-car listening sessions to achieve the perfect balance between the tweeter and woofer, guaranteeing seamless integration and a natural, harmonious listening experience.
• OEM-Style Connectors: Provide secure and efficient connections for quick and reliable installation.

Technical Specifications

Woofer:

• Woofer Size: 165 mm
• Impedance: 4 Ohm
• Power Handling - Peak: 250 W
• Power Handling - Continuous: 125 W
• Frequency Response: 50 - 5500 Hz (-6dB)
• Voice Coil Diameter: 36 mm
• Magnet Material: High Density Flux Ferrite
• Magnet Size: 92 x 42 x 15 mm
• Cone Material: Pressed Paper Cone
• Crossover Type: Two Way Separate case for Woofer (AVCX 2 W - Full/6dB Oct.) & Tweeter (AVCX 2 T - 12dB/Oct.)
• Crossover Level Adjustment: AVCX 2 T: Tweeter Level: 0 / -1.5 dB; AVCX 2 W: Woofer Mid-Contour On / Off

Tweeter:

• Tweeter Size: 1 mm
• Frequency Response: 1200 - 40000 Hz
• Power Handling - Peak: 150 W Hi-Pass filtered @ 1.5 kHz - 12dB Oct.
• Voice Coil Diameter: 25 mm
• Dome Material: Teloton Fibre

Further Information

Audison VOCE II - User Manual (Link)
