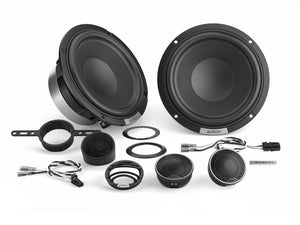

Audison VOCE II AVK 6A P II - 2-Way Speaker System

The Audison VOCE II AVK 6A P II system, engineered for dynamic performance, integrates the AV 1.1 II Hi-Res Tweeter and AV 6.5 P II Mid-Bass component. This combination achieves extraordinary power handling up to 150W RMS, attributed to the 1.6 in. (40 mm) CCAW voice coil that ensures exceptional durability and dynamic response.

The system excels in delivering powerful mid-bass performance, capturing the full essence of music with clarity and precision. Enhanced installation flexibility is provided by OEM-style and Faston connectors, ensuring seamless integration into any vehicle setup.

Product Features

AV 1.1 II

• Hi-Res Audio Certified, Extending Up to 40 kHz: Delivers detailed high-frequency reproduction with improved off-axis response, ensuring exceptional performance even when the tweeter is not directly aligned with the listener, ideal for in-car installations.
• Tetolon Soft Dome: Optimised through advanced material characterisation, laser vibrometer scanning, and simulations, providing a smooth, extended response with warm, natural sound reproduction.
• 1.1” (28 mm) CCAW Voice Coil: Lightweight and stable, eliminating transient compression and ensuring low distortion for clean, natural sound, even at high SPL levels.
• Powerful Neodymium Magnet: Designed for superior dynamic response and minimal distortion across the frequency range, enhancing clarity and precision.
• OEM-style and Faston connectors: Ensures maximum versatility for quick and easy installation in any vehicle, no additional adapters needed.
• AIF (Any Install Faceplate) Technology: Offers total installation flexibility and significantly reduces setup time, with two faceplates and three mounting accessories included—perfect for any configuration.
• FEM-Optimised Faceplates: Enhance sound dispersion for a balanced and immersive audio experience from any listening angle.

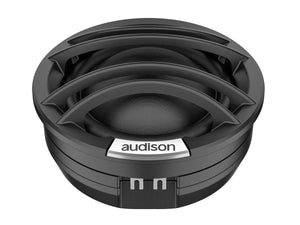

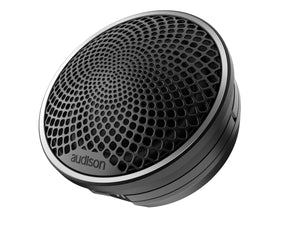

• Mesh and Spoke Grilles Included: Both grille options ensure perfect in-car integration, combining aesthetics with performance. Includes two provided adhesive Audison logos, allowing for personalised placement to enhance branding and aesthetics.
• eID Technology: Provides traceability from production to owner, guaranteeing authenticity and product security.

AV 6.5 P II

• (40 mm) CCAW Voice Coil (Copper-Clad Aluminum Wire): Maximises excursion capability and heat dissipation, allowing the driver to handle 150W RMS power, delivering powerful bass without dynamic compression, even at high listening volumes.
• Low Inductance Design: Optimises upper midrange (2-3 kHz) reproduction, improving the clarity of vocals and instruments, thanks to an aluminium shorting ring built-in the motor.
• Oversized Magnetic Assembly: Provides exceptional thermal stability, ensuring optimal dynamic reserve in any listening condition.
• FEM-optimised Magnetic Circuit Geometry: Maximises efficiency by concentrating the magnetic field on the coil for more precise, dynamic sound.
• Semi-pressed Pulp Cone with Cotton Fibers: Combines rigidity and lightness for wide frequency response and clean reproduction, even in midrange frequencies.
• Die-cast aluminium Basket with Magnet Cover: Enhances heat dissipation and reduces turbulent airflows, ensuring maximum rigidity and high performance, even during prolonged use.
• High Excursion Butyl Rubber Surround and Optimised Spider: Uses advanced simulations to ensure greater linearity and cone control, reducing distortion during intense excursions.
• Installation Flexibility: Equipped with OEM-style and Faston connectors, offering maximum installation versatility. Includes two adhesive Audison logo badges, which are provided, allowing for personalised placement to enhance branding and aesthetics.

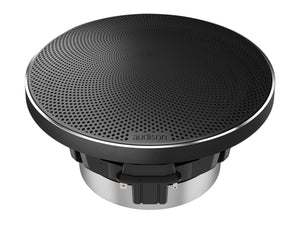

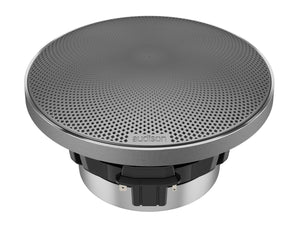

• Optional Black or Silver Mesh Metal Grille: Provides robust protection without compromising acoustic performance, adding a touch of elegance to the installation for perfect cabin integration.
• eID Technology: Ensures product traceability from production to the final owner, guaranteeing authenticity and security.

Technical Specifications

Woofer:

• Woofer Size: 165 mm
• Impedance: 4 Ohm
• Power Handling - Peak: 300 W
• Power Handling - Continuous: 150 W
• Frequency Response: 45 - 7500 Hz (-6dB)
• Voice Coil Diameter: 40 mm
• Magnet Material: High Density Flux Ferrite
• Magnet Size: 100 x 45 x 18
• Cone Material: Pressed Paper Cone

Tweeter:

• Tweeter Size: 1.1 mm
• Frequency Response: 1000 - 40000 Hz
• Power Handling - Peak: 180 W
• Voice Coil Diameter: 28 mm
• Dome Material: Teleton Fibre

Further Information

Audison VOCE II - User Manual (Link)
