The BlackVue CM100LTE - 4G Connectivity Module connects to the BlackVue X Series dash cams to provide an always-on 4G LTE connection to BlackVue Cloud and its collection of unique LIVE features. Simply add the new plug-and-play CM100LTE to your BlackVue DR750X or DR900X setup to enjoy always-on connectivity to BlackVue Cloud.
Thit means that you are always connected to any dash cam via the BlackVue app, from anywhere in the world, able to access Cloud features like Live View, Video Back-Up and Real Time Tracking.
Should something happen to your vehicle while you’re not around, an incident, an accident or perhaps an act of vandalism - you will receive a push notification via the BlackVue app, and the opportunity to view the footage remotely.
The CM100LTE is supplied with a Vodafone SIM card. Activate via the Vodafone Smart App to unlock a massive 40GB monthly data allowance for only £4.00 per month. Alternatively use your own choice of Network Provider, SIM card and data plan.

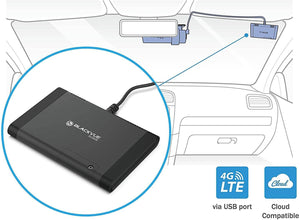

The compact CM100LTE measures only 9cm (H) x 6cm (H) x 1cm (D) and connects to the USB port of your dash cam via a 1.5m long connection cable. It should be positioned somewhere in the windscreen area of the vehicle for optimal 4G reception.

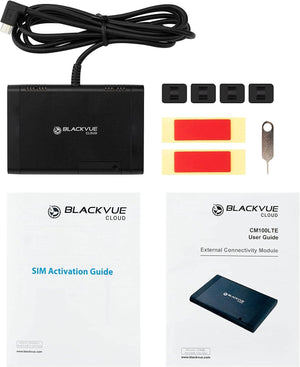

What's in the Box?
- CM100LTE module
- User guide
- SIM activation guide
- SIM card – requires data plan
- SIM eject tool
- Adhesive mounting pads
- Cable clips (x4)
|Size / Weight||Length 90 mm x Width 60 mm x Height 10 mm / 74g|
|Transmitting Power||Class 3 : 23dBm +/-2dBm @ LTE-FDD Bands Class 3 : 24dBm +1/-3dBM @ WCDMA Bands|
|SIM Type||Support Nano SIM Card / 3.0V|
|Connector Type||Micro USB Type-B Connector with Harness Cable|
|USB Interface||Compliant with USB 2.0 specification(Slave Only), Reach up to 480Mbps for data transfer rate|
|Antenna Type||Fixed / Intenna (Main, Diversity)|
|Power Supply||USB Harness Cable : 3.0m Typical Supply Voltage : 5.0V / 1A Supply Input Voltage : 3.3V ~ 5.5V / Max. Current : 2A|
|Power Consumption||Idle Mode : 20mA / Traffic Mode : 570mA @ Max. Power (23dBm)|
|Temperature Range||Operation Temperature Range : -35°C ~ +75°C Storage Temperature Range : -40°C ~ +85°C|
