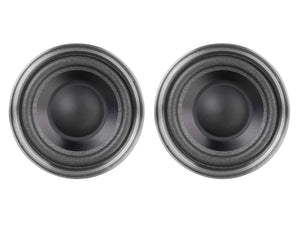

Brax Graphic GL2 - 2" Midrange Speakers

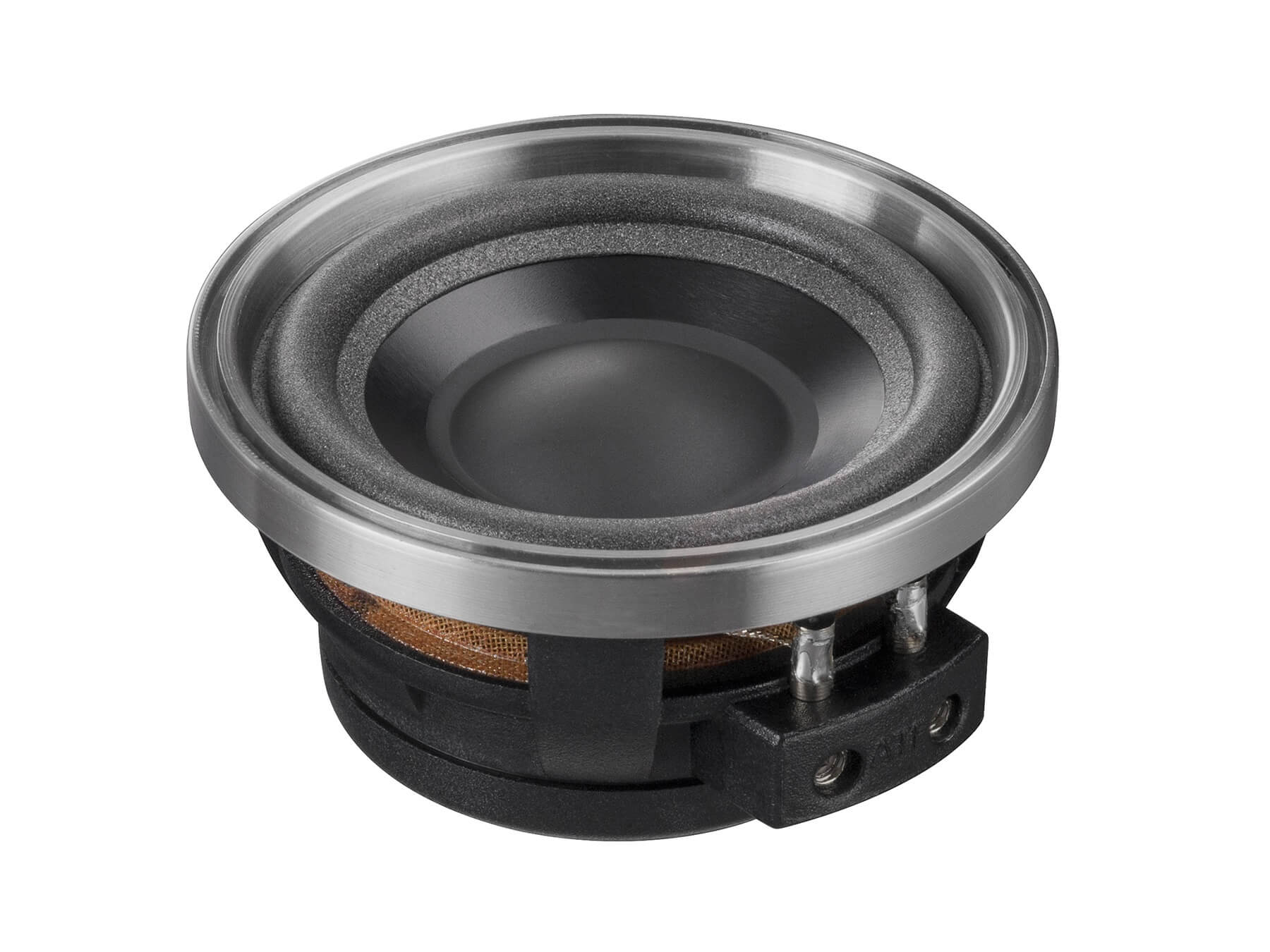

Introducing the newest member of the BRAX GRAPHIC speaker series: The BRAX GL2. This 50 mm / 2“ midrange driver is special in many ways. In its long development process, no expense or effort was spared to create an uncompromising loudspeaker, which you can only expect like that from BRAX.

Every single component – from the basket to the diaphragm – was rethought and manufactured with specially made tools. This enormous effort manifests itself even beyond its outstanding sound characteristics in an unusually compact form factor that creates entirely new installation possibilities. And even better: due to its exceptionally wide frequency response, the GL2 can be used without an additional tweeter, resulting in the close approach of the ideal of a point source and an overall new level of spatial reproduction of music in the automobile.

The extremely rigid aluminum cone by Dr. Kurt Müller provides a notably natural midrange response with particularly dynamic sound characteristics, while the precisely manufactured neodymium magnet system with its optimally linear magnetic flux contributes to the exceptionally low distortion factor.

This clearly shows that, with all of its technical finesse, the GL2 is in a league of its own.

Elegant design with high functionality

In typical BRAX fashion, design and function intertwine. Of course, there are the 24-carat gold plated terminals to round off the purist, noble look and ensure maximum conductivity. The sturdy, black grille protects the cone from damages and underlines the minimalist appearance, while the threaded hole on the back allows a discreet integration into the vehicle.

Details well-thought-out to the end

The special level of quality and the attention for every single detail automatically manifest the GL2 at reference level, meeting the highest tonal demands of any hi-fi enthusiast. Typically for BRAX, each pair of speakers is given its own serial number and recorded in a service database. This high-end product – Made in Germany – is topped off by the packaging in an elegant wooden box, complimenting the uncompromising philosophy of the BRAX brand.

Product Features

• Enormously broadband frequency response even off-axis – therefore ideal for the use as broadband speaker without additional tweeter
• Rigid aluminium cone for outstanding and natural midrange response
• Particularly clear and dynamic sound characteristics thanks to the rigid and lightweight aluminium cone
• Precisely machined ­neodymium magnet system for highest ­magnetic flux linearity
• 24 carat gold plated terminals for maximum conductivity

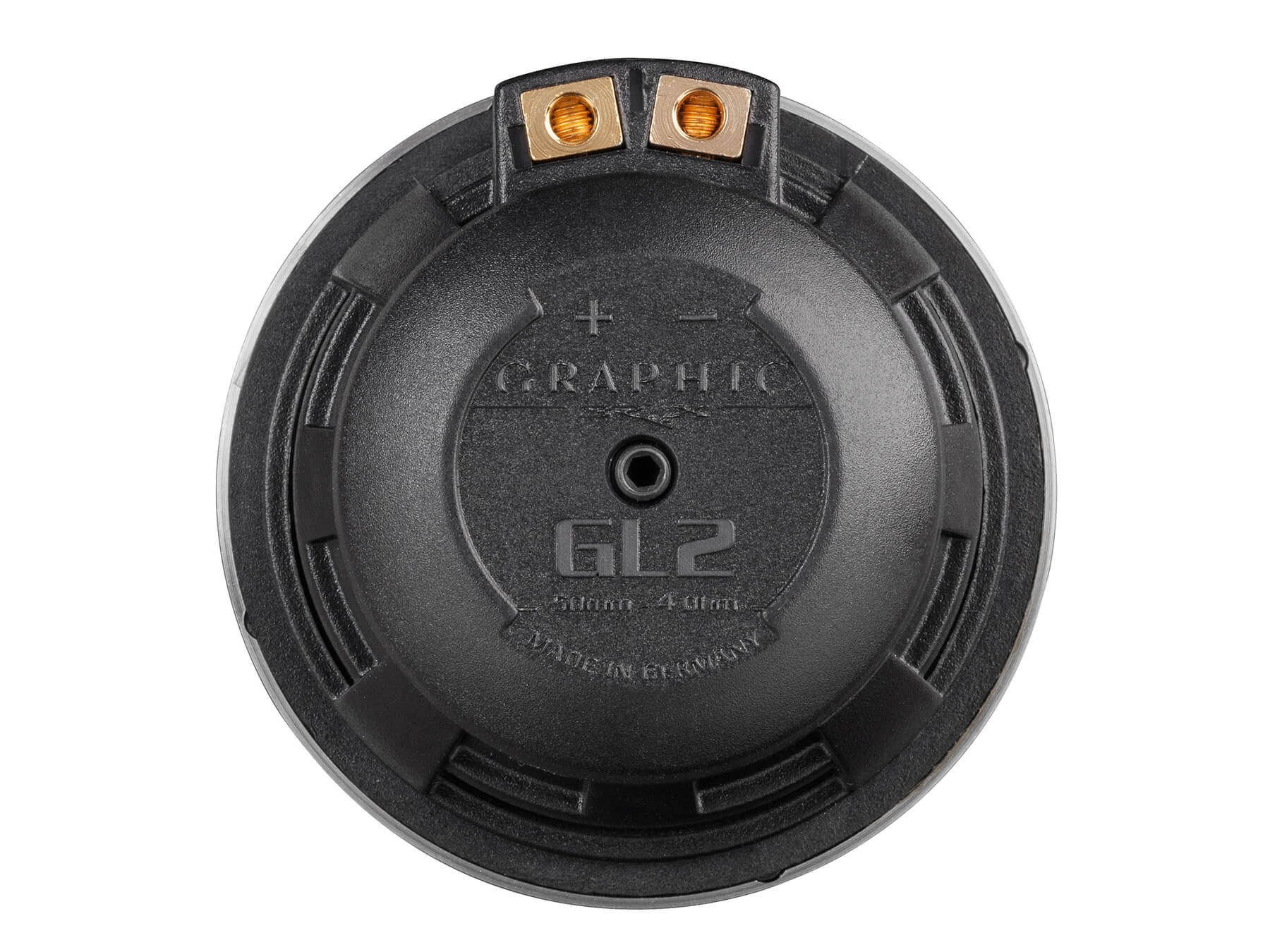

• Magnet system with threaded hole for hidden fastening from behind

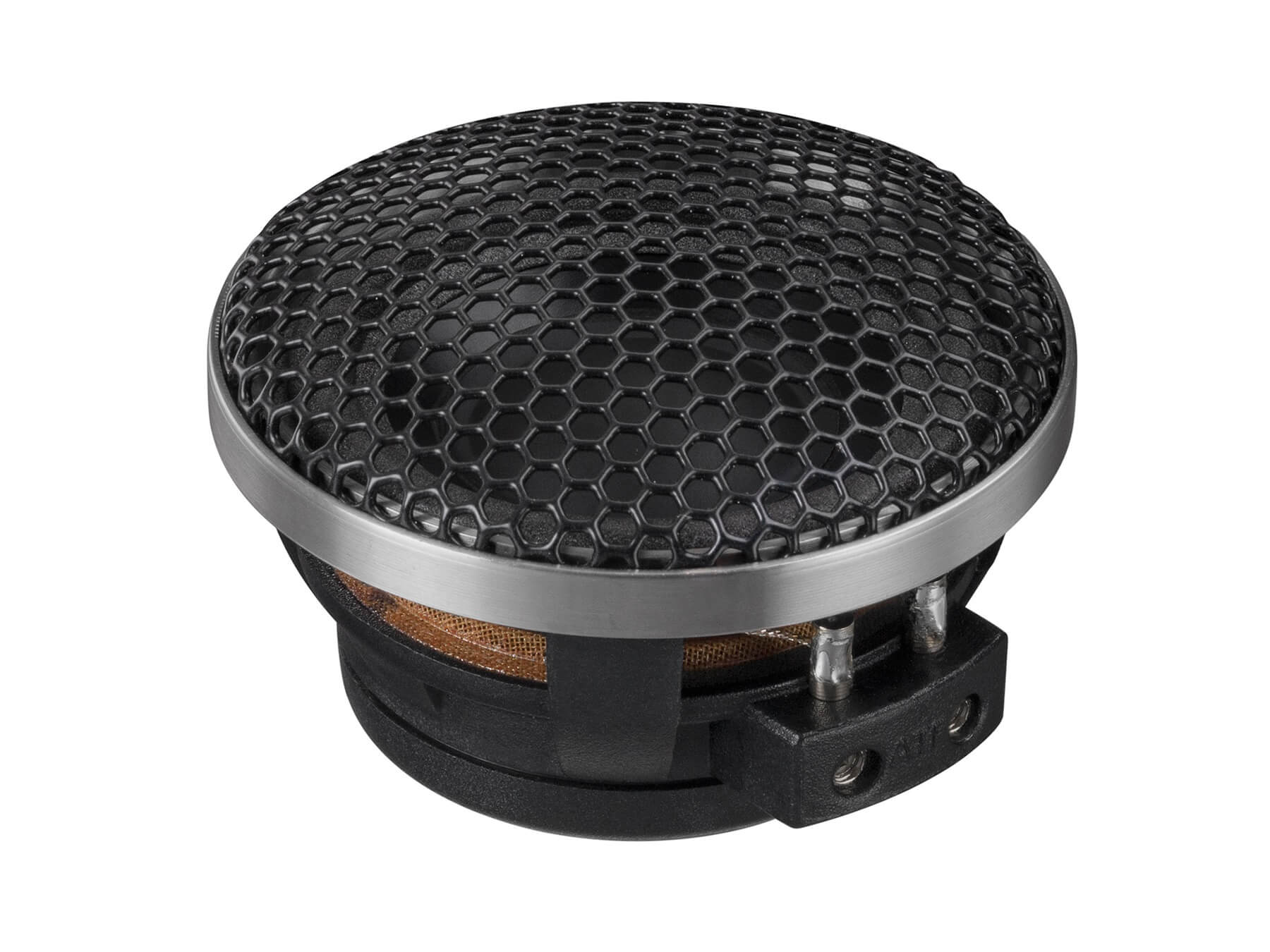

• Sturdy protection grille for protecting the cone from damages
• Aerodynamically optimized basket
• Extremely compact dimensions ideal for installation in the A-pillar – outer diameter almost identical to tweeter BRAX GRAPHIC GL1


What's in the Box?

• 2 x High-End Cone Midrange Speaker BRAX GRAPHIC GL2
• 2 x Mounting clip
• 1 x Allen key
• 1 x Data sheet

Technical Specifications

• Power RMS / max: 80 / 120 Watts (highpass > 400 Hz at 24 dB/Oct.)
• Impedance: 4 Ω
• DC resistance: 3.1 Ω
• Frequency response: 400 - 20000 Hz
• Resonance frequency: 165 Hz
• Sensitivity SPL: 84 dB @ 1W / 1m
• Voice coil diameter: 19 mm / 0.75"
• Moving mass: 1.6g
• Cone material: Aluminium cone
• Outer diameter: 60 mm / 2.36"
• Installation diameter: 53 mm / 2.1"
• Installation depth: 26. mm / 1.1"
