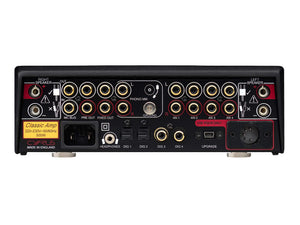

Cyrus Classic AMP - Rear Panel

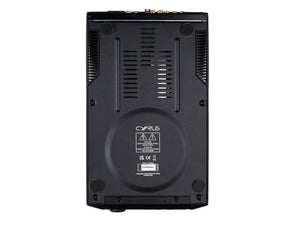

Cyrus Classic AMP - Bottom

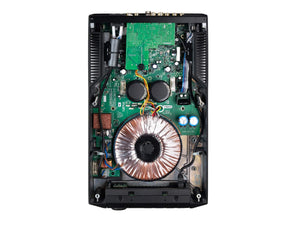

Cyrus Classic AMP - Top / Inside
1 of 4

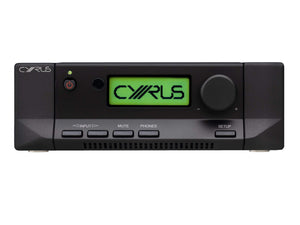

Cyrus Classic AMP - Integrated Amplifier

Sale Price £1,995.00
Tax included. Shipping calculated at checkout.
In Stock
Order in the next to get it on
SKU: cyrus-classic-amp
Visa
PayPal
Mastercard
American Express
Google Pay
Apple Pay
Klarna

The Cyrus Classic AMP is the latest update to an integrated amplifier that has been part of the Cyrus product range for over a decade.

This integrated amplifier provides a significant step up in performance from previous versions by using everything that Cyrus has learnt when developing the XR Series, but retaining the familiar design of the Classic series. The circuit design has been completely re-designed and the majority of the internal components have been upgraded by the Cyrus R&D team.

Power Amplifier

The power amplifier delivers 91W per channel into 6Ω. The wideband design responds from D.C. to beyond 50kHz to ensure a flat frequency response and minimal phase shift through the audio band.

Analogue Amplifier

The analogue preamp features relay input selection for the five analogue inputs and a precision gain control for volume. The design is intentionally wide bandwidth.

Power Supply

The power supply includes a 304VA toroidal power transformer delivering power to a high capacity power supply reserve. The preamplifier power supply is electrically separated from the power amplifier and driven from its own transformer winding. Digital control circuits are assigned a separate mains power supply, completely isolated from the signal circuitry.

PSX-R

The Classic AMP includes a port for the PSX-R power supply. Power from the PSX-R is routed internally to the analogue stages of the preamplifier to provide a more stable, low-noise power supply for the analogue preamp and post-DAC stages of the D/A converter.

Technical Specifications

Line Audio Performance Power Output (2 ch driven) 112 W @ 4 Ohms
Power Output (2 ch driven) 91 W @ 6 Ohms
Power Output (2 ch driven) 70 W @ 8 Ohms
THD+N (1kHz, 2/3 power) @ 6 Ohms <0.002%
Input Sensitivity (91W / 6Ω) 225mV
Input Impedance 28kΩ
Max Input Signal 2.5V
Frequency Response (-3dB) <0.5Hz, <50kHz
S/N Ratio (unwtd) <100dB
Phono Audio Performance Input Sensitivity (91W / 6Ω) 2.3mV
Input Impedance 47kΩ
Max Input Voltage (1kHz) 25mV
Phono Stage Gain (1kHz) 80dB
RIAA Tolerance <0.5dB
S/N Ratio (unwtd, ref 91W / 6Ω, vol -6dB) 83dB
THD <0.07%
Digital Audio Performance Input Voltage 500mV pk-pk
Input Impedance 75Ω
Sample Rate Range 32k - 192k
Audio Formats PCM Stereo Only
S/N Ratio (0dB fs) -94dB
THD+N (0dB fs) <0.006%
Headphone Performance Recommended Headphone Impedance 16Ω - 330Ω
Output Power @ 16Ω Load 138mW
Max Output Voltage @ 330Ω Load 1.85V
Signal to Noise Ratio (unwtd) 90dB @ 35mW / 16Ω
THD @ 35mW / 16Ω <0.01%
Enclosure Dimensions (WxHxD) 215 x 75 x 365mm
Weight 6.7kg

Further Information

Cyrus Classic AMP - User Manual (PDF)
