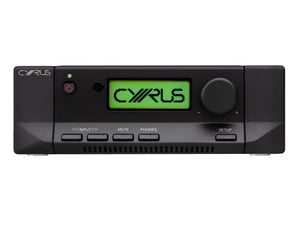

Cyrus Classic PRE - Pre-Amplifier
The Cyrus Classic PRE is the latest update to a preamplifier that has been part of the Cyrus product range for over a decade.
This preamplifier provides a significant step up in performance from previous versions by using everything that Cyrus has learnt when developing the fantastic XR Series, but retaining the familiar design of the Classic series. The circuit design has been completely re-designed and the majority of the internal components have been upgraded by the Cyrus R&D team, which has resulted in sound improvements that will help the Classic series retain a loyal fan base for years to come.
Product Features
Analogue Preamplifier
The analogue preamp features relay input selection for the five analogue inputs and a precision gain control for volume. The design is intentionally wide bandwidth.
Phono MM Input
The phono MM input stage design features dual active gain stages and passive RIAA equalisation.
Balanced / Unbalanced Inputs

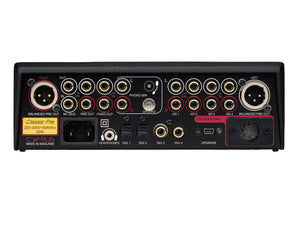

The unbalanced outputs are provided for close wired systems where the power amplifier is located close to the Classic PRE. The balanced outputs are recommended for longer cable runs in systems where the Classic PRE is driving power amplifiers placed close to the system speakers or active speakers.
High Capacity Power Supply

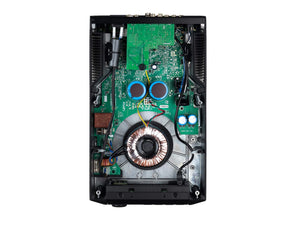

The Classic PRE power supply includes a 74VA toroidal power transformer delivering power to a high capacity power supply reserve. Within the circuit design, a total of 11 independent power supply regulators regulate, then sub-regulate quiet power. Digital control circuits are assigned a separate mains power supply, completely isolated from the signal circuitry.
PSX-R
The Classic PRE includes a port for the PSX-R power supply. Power from the PSX-R is routed internally to the analogue stages of the preamplifier to provide a more stable, low-noise power supply for the analogue preamp and post-DAC stages of the D/A converter.
Technical Specifications
Line Audio Performance | Input Impedance (LINE) | 28kΩ |
---|---|---|
Output Impendance (LINE) | 47Ω | |
Output Impendance (BAL PER PHASE) | 47Ω | |
Max Input Voltage (LINE) | 2.5V | |
System Gain (LINE) | 6dB | |
System Gain (BAL) | 12dB | |
Max Output Voltage (LINE) | 2.5V | |
Max Output Voltage (BAL) | 5V | |
Frequency Response -3dB (LINE) | <0.5Hz, >100kHz | |
Signal to Noise Ratio unwtd (LINE ref 2V out) | 110dB | |
THD (LINE ref 2V out) | <0.001% | |
Phono Audio Performance | Input Impedance | 47kΩ |
Max Input Voltage (1kHz) | 25mV | |
Phono Stage Gain (1kHz) | 40dB | |
RIAA Tolerance | <0.5dB | |
S/N Ratio (unwtd, ref 2V out) | 83dB | |
THD | <0.07% | |
Digital Audio Performance | Input Voltage | 500mV pk-pk |
Input Impedance | 75Ω | |
Sample Rate Range (SPDIF) | 32k - 192k | |
Audio Formats (SPDIF) | PCM Stereo | |
S/N Ratio (Pre-Out 0dB fs) | >97dB | |
THD+N (Pre-Out 0dB fs) | <0.003% | |
Headphone Performance | Recommended Headphone Impedance | 16Ω - 330Ω |
Output Power @ 16Ω Load | 138mW | |
Max Output Voltage @ 330Ω Load | 1.85V | |
Signal to Noise Ratio (unwtd) | 90dB @ 35mW / 16Ω | |
THD @ 35mW / 16Ω | <0.01% | |
Enclosure | Dimensions (WxHxD) | 215 x 75 x 365mm |
Weight | 4.4kg |
