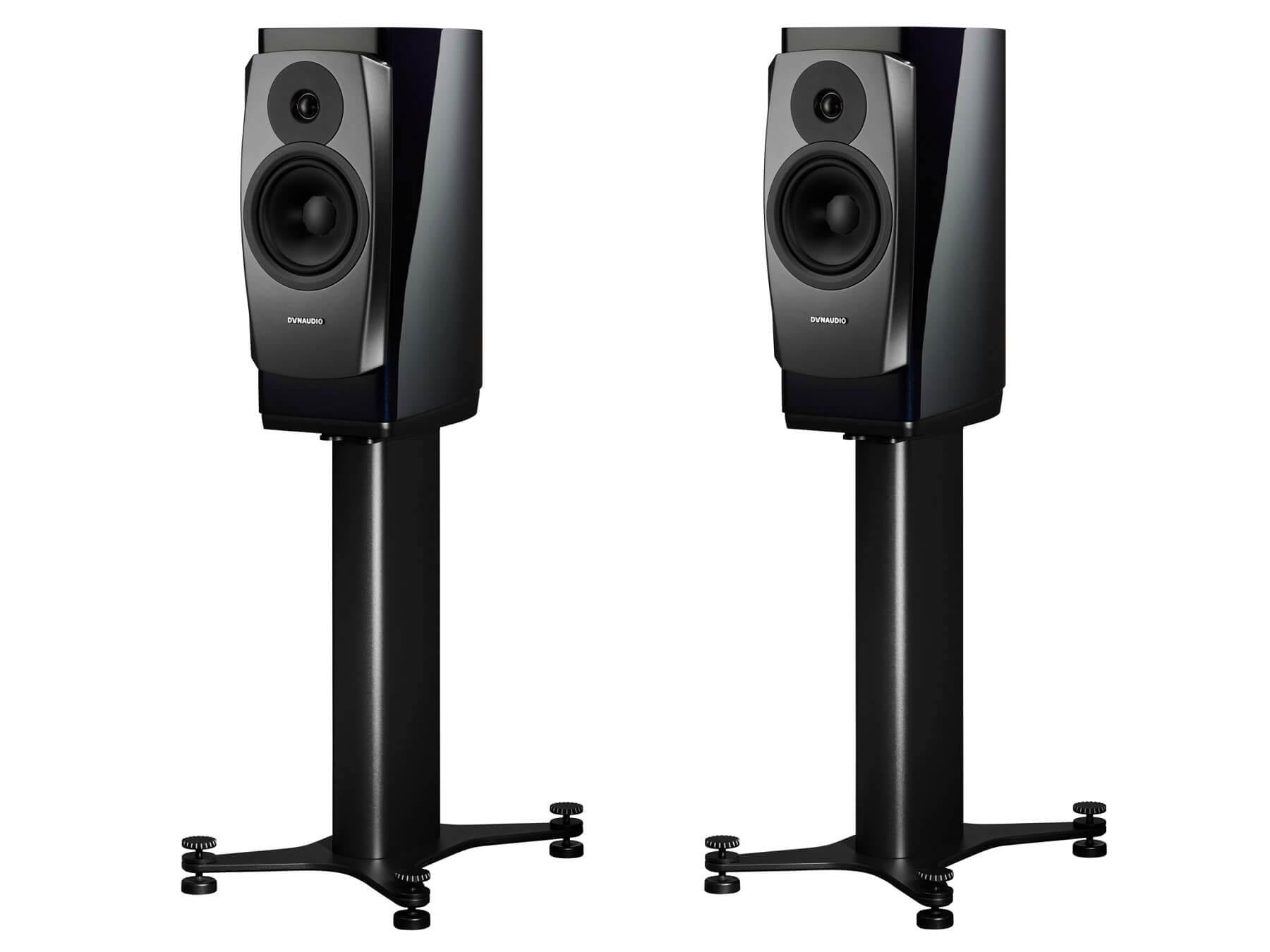

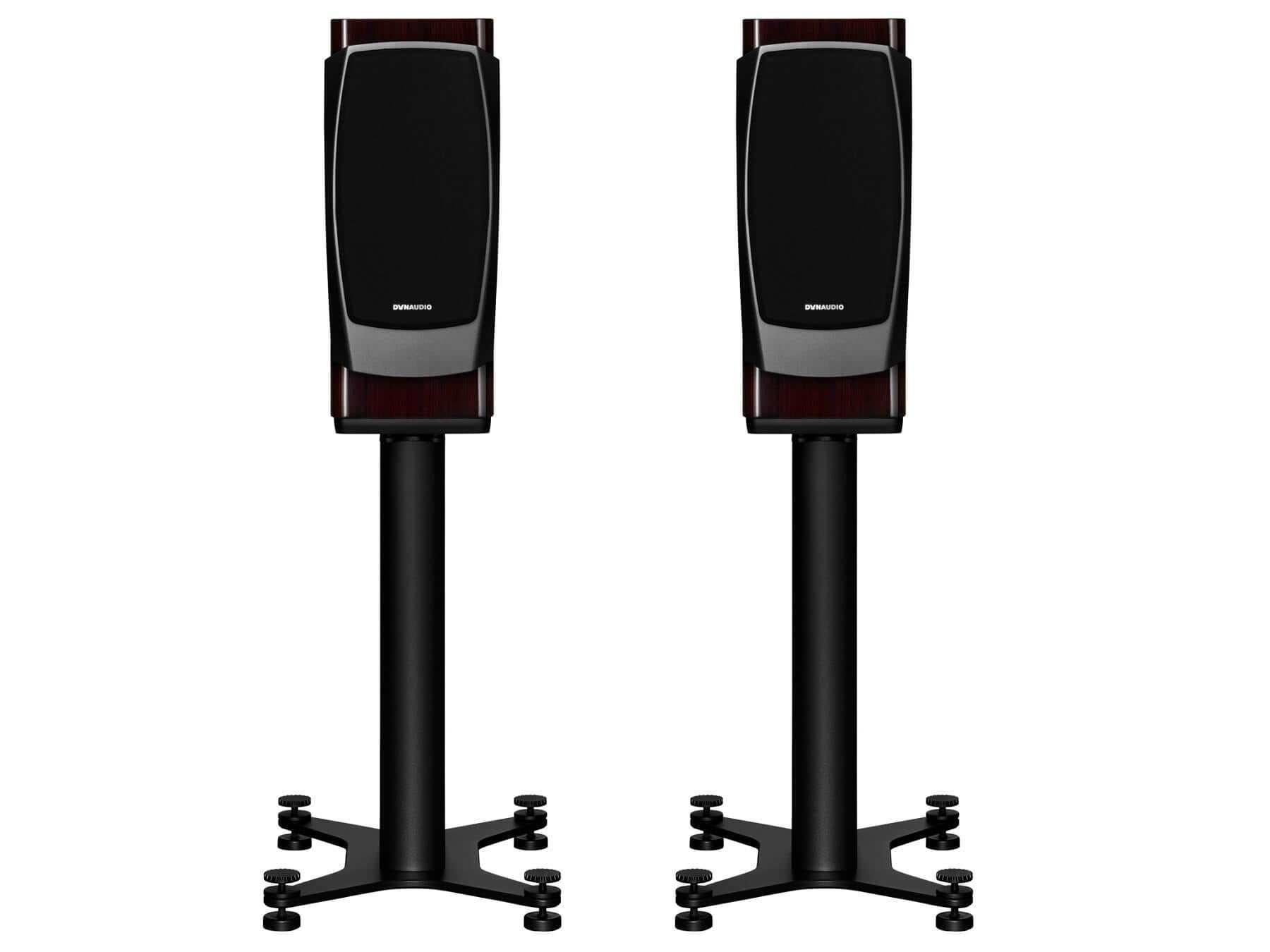

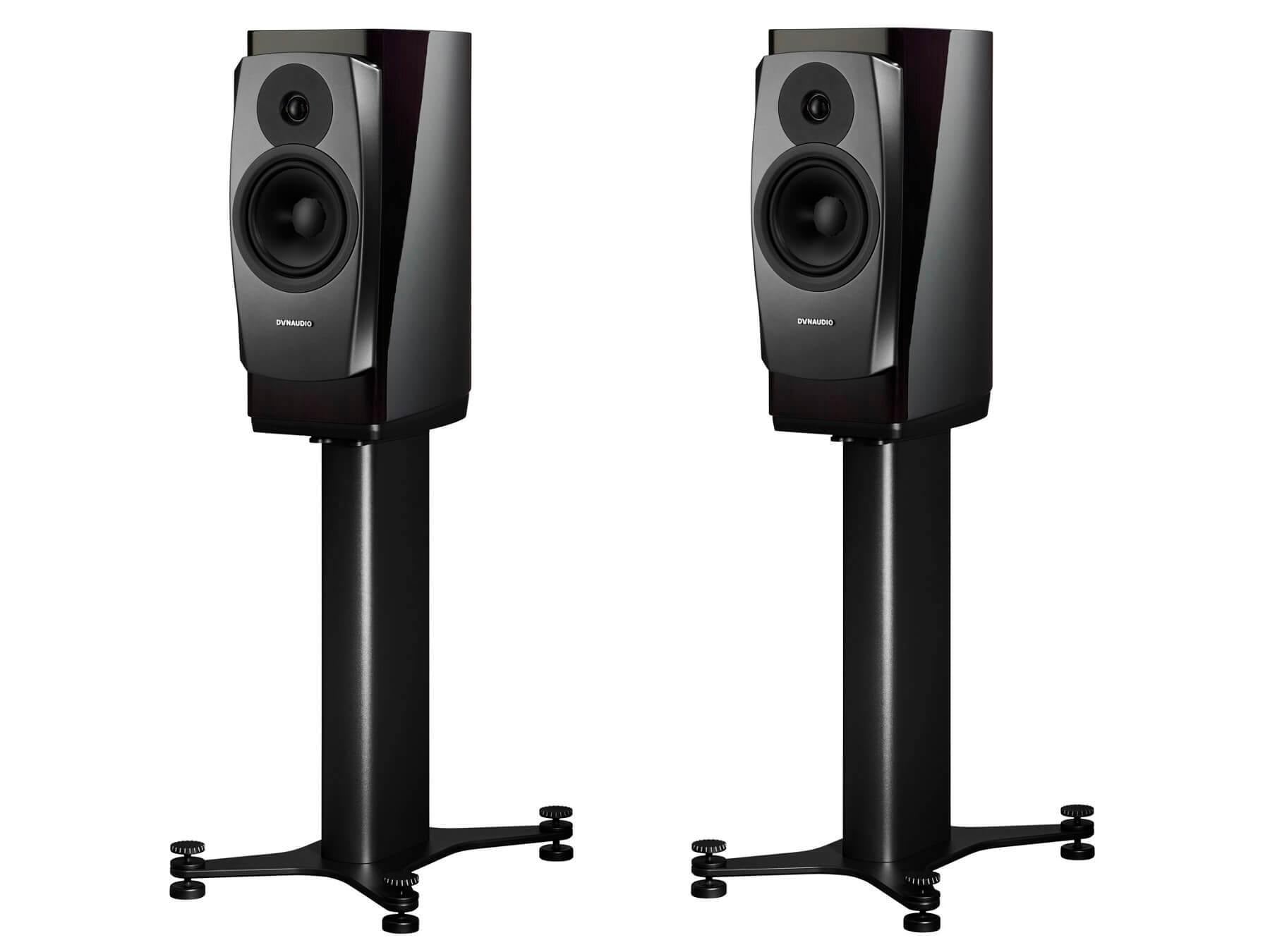

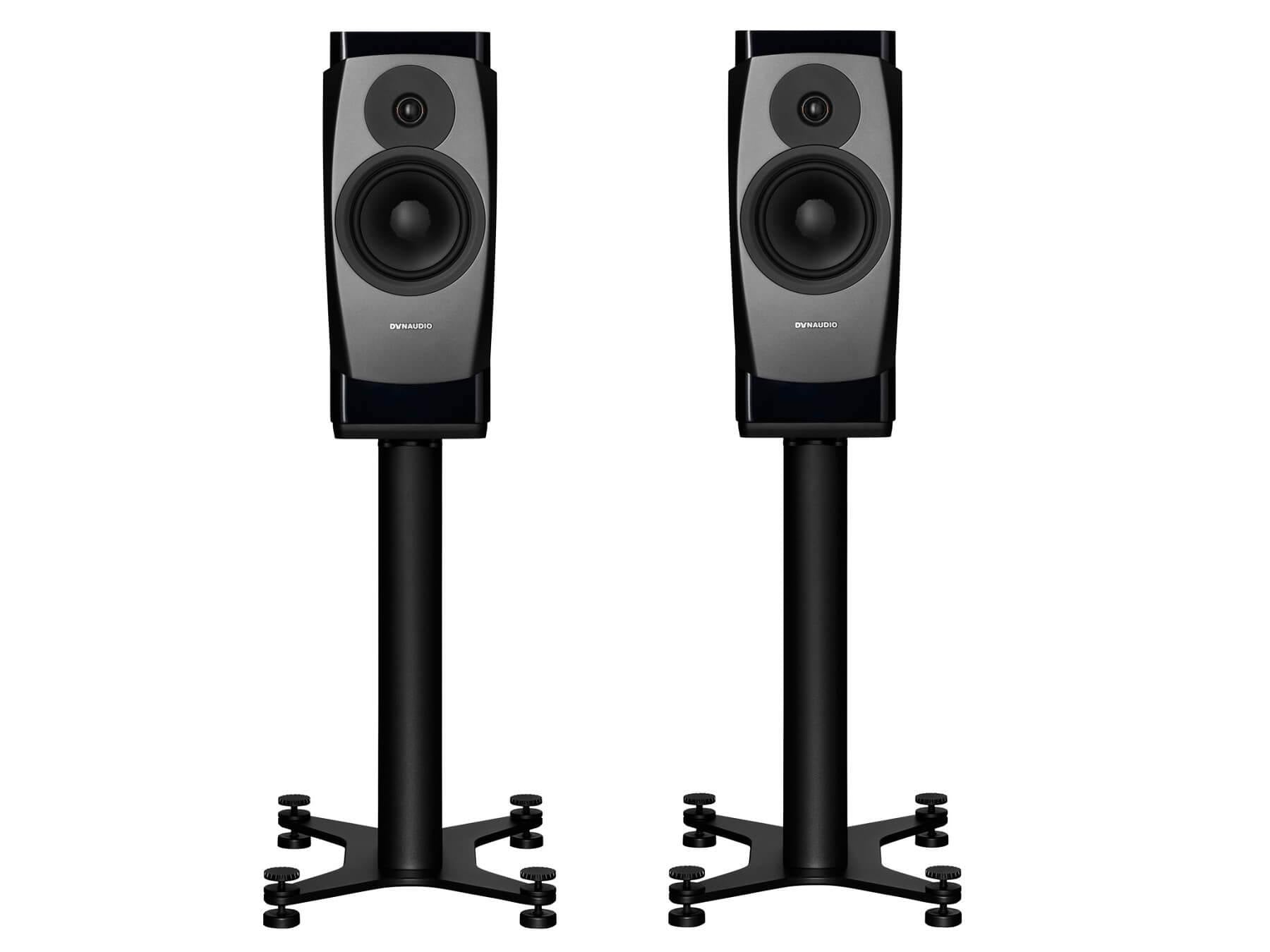

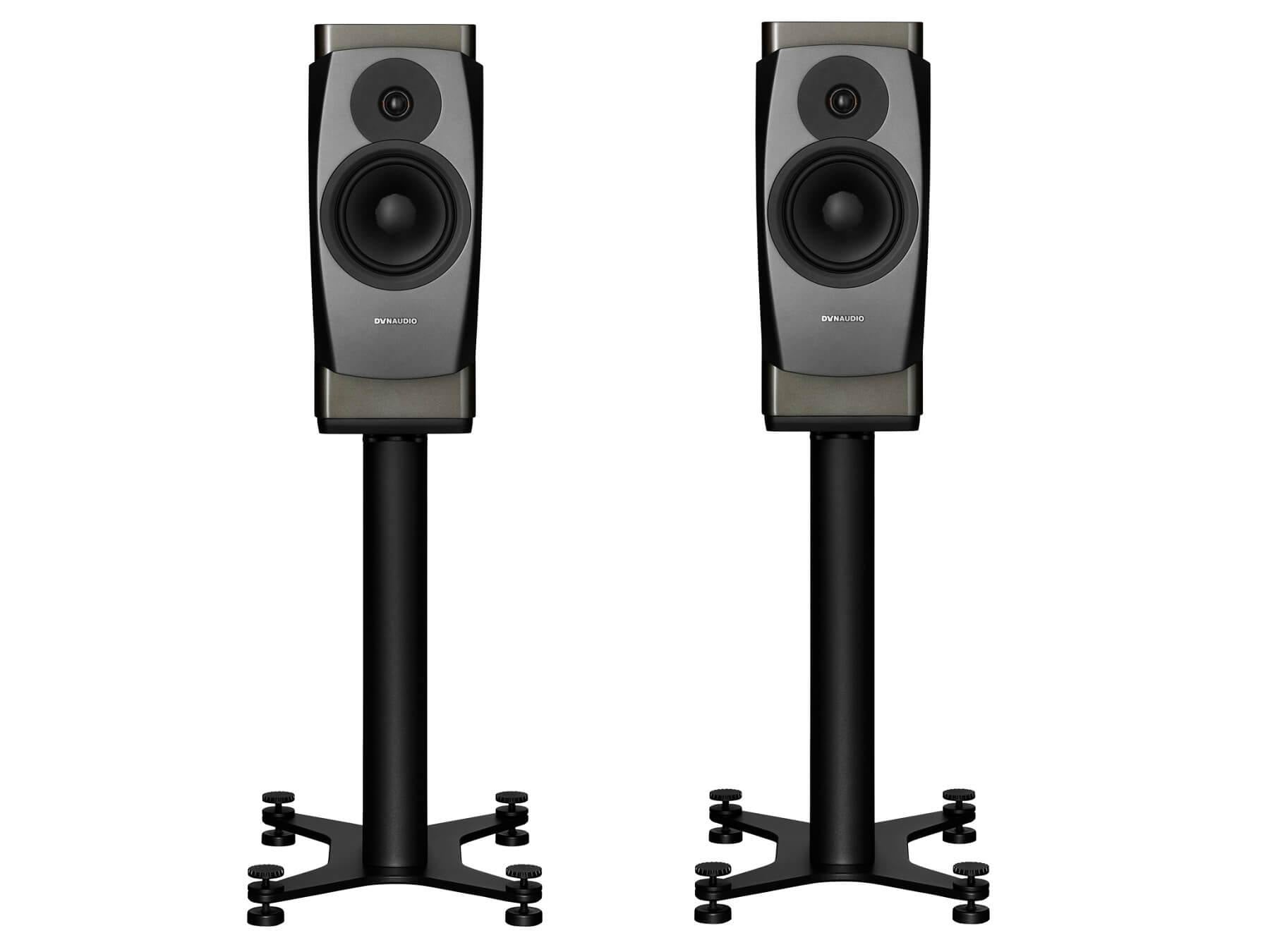

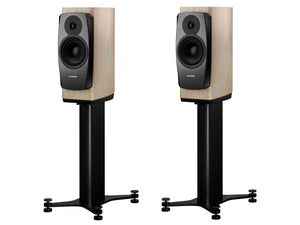

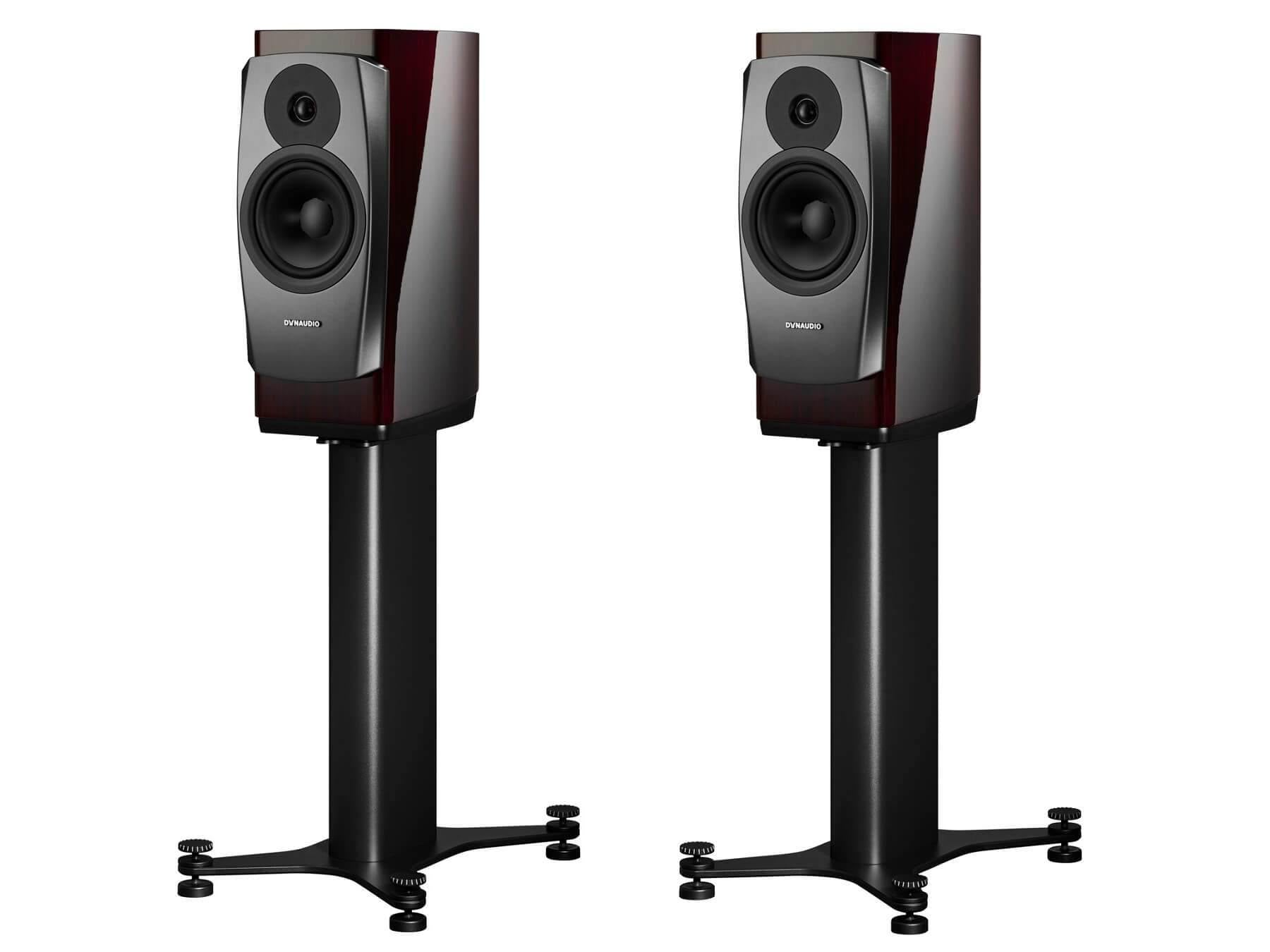

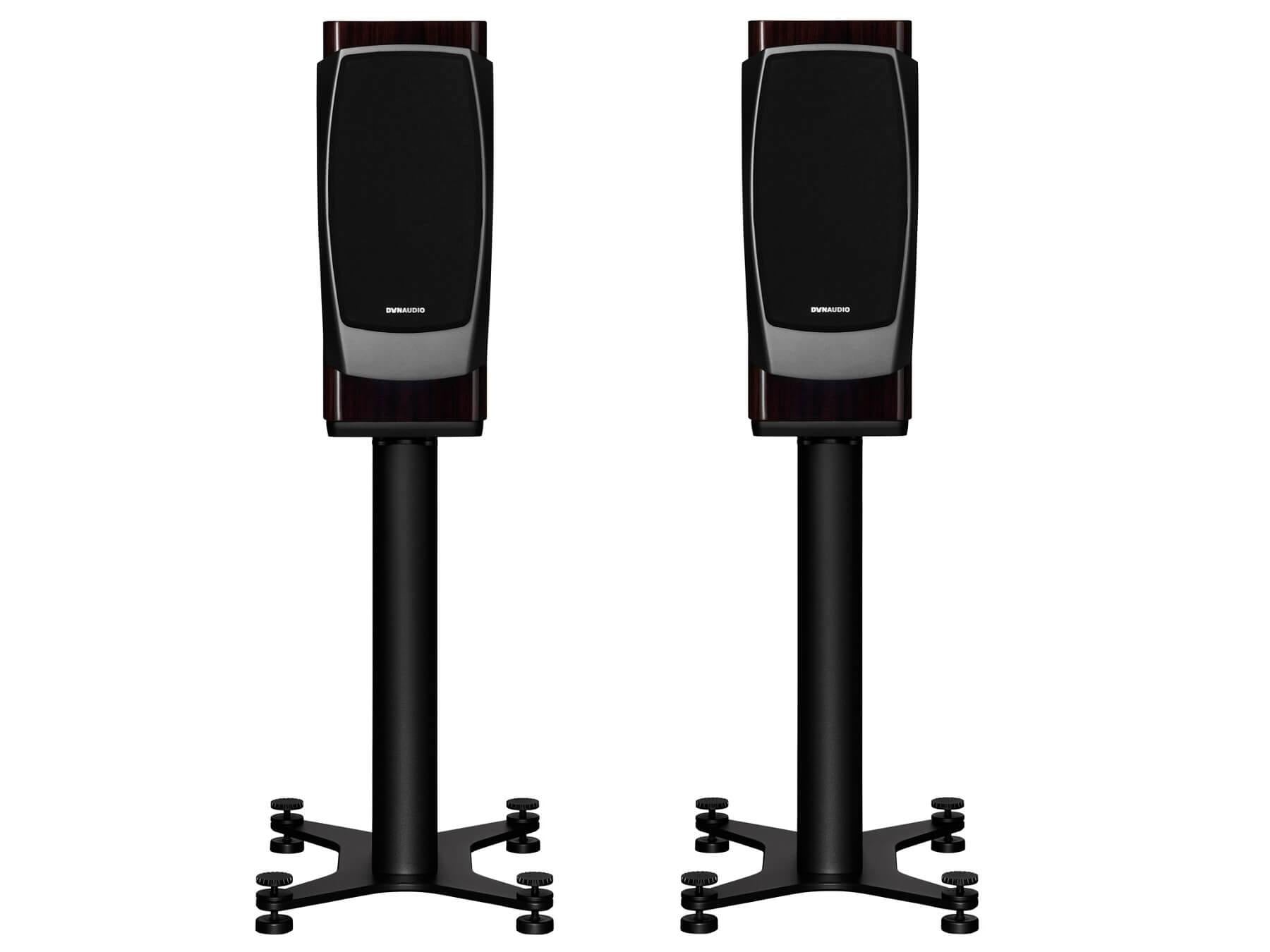

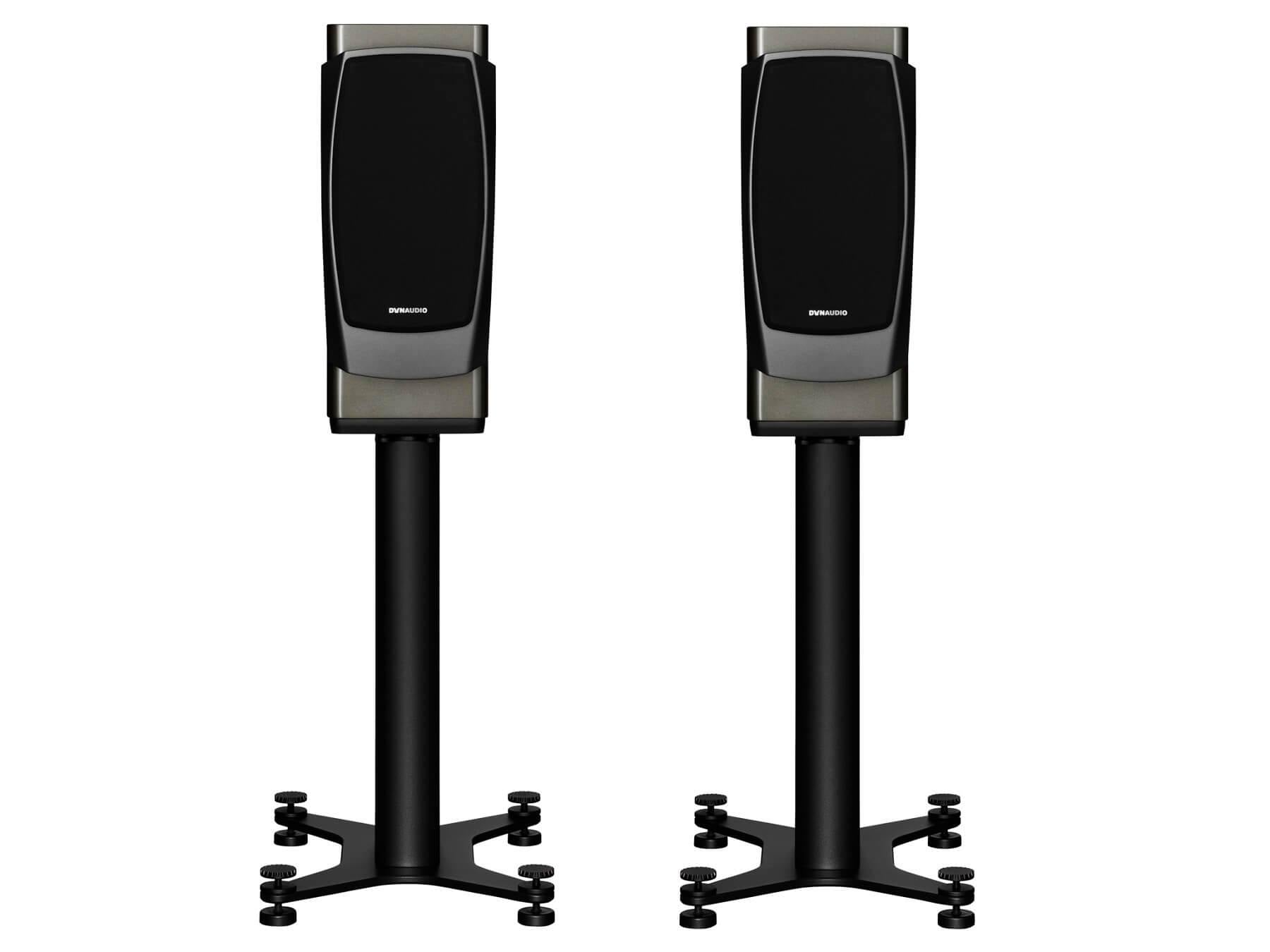

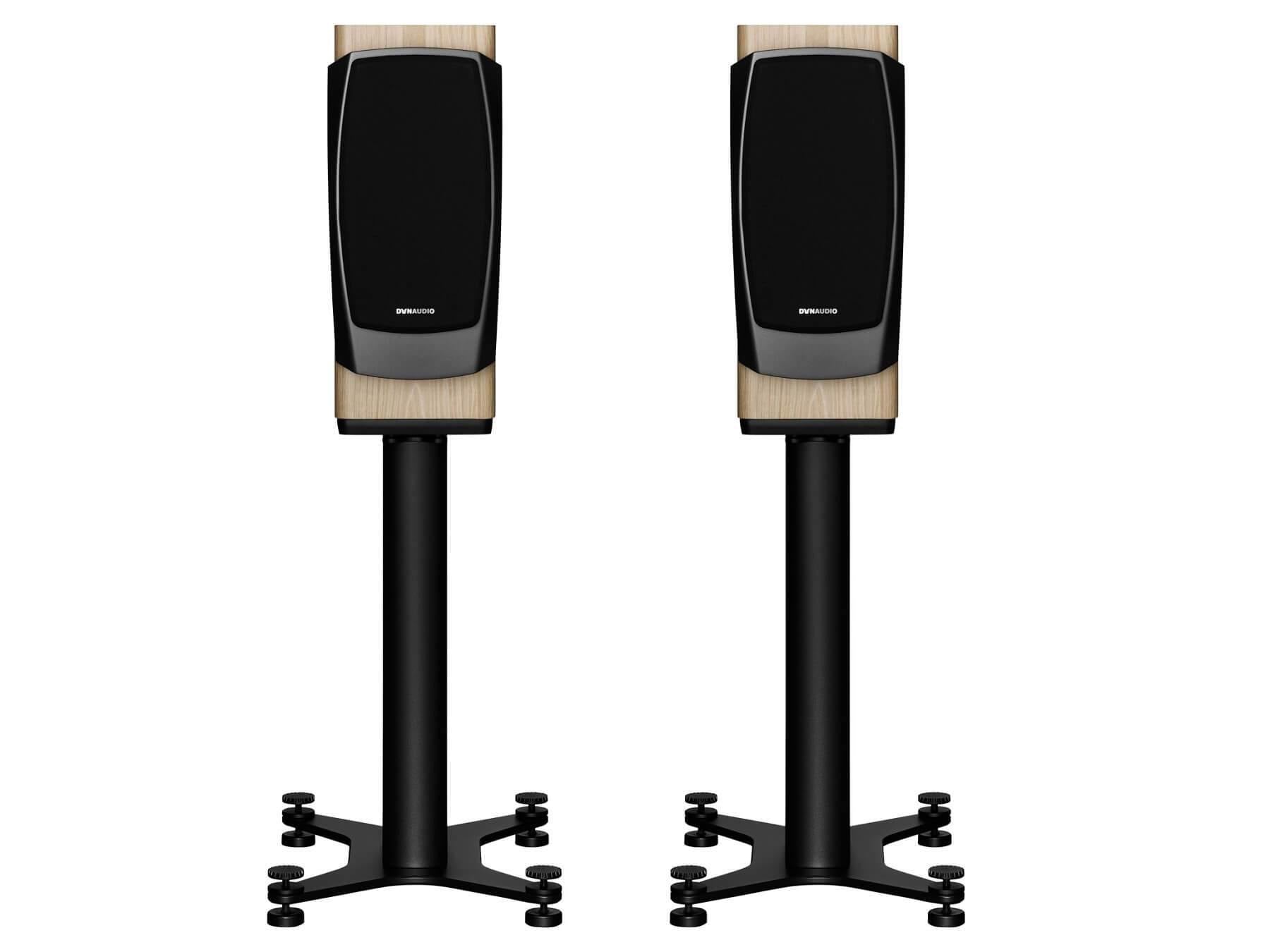

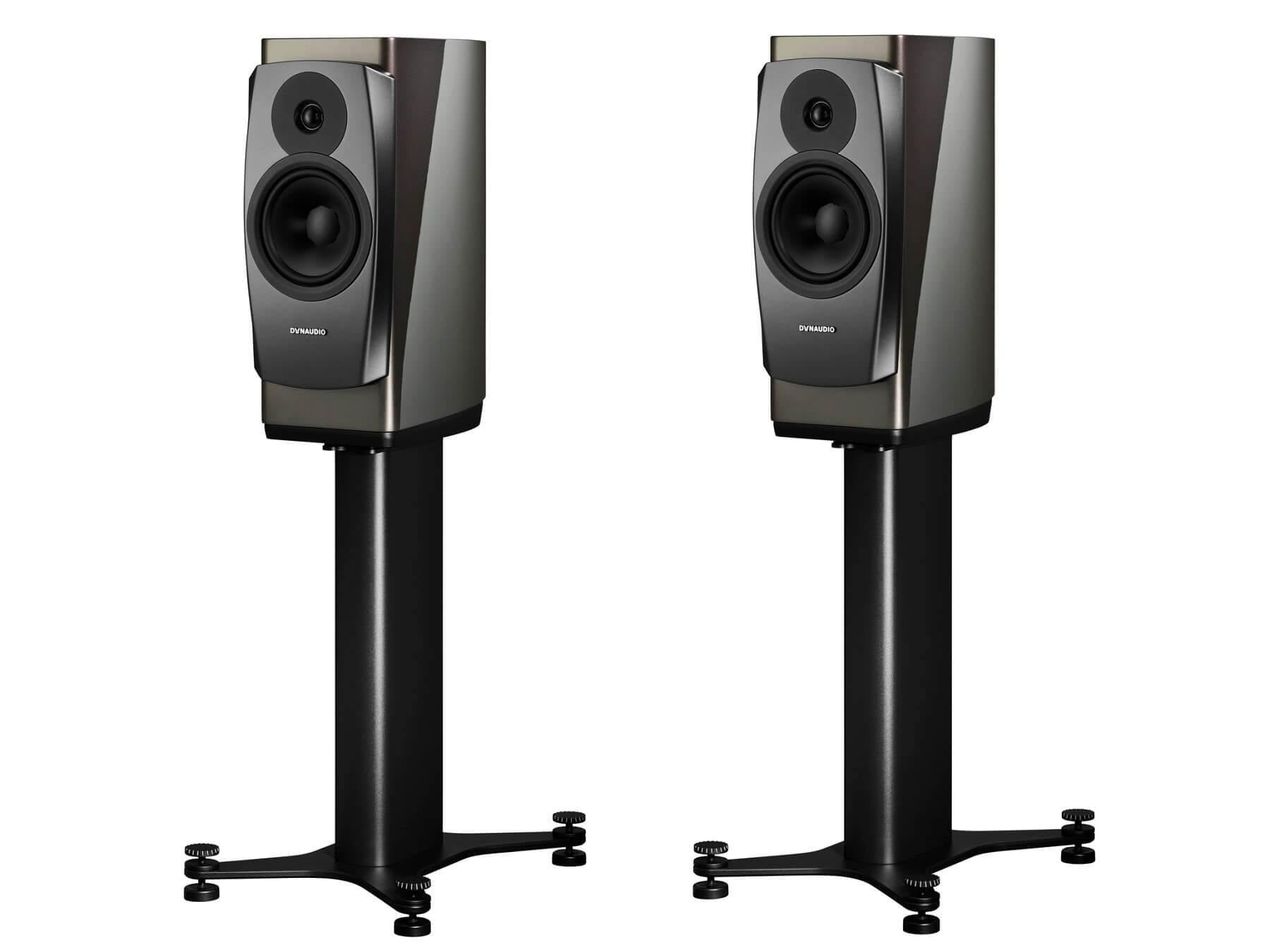

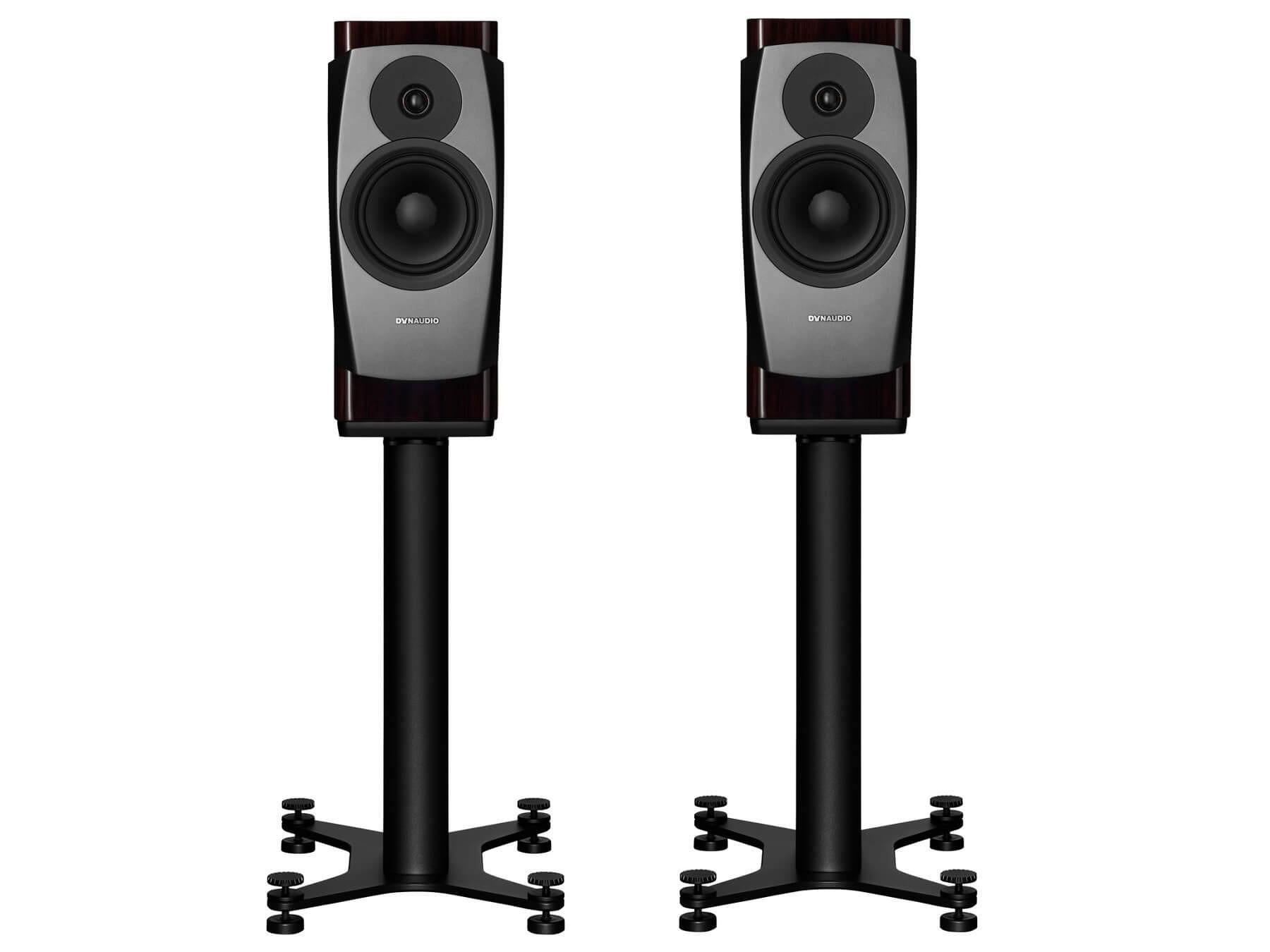

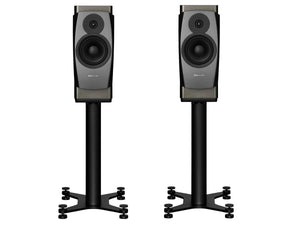

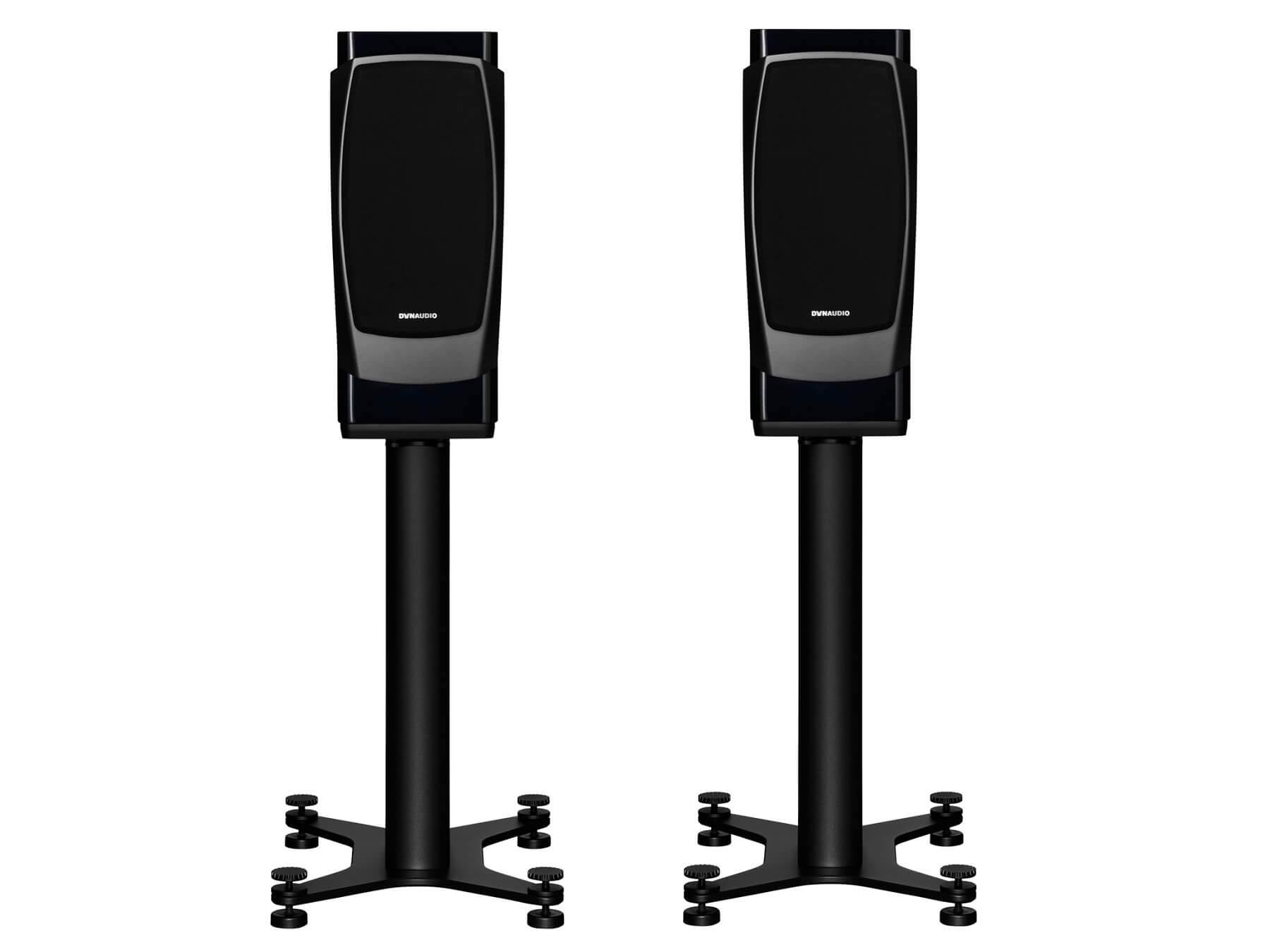

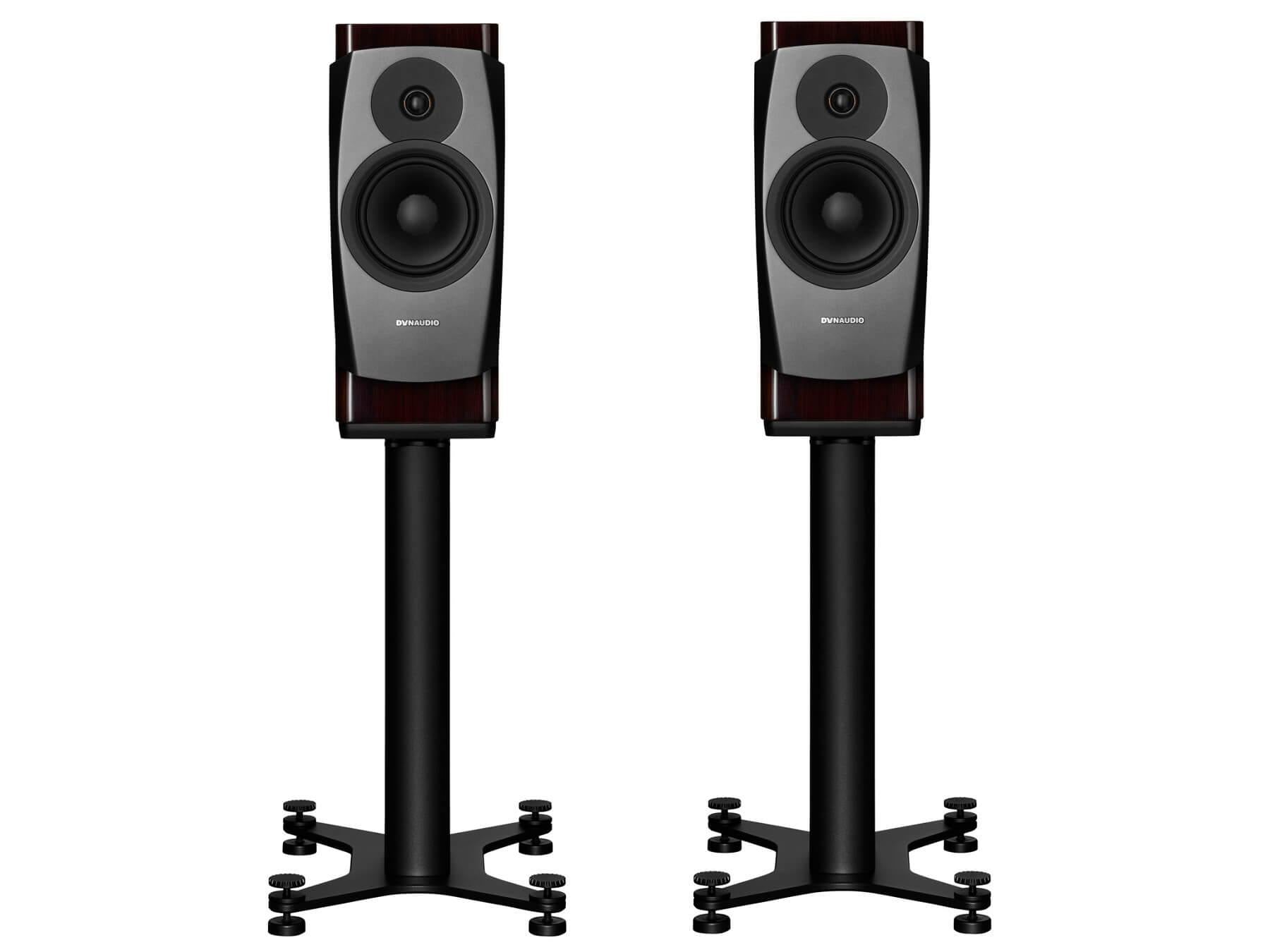

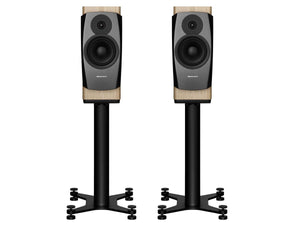

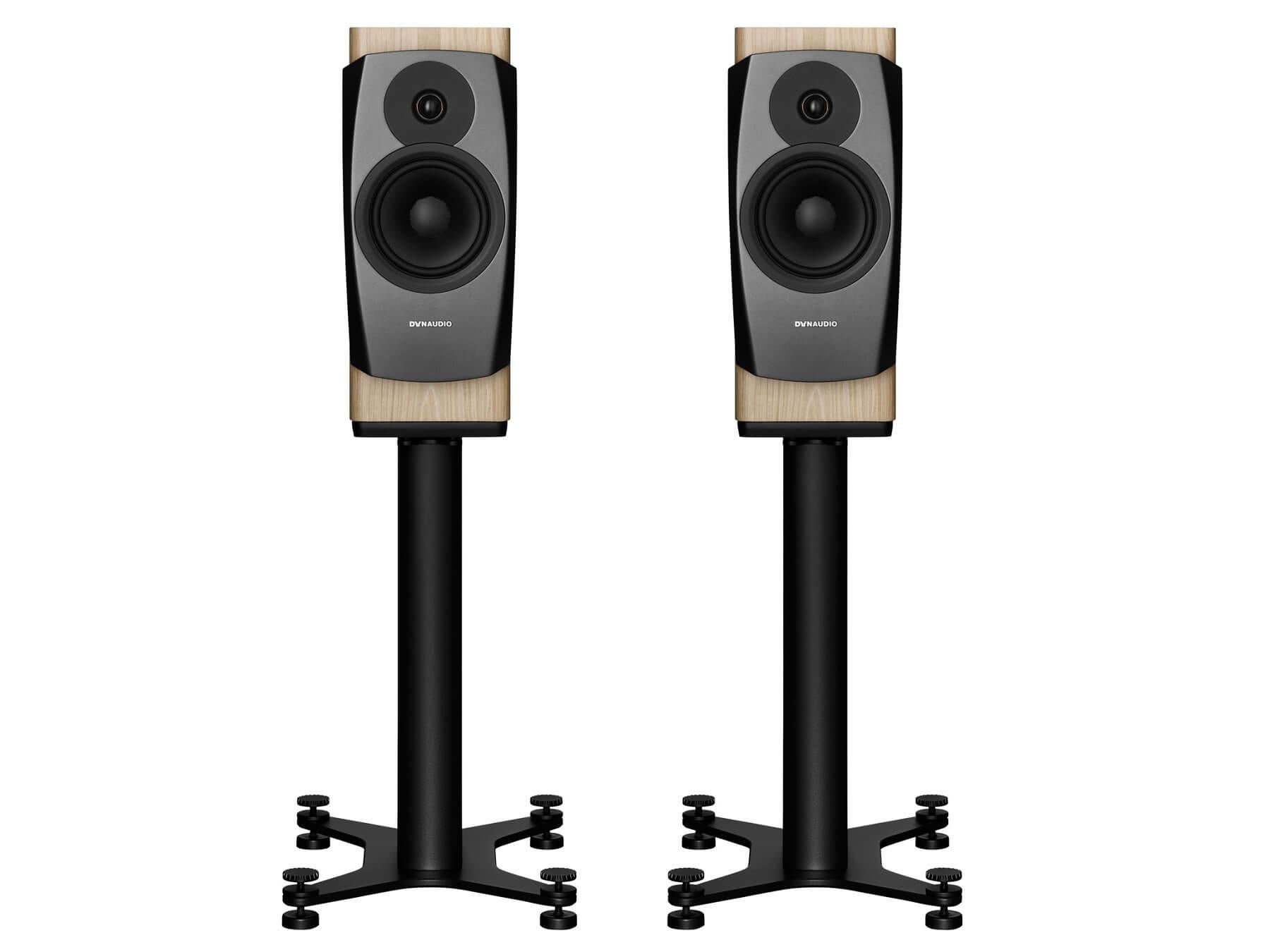

The Dynaudio Confidence 20 Standmount Speakers take the performance, passion and power of the Confidence 50 and 60 speakers, and puts it on a stand.
Dynaudio has spent years looking at how they could improve on the previous range of Confidence speakers. And, after almost countless hours in design labs, their state-of-the-art Jupiter measuring facility, modelling and simulation suites – and, of course, listening rooms – they've done it.
Like the rest of the range, the Confidence 20 features the all-new 28mm Esotar3 soft-dome tweeter, plus a new 18cm NeoTec MSP woofer and an innovative down-firing bass port.
Its drivers feature cutting-edge developments in airflow technology (including a much larger rear chamber and optimised venting in the tweeter, plus the new resonance-stabilising Hexis inner dome); simulation-derived diaphragm thickness; super-powerful neodymium magnets; and the new Compex front baffle.
The new 28mm Esotar3 soft-dome tweeter takes over 40 years of Dynaudio expertise, plus plenty of new learnings from the award-winning Esotar Forty unit – and rolls it all into the finest tweeter Dynaudio have ever created. A powerful neodymium magnet system, innovations in airflow routing, the new resonance-busting Hexis inner dome… it all combines to increase detail, clarity and sensitivity.
The new 18cm NeoTec MSP woofer also has neodymium under the hood, and uses glass-fibre in its voice-coil former for optimum stiffness. The voice-coil itself is aluminium, which lets us use the ideal weight (or lightness, depending on your point of view) for powerful and controlled bass as well as refined midrange. And the entire woofer motor has been designed to harness airflow using an innovative new venting system that’s been machined directly into the magnet.
Brand-new Esotar3 tweeter
The legend continues. The all-new Esotar3 is optimised for detail, finesse and performance. It includes the ingenious Hexis resonance-defeating inner dome, plus innovations in materials, airflow and more.
- Sensitivity: 87dB (2.83V / 1m)
- IEC Power Handling: 250W
- Impedance: 6 Ω (Minimum 5 Ω @ 155Hz)
- Frequency Response (± 3 dB): 42Hz–22kHz
- Box Principle: Bass reflex down-firing port
- Crossover: 2 way
- Crossover Frequency: 2325Hz
- Crossover Topology: 2nd order
- Woofer: 18cm MSP
- Tweeter: 28 mm Esotar3
- Weight: 15.2 kg/33.5 lbs
- Weight including stand: 27 kg/59.6 lbs
- Dimensions (W x H x D): 223 x 520 x 414 mm
- Dimensions with feet/grille (W x H x D): 223 x 520 x 444 mm
- Dimensions including stand: 368 x 1134 x 458 mm
