Dynaudio Confidence 60 - Floorstanding Speakers

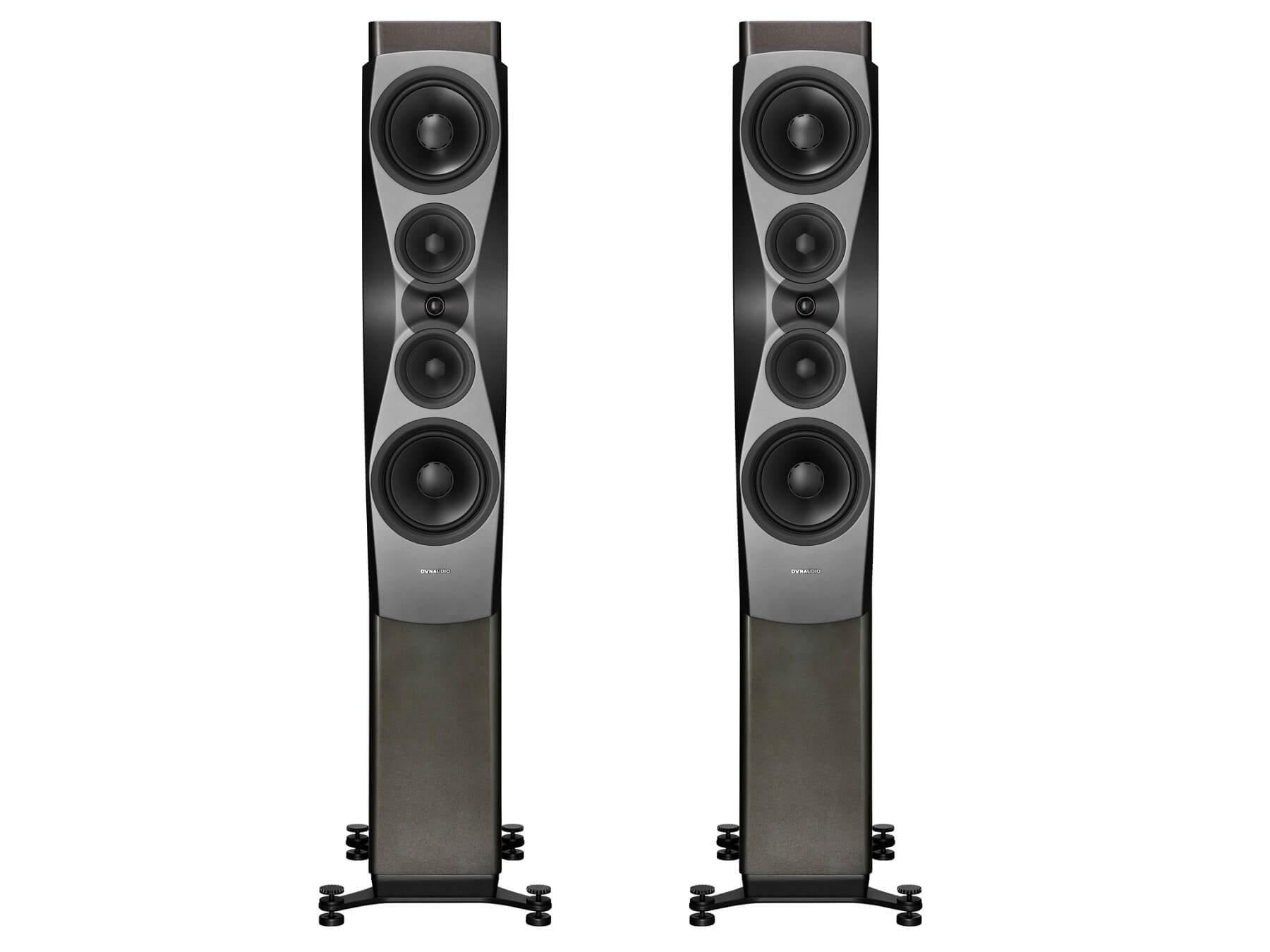

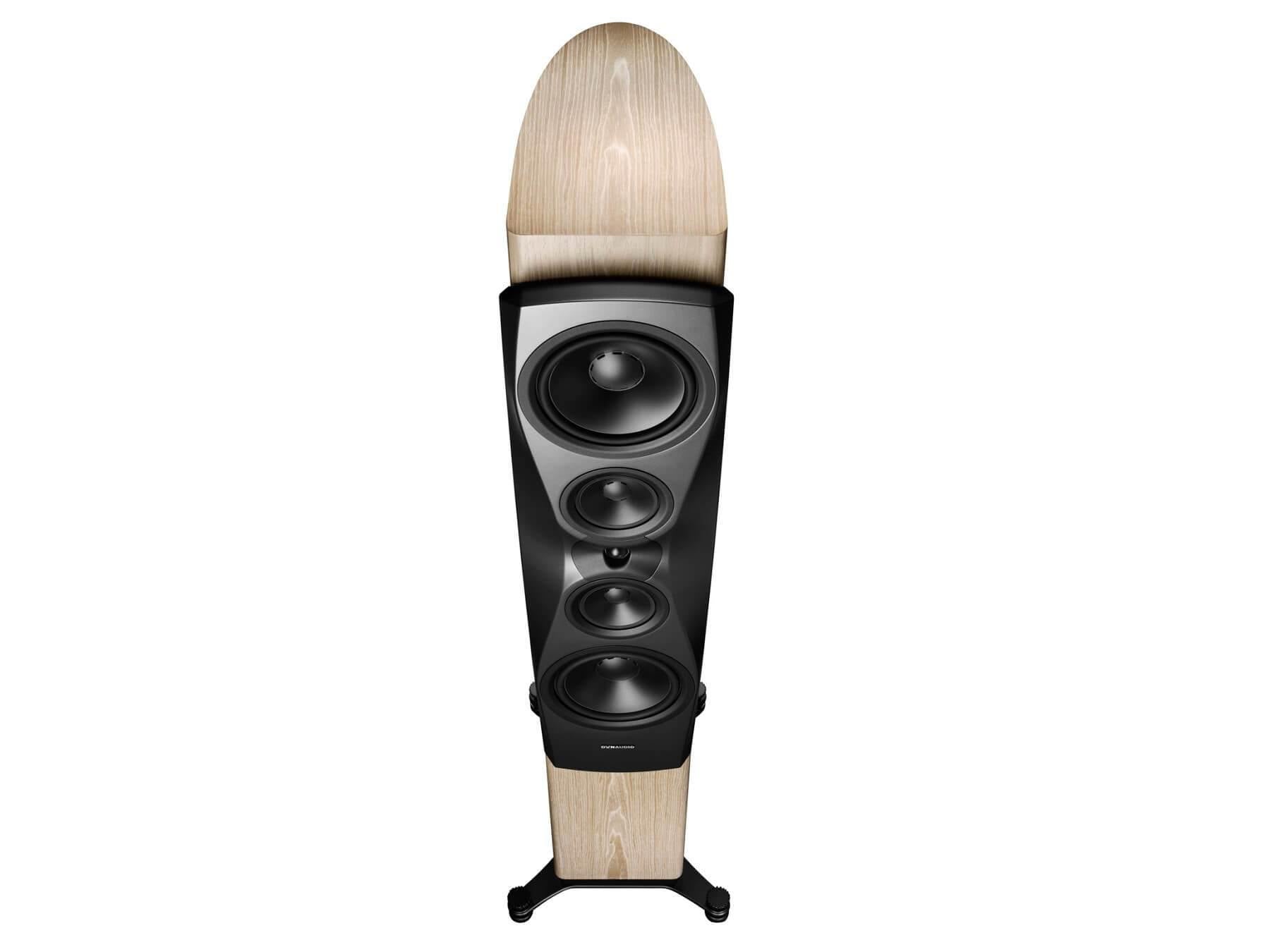

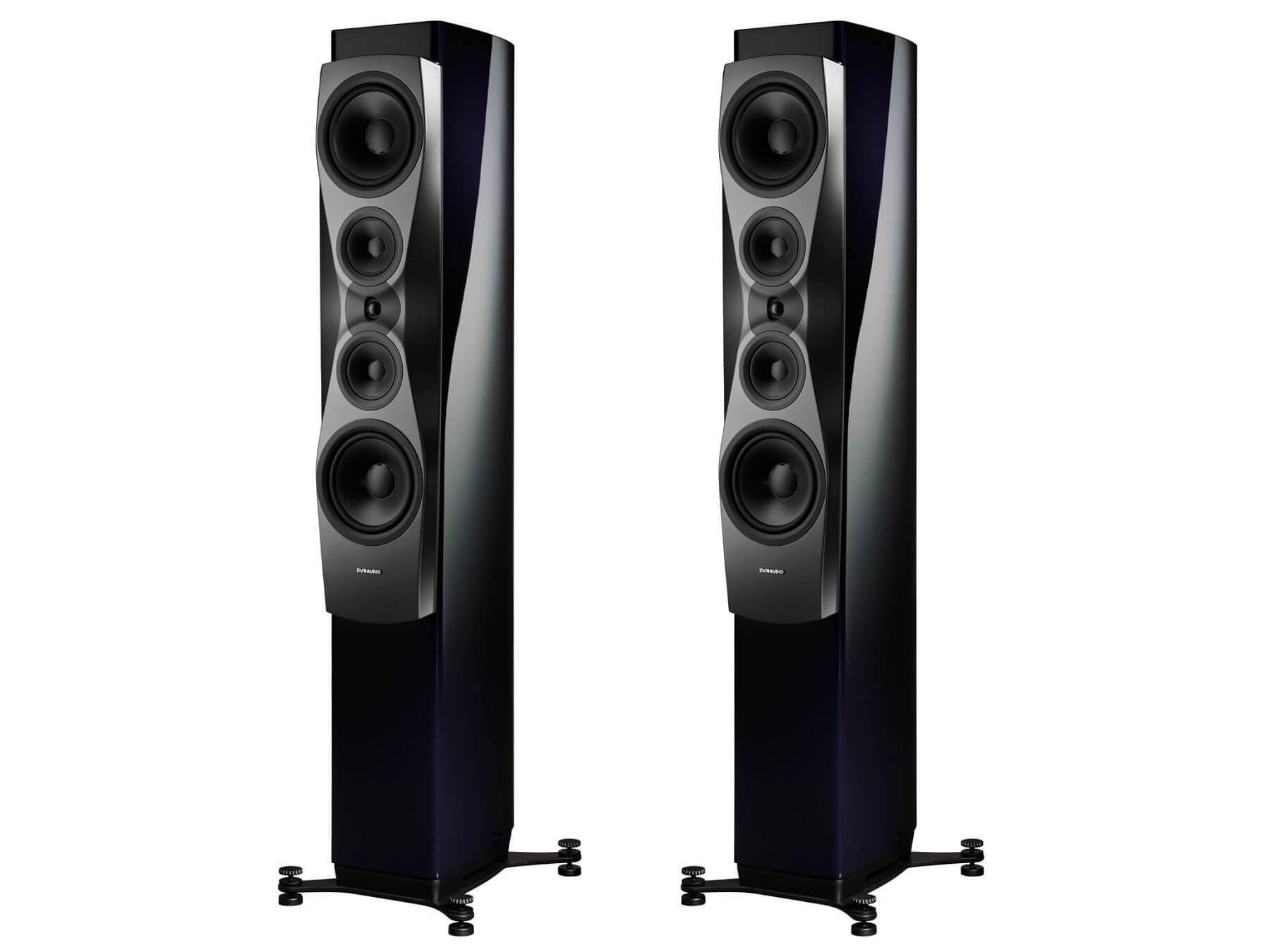

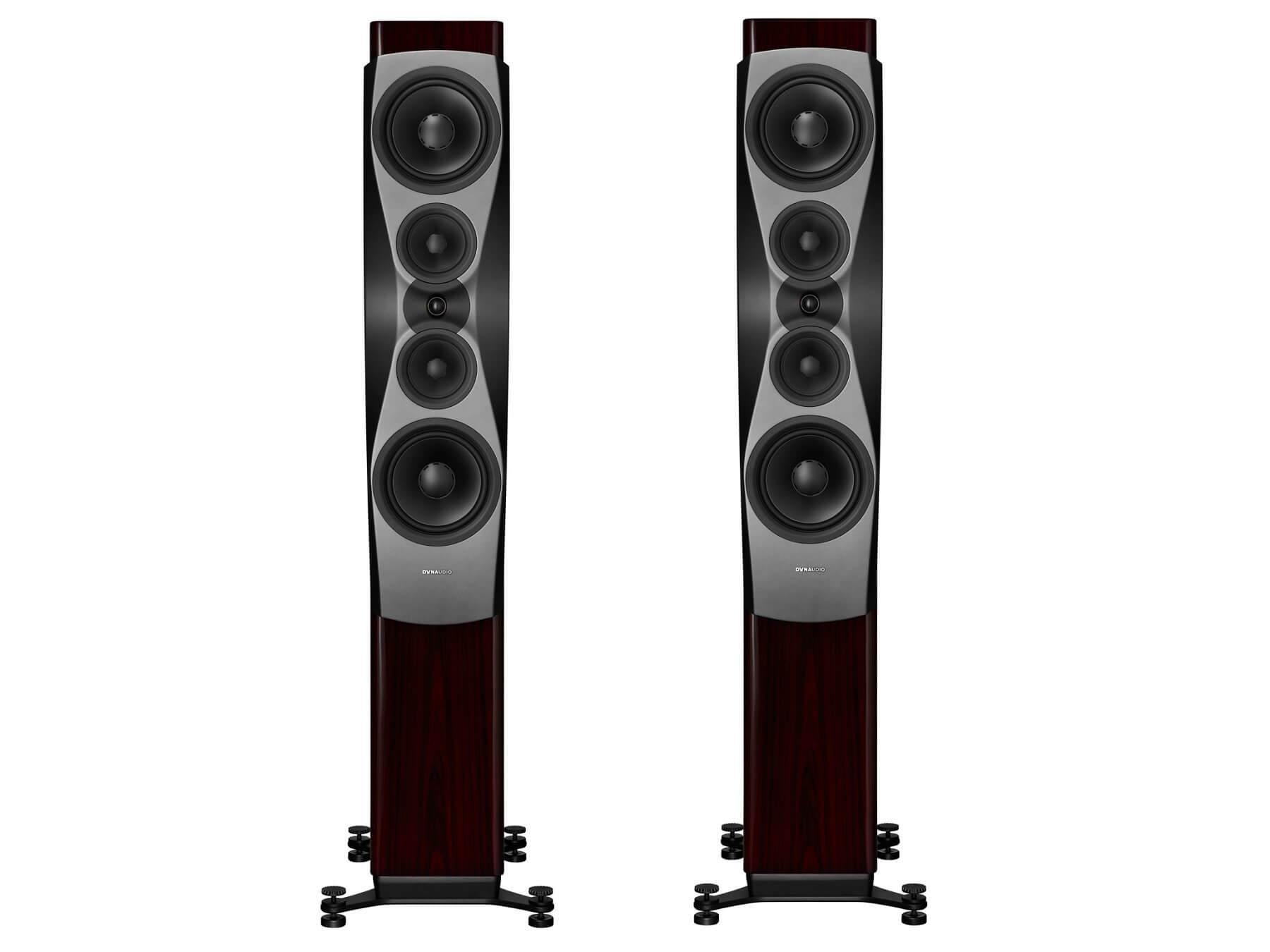

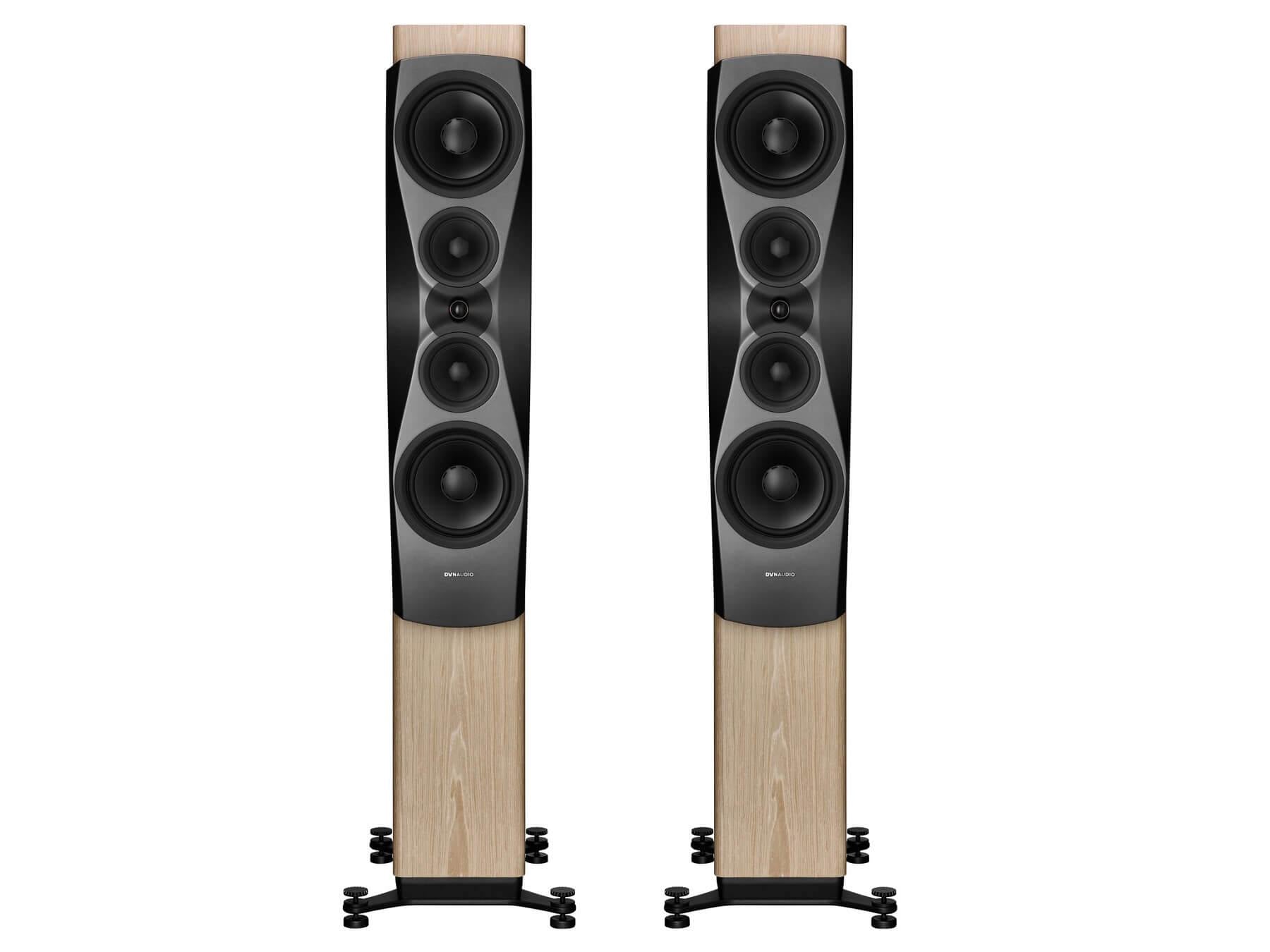

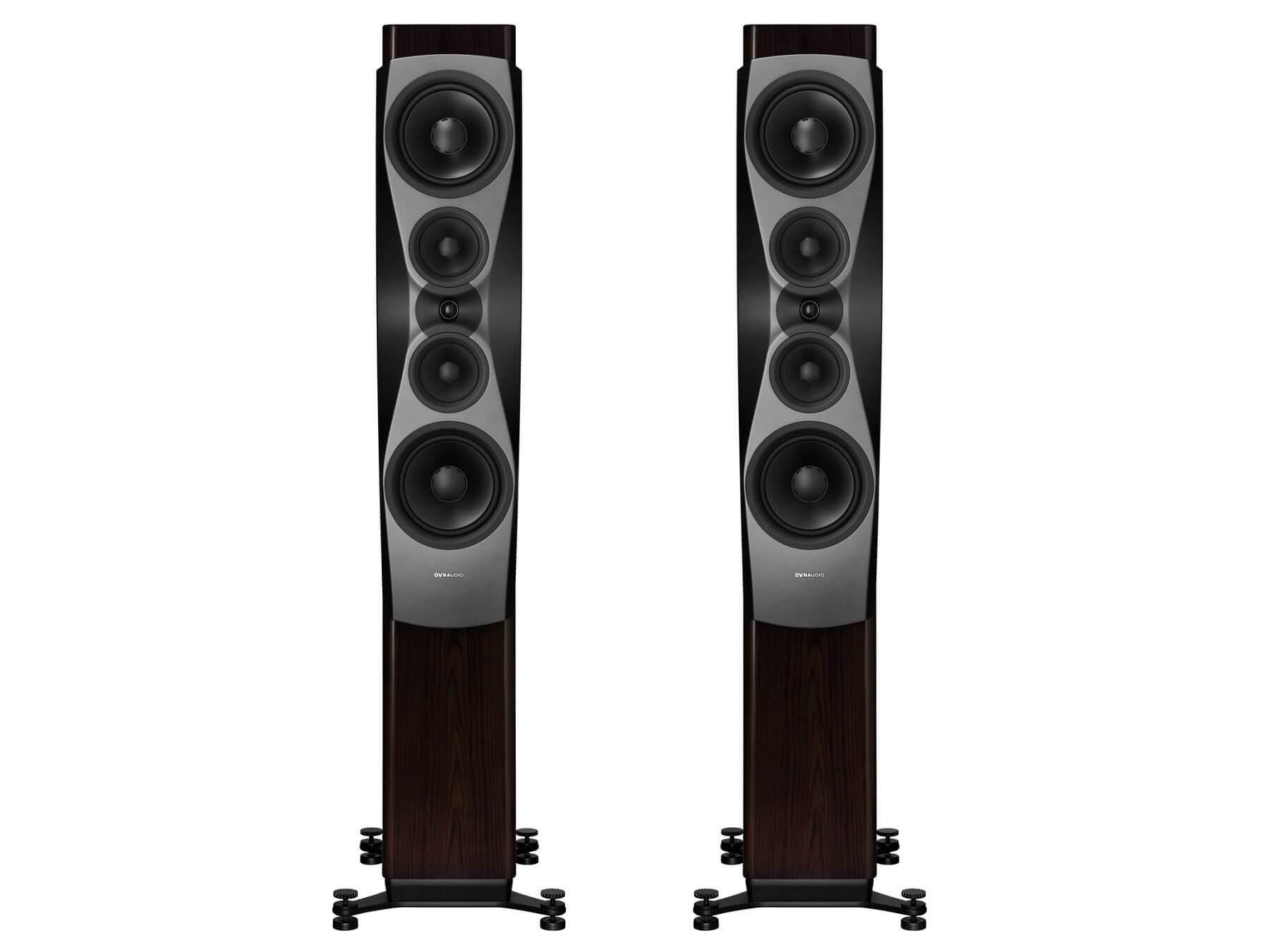

The Dynaudio Confidence 60 Floorstanding Speakers have astonishing power, scale and detail and your eyes will be drawn to the single Esotar3 28mm soft-dome tweeter in the middle. Then the twin 15cm MSP midrange drivers with Horizon Surrounds. And, finally to the two 23cm MSP NeoTec Woofers.

The drivers are all new. And they’re all part of the next generation of innovative DDC (Dynaudio Directivity Control) sound-shaping technology platform. This focuses the sound waves radiating from the speakers into a tight vertical ‘beam’ that avoids reflections from floors and ceilings while maintaining a wide horizontal image. That means a bigger sweet-spot on the couch, a happier audience, and the knowledge that you’re only hearing what the drivers are producing – and not what the room itself is bringing to the party

The star of the show is the DDC Lens – a machined aluminium waveguide integrated into the precision Compex composite baffle. This ingenious part works in conjunction with the baffle shape, the tweeter and the midrange drivers (notice their brand-new Horizon Surround, also part of the system) and the woofers to focus sound waves where they need to go: you.

In fact, everything in the Confidence 60 is designed precisely for that purpose. Even the gasket that decouples the baffle from the cabinet, and the screws that hold everything in place.

The brand-new Esotar3 28mm soft-dome tweeter takes over 40 years of Dynaudio expertise, plus plenty of new learnings from development of the award-winning Esotar Forty unit – and rolls it all into the finest tweeter Dynaudio have ever created. A powerful neodymium magnet system, innovations in airflow routing, the new resonance-busting Hexis inner dome … it all combines to increase detail, clarity and sensitivity.

The new 23cm NeoTec MSP woofers also have neodymium magnets under the hood, and use three layers of glass-fibre in their voice-coil formers for optimum stiffness. The voice-coils themselves are copper (which provides extra moving mass for tighter, more powerful and more controlled bass in this specific driver design). And the entire woofer motor has been designed to harness airflow using an innovative new venting system that’s been machined directly into the magnet.

The Confidence 60’s brand-new MSP midrange drivers are a big departure from previous Dynaudio designs.

They use a radical surround design – the Horizon – that follows the cone’s shape right to the edge of the driver. This reduces the surround’s first resonant mode to effectively increase the whole playing surface area and improve performance. They also sit flush with the baffle to reduce diffractions from the diaphragm and the adjacent tweeter.

Behind the scenes, the basket has been given a new lightweight organic design – one that’s resulted from extensive topology-optimisation simulations. It increases airflow, maintains its stability and rigidity and reduces weight simultaneously without sacrificing performance.

And it’s all finished in our trademark Danish-designed furniture-grade cabinetry. Perfect performance, perfect quality.

Technical Specifications

• Sensitivity: 87dB (2.83V / 1m)
• IEC Power Handling: 600W
• Impedance: 4 Ω (Minimum 3.7 Ω @ 71Hz)
• Frequency Response (± 3 dB): 29Hz–22kHz
• Box Principle: Bass reflex, down-firing
• Crossover: 3 way
• Crossover Frequency: 200, 2580Hz
• Crossover Topology: 2nd/3rd order with DDC
• Woofer: 2x23cm MSP
• Midrange: 2x15 cm MSP
• Tweeter: 28 mm Esotar3
• Weight: 66.2 kg/145.9 lbs
• Dimensions (W x H x D): 271 x 1634 x 469 mm
• Dimensions with feet/grille (W x H x D): 432 x 1679 x 517 mm

Further Information

Dynaudio Confidence 60 - User Manual
