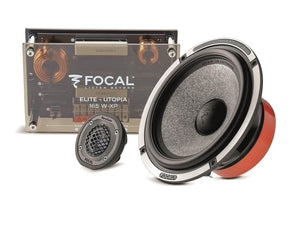

Focal Elite Utopia M 165W-XP - Passive 2-Way Speaker System

£1,299.99

In StockIn StockOut of Stock
VAT included.

Quantity: Left & Right Pair

  • Left & Right Pair
Back In Stock on - [19041994]
Out of Stock
Order within for delivery by hoursminutes

apple paygoogle payklarna-pay-latermaestromasterpaypalshopify payvisa

A leading product heralded for its performance for several years now, the 165W-XP integrates Focal's exclusives technologies: TMD® surround, progressive spider, ventilated motor, new Beryllium tweeter, bi-amplification crossover. We also gave it a new design, steeped in our DNA and geared towards performance.

The result: an uncompromising kit that opens the door to the world of Utopia.

Technologies

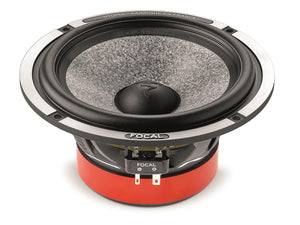

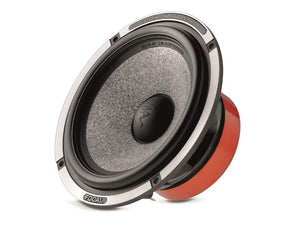

W' sandwich cone

The ‘W’ sandwich cone perfectly optimises the frequency response curve by fully mastering the three key parameters of lightness, rigidity and damping. When listening through the ‘W' sandwich cone, the sound is completely transparent with extremely little distortion.

TMD® surround

Originally developed for the Sopra line of high-fidelity loudspeakers, our TMD® (Tuned Mass Damper) surround has a unique profile, designed to better control the effects of resonance and to drastically reduce the distortion associated with deformations of the cone. The speaker driver takes advantage of this patented technology by spreading better defined and very realistic midranges.

Progressive spider

The progressive spider used on all our Utopia drivers is built around a progressive section that reproduces all the impact of the bass whilst optimising the linearity, precision and dynamics of the sound.

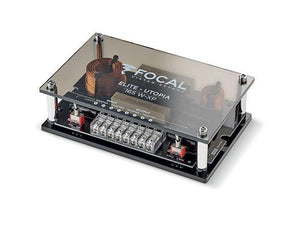

Bi-amplification crossover

All the components on our crossover have been specially selected and optimised to better control the effects of thermal dissipation. These components, essential for managing different channels and the soundstage, have improved reliability. As for the bi-amplification, this enables the woofer and tweeter to be driven separately in terms of power, resulting in optimum performance.

Features

Engraved serial number
Guarantee of authenticity

'W' sandwich cone
Excellent rigidity, high performance

Butyl suspension, exclusive 'TMD' (Tuned Mass Damper) profile
Enhanced control, more neutral, linear sound

2 Ohm voice coil
Sensitivity rise

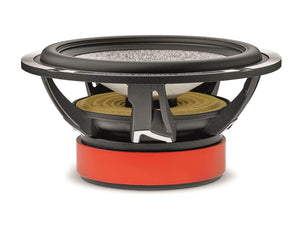

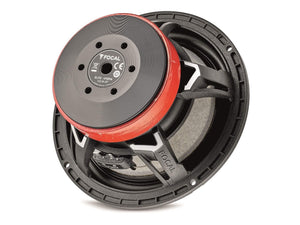

Aluminium basket
Rigid and antimagnetic

Integrated mounting bracket
Optimised flush mounting

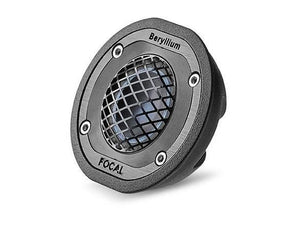

Beryllium inverted dome tweeter
Unparalleled sound reproduction

12/18dB Bi-amp crossover
Reliability, power and precision

Specifications

  Tweeter Woofer
Nominal Power 15w 100w
Max Power 150w 200w
Sensitivity (2.83V/1m) 94dB 93dB
Nominal Impedance 4Ω 2Ω
Dome Pure Beryllium 'W'
Surround Poron Butyl
DC Resistance 4Ω 1.8Ω
Voice Coil Diameter 20mm - 0 13/16'' 32mm - 1 1/4''
Former Kapton Kapton
Layers 2 2
Wire Wire CCAW
Net Weight 150g - 0.1 lbs 1,400g - 3.1 lbs

What's in the Box?

  • Two woofers
  • Two inverted dome tweeters
  • 2 Flush mount tweeter cups (with tweeters installed)
  • 2 Crossover networks
  • 2 Woofer grilles
  • 2 Woofer grille mounting rings
  • 8 Speed clips
  • Eight 1-1/8" Screws
  • Four 3/4" Screws
  • Specifications
  • Beryllium precautions
  • Focal brochure
