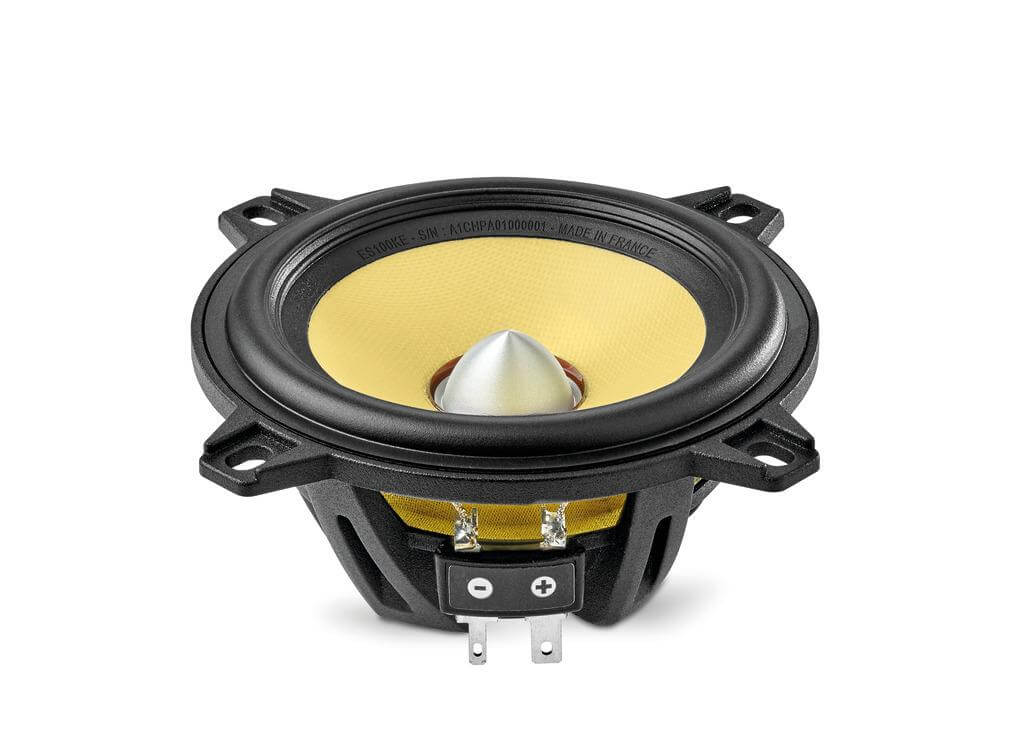

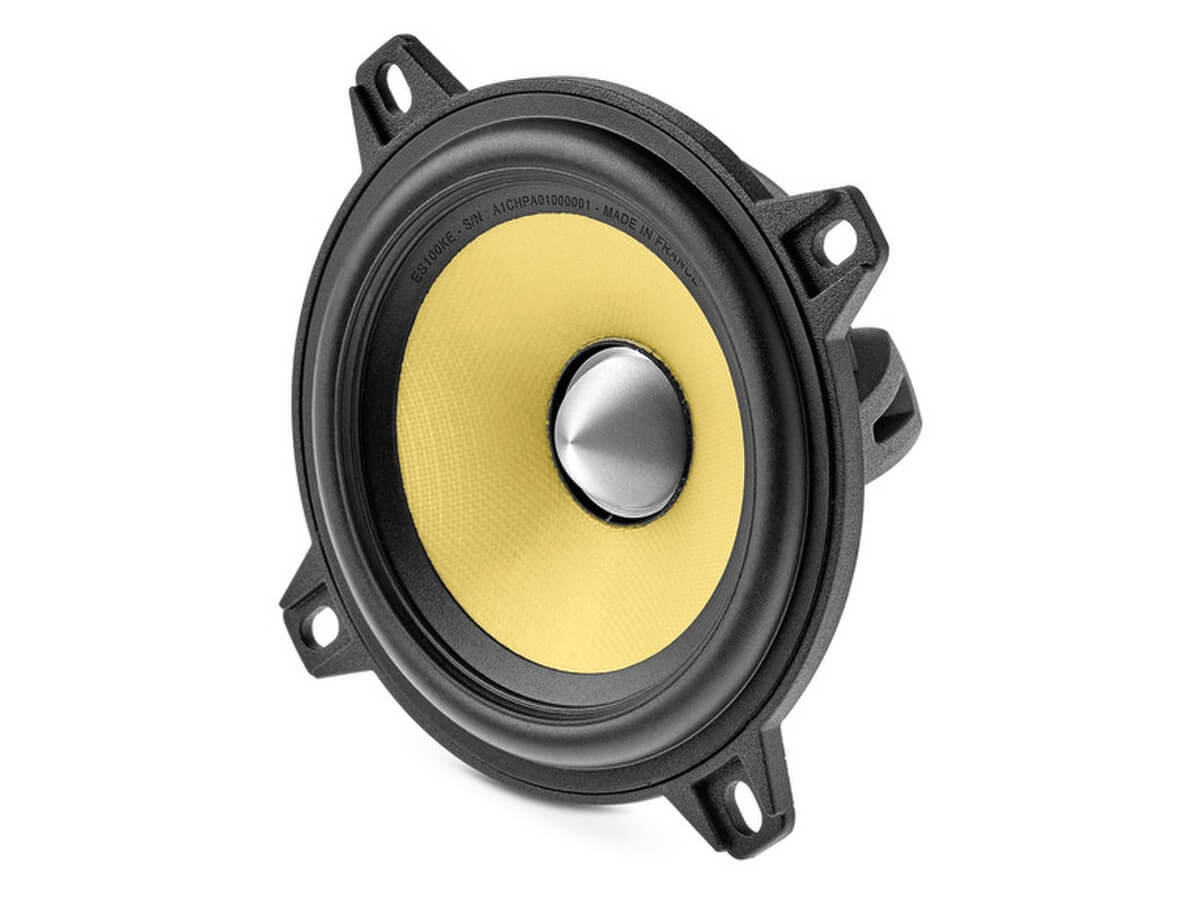

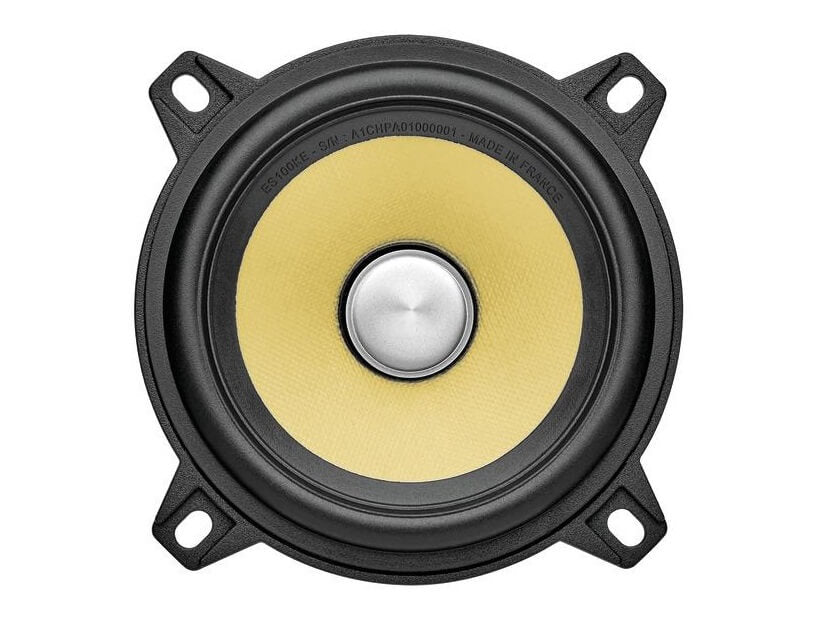

The ultra-compact Focal K2 Power Evo ES 100 KE kit is extremely sensitive for such a small package. It will adapt to all configurations and all types of vehicle interiors. The speaker drivers are equipped with the K2 cone, Focal’s iconic yellow innovation, that combines lightness, rigidity and damping.
These ingredients ensure dynamic sound with incredible definition. The central ogive cones, meanwhile, help to disperse the sound better inside the passenger compartment. For a super smooth treble, the TKME tweeter is the perfect, natural accompaniment to the midrange frequencies. Also made of aramid fibres, their inverted domes have an exclusive ‘M’-shaped profile that improves control of cone deformations and thereby limits distortion.

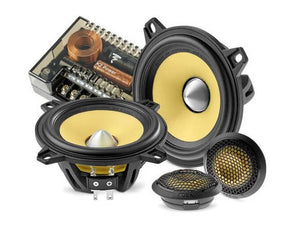

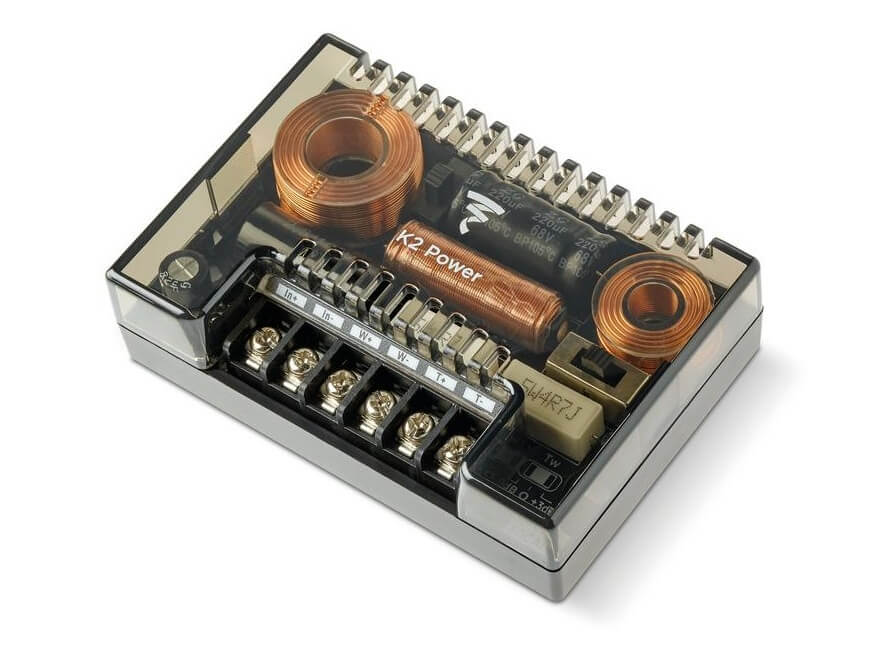

The kits enjoy a very compact crossover, making installation and adjustments inside the vehicle easy. Also, for a custom installation, the TKME tweeters can be mounted in the factory locations, flush-fitted or on angled brackets.

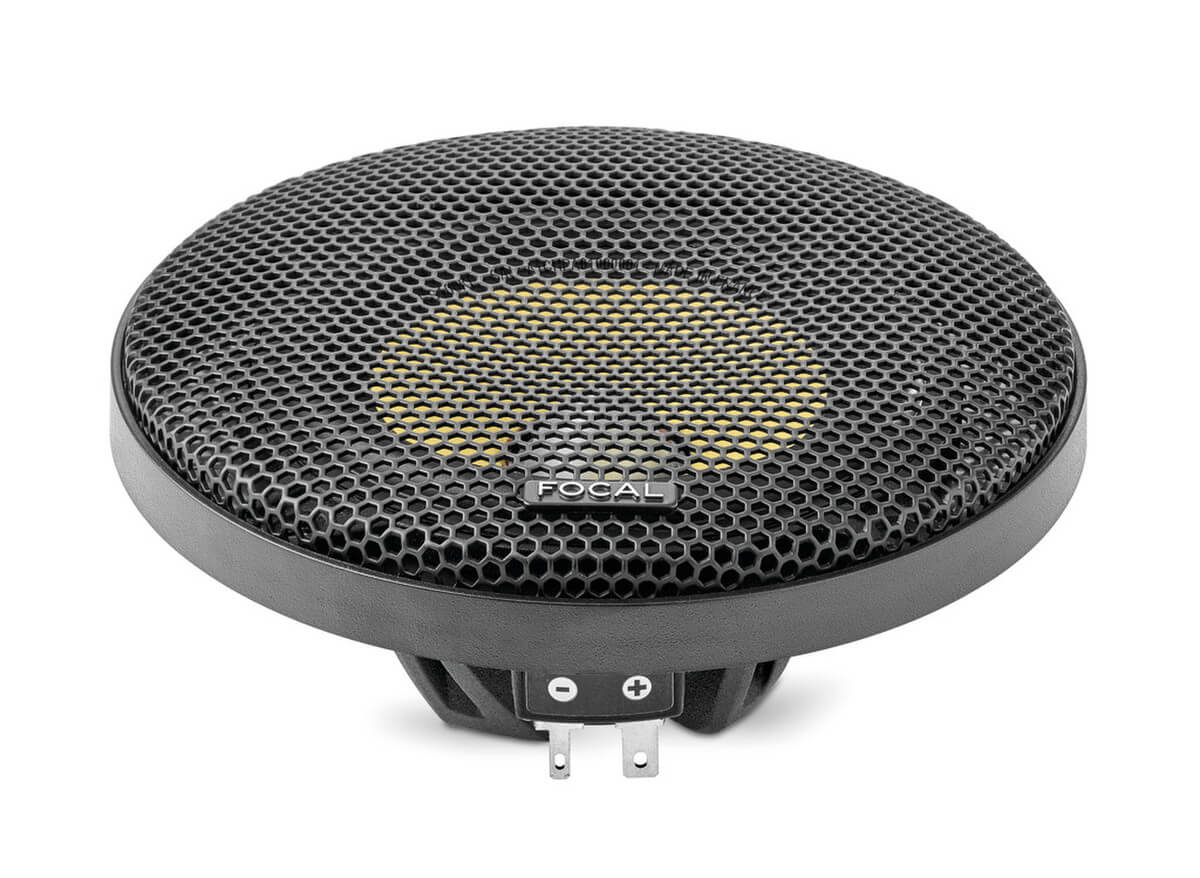

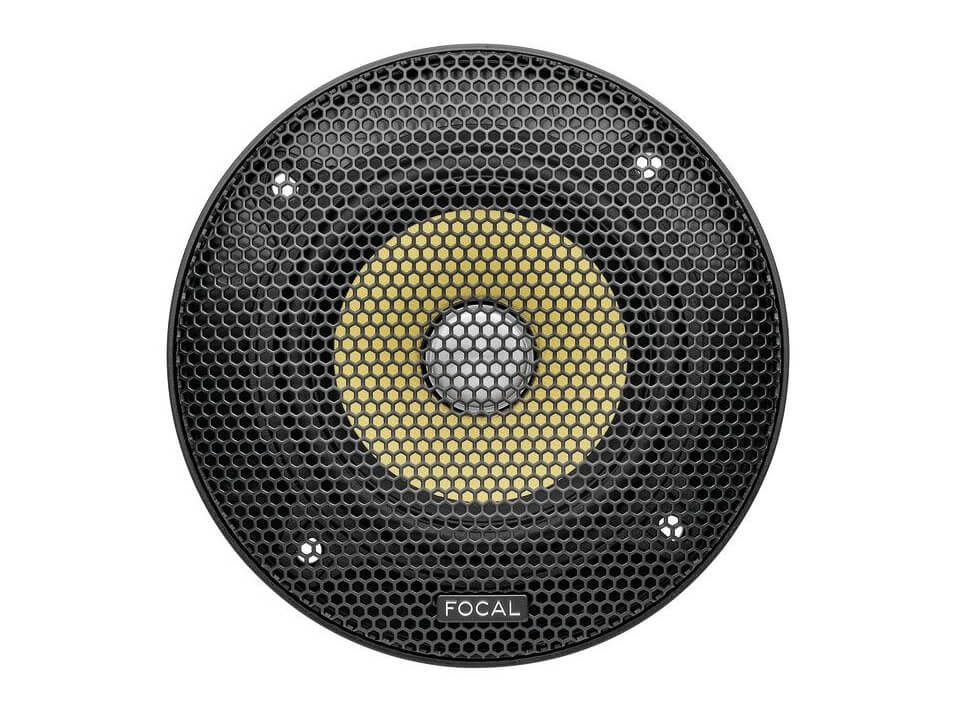

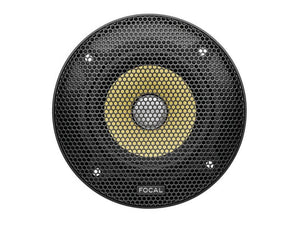

Aluminium grilles are also supplied with the kit.
Product Features
More Linearity and Precision - The progressive spider on the K2 Power speaker drivers is built around a progressive section to reproduce all the impact of the bass and increase the linearity, precision and dynamics of the sound.

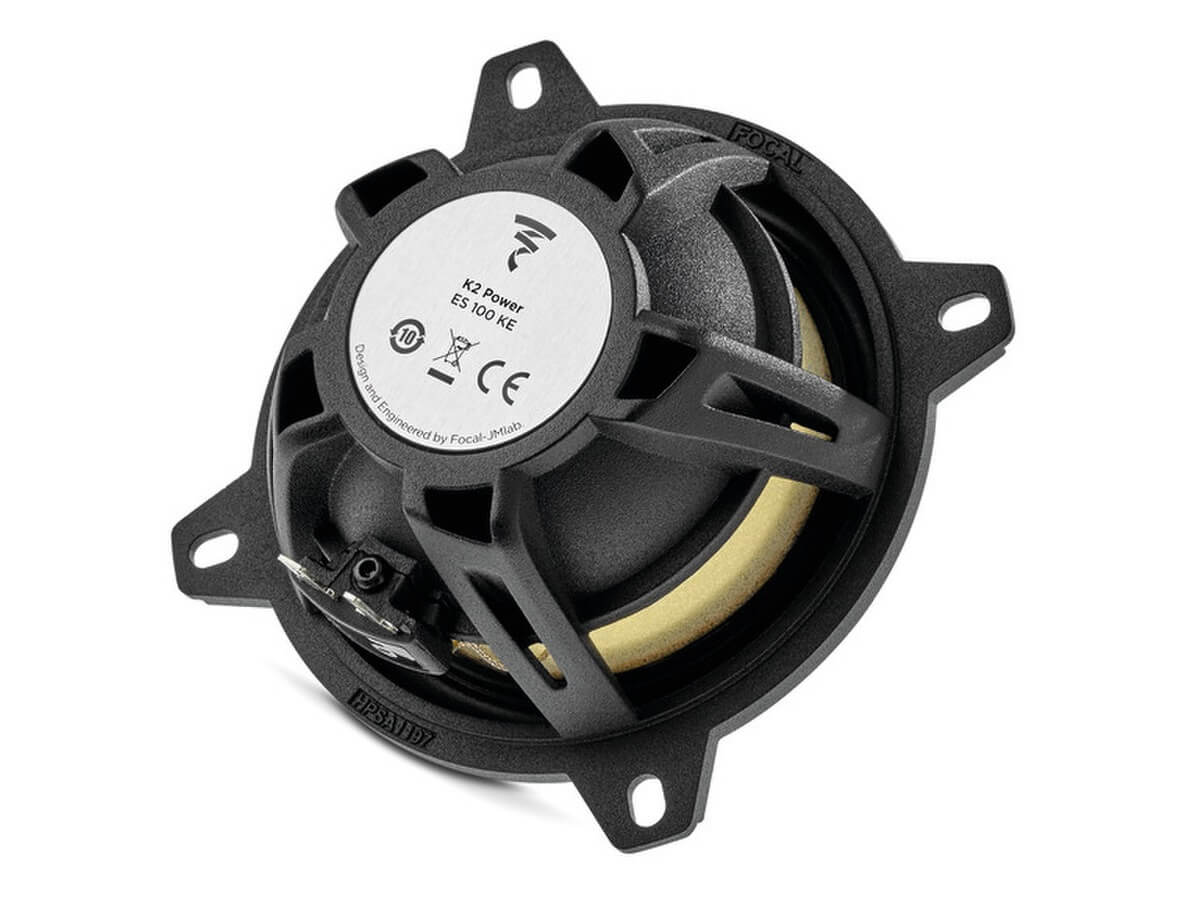

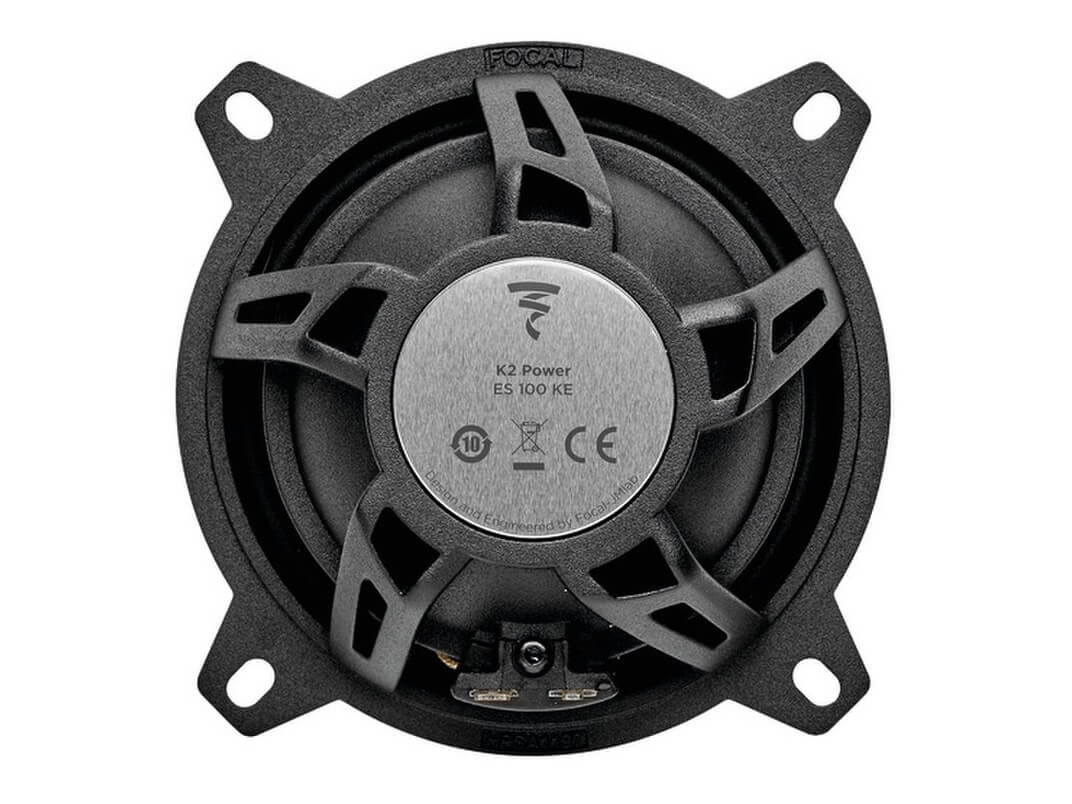

Increased SPL - The Radial VC cooling system for the speaker driver coil expels hot air from the coil towards the bottom of the motor through 6 holes. This improves control over the coil temperature, limiting the effects of heat compression and improving reliability. This improves the dynamics of the speaker driver and generates a powerful sound.
Optimised Crossovers - All the components used for the K2 Power crossovers have been specially selected and optimised to better control the effects of heat dissipation. These components are essential for managing the various channels and the soundstage reliably and efficiently.
Technical Specifications
- Maximum Power: 120W
- Nominal Power: 60W RMS
- Sensitivity (2.83V/1m): 90dB
- Frequency Response: 110Hz - 22kHz
- Impedance: 4 Ω
- Cone: K2 Sandwich
- Midrange: 4" (100mm)
- Voice Coil Diameter: 3/4" (20mm)
- Voice Coil Height: 1 1/2" (39mm)
- Magnet: Neodymium
- Surround: TMD
- Tweeter: TKME ("M" profile aramid inverted dome)
- Seperate Crossover: 12/12dB (3.5kHz)
Further Information
Focal ES 100 KE - Spec Sheet (PDF)
Focal ES 100 KE - Woofer - Tech Sheet (PDF)
