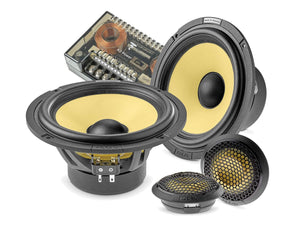

Composed of two 6 1/2” (165mm) woofers and two TKME tweeters, the Focal K2 Power Evo ES 165 KE kit is a compact, easy-to-install system. The speaker drivers’ K2 cones diffuse super dynamic, razor-sharp sound. Born from Focal’s expertise in all things acoustic, they combine the assets of lightness, rigidity and damping, all prerequisites of a good speaker driver.
The inverted dome TKME tweeters also feature an aramid fibre dome. Their exclusive ‘M’-shaped profile helps to improve control of cone deformation and to reproduce the high frequencies smoothly and accurately. The tweeters can be mounted in different ways: in the factory locations, flush or on angled brackets, for all-encompassing installation options.
The kit is supplied with aluminium grilles.
Product Features
K2 SANDWICH CONE - The aramid fibre cone inherits all of Focal’s unique know-how. Composed of an ultralight foam core, sandwiched between a thin layer of aramid fibre and a layer of fibreglass, it combines 3 key factors when it comes to acoustics: rigidity, lightness and damping, for sound that is as precise and dynamic as it can get.
TMD® SURROUND - The speaker drivers benefit from TMD(Tuned Mass Damper) technology, a patented innovation. This surround has a special profile, designed to better control the effect of resonance and reduce the distortion associated with deformations of the cone. The midranges are perfectly defined and very realistic.

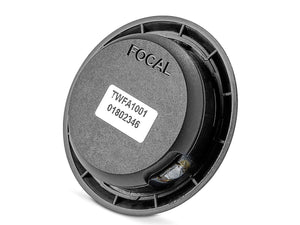

TKME TWEETER - The ‘M’-profile TKME tweeter extends the frequency response to 22 kHz with an even greater reduction of distortion, for smooth and precise diffusion in the high treble. Coupled with a ‘push-pull’ motor, based on IAL2 technology, it achieves very low resonance frequencies for perfect harmonic balance.
Technical Specifications
- Maximum Power: 200W
- Nominal Power: 100W RMS
- Sensitivity (2.83V / 1m): 91dB
- Frequency Response: 60Hz - 22kHz
- Impendance: 4 Ω
- Cone: K2 Sandwich

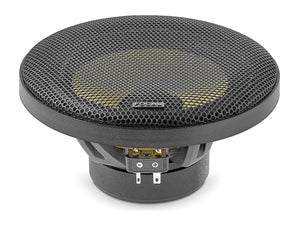

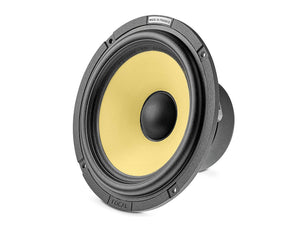

- Woofer: 6 1/2" (165mm)
- Voice Coil Diameter: 1 1/4" (32mm)
- Depth: 2 7/8"(74mm)
- Magnet: Ferrite
- Surround: Tuned Mass Damper (TMD®)
- Tweeter: M-Profile
- Crossover: 6-12 / 12dB (3kHz)
What's in the Box?
- Two woofers
- Two inverted dome tweeters (with attached 18" length of speaker wire)
- 2 Crossovers
- 2 Tweeter flush trim rings (installed)

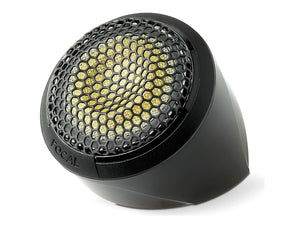

- 2 Tweeter angled surface mount cups
- 2 Dome protective washers

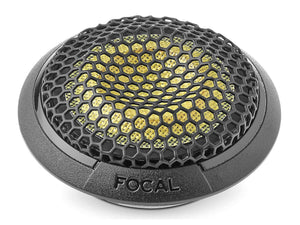

- 2 Tweeter grilles (installed)
- 2 Woofer grilles
- 2 Woofer grille mounting rings
- 2 Woofer gaskets
- 8 Speed clips
- Four 3/4" Screws
- Eight 1-1/8" Screws
- Quick start guide
- 2 Focal window stickers
Further Information
Focal ES 165 KE - Spec Sheet (PDF)
