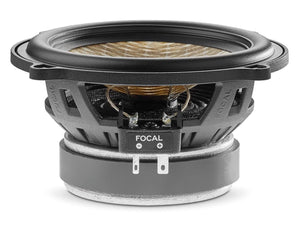

Equipped with the Flax cone, the woofers from the PS 130 FE kit deliver a very dynamic, natural sound without colouration. In addition, the TMD (Tuned Mass Damper) surround they incorporate stabilises the surround to achieve better control, and even greater neutrality and linearity.
The ‘M’-profile inverted dome TAM tweeters included in the kit offer a wider diffusion angle and greater sound definition, without directionality. Thanks to their tilted mounting, they are easy to install in the vehicle.
A compact, pre-cabled audiophile crossover completes this kit. Finally, with its engraved aluminium basket and meticulous finishes, PS 130 FE combines style, discretion and modernity for a premium system.

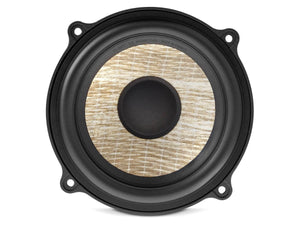

The Flax Cone, Expressive and Natural
This flax cone has been exclusively made in France by Focal since 2013. With its original design, it is 100% geared towards acoustic performance. This sandwich cone is formed of a flax fibre core placed between two thin sheets of glass fibre.
Flax is a fibre with the unique ability to reproduce a very natural sound without colouration, with a rich reproduction in the midrange and clear bass strokes. Its lightness offers great dynamics, while its rigidity sustains the bass and provides good damping to deliver a faithful listening experience.
Flax fibre is twice as light as glass fibre as it is hollow. Its very low elasticity makes it ideal for increasing the flexural rigidity module of a sandwich structure.
The TAM Tweeter
Made in France in the Focal workshops, the TAM tweeter stands out for its many qualities, particularly in terms of wide-angle diffusion, beneficial for in-car environments characterised by “off-axis” listening. Comprising a cone that is an aluminium/magnesium ‘M’-profile inverted dome, this tweeter unites an impressive array of cutting-edge Focal technologies to reproduce a faultless harmonic balance and highly-detailed treble.
The TMD Surround
A patented Focal technology, the TMD surround makes an appearance on all speaker drivers in the Flax Evo line, playing a key role in the reproduction and purity of the midranges as well as in the elimination of acoustic distortion, particularly when listening at high volumes.
Product Features
- High sensitivity
- Focal last technology
- Wider diffusion angle
- Unique and patented Flax cone (N°1350116)

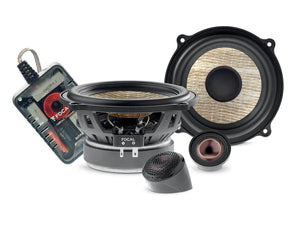

What's in the Box?
- Two PS 130 FE woofers
- Two TWFA1018 inverted dome tweeters (each has a 21" length of speaker wire attached)
- 2 Crossover networks
- 2 Woofer grilles
- 2 Woofer grille mounting rings
- 2 Tweeter grilles (installed)
- 2 Tweeter trim rings (installed)
- 2 OEM tweeter mounting rings
- 2 Tweeter angle mount cups
- 2 Woofer mounting gaskets
- 8 Speed clips
- Four 3/4" Screws
- Eight 1" Screws
- Owner's manual
Technical Specifications
- Diameter: 5" (130mm)
- Voice-coil diameter: 1" (25mm)
- Voice-coil height: 3/8" (10mm)
- Magnet: 3 1/3" (85mm)
- Processed Aluminum/Magnesium inverted dome tweeter
- Separate crossover: 12-12dB/Oct
- Adjustable tweeter level: 0; -3dB/Oct
- Max. power: 120W
- Nom. power: 60W
- Sensitivity (2.83V/1m): 91.6dB
- Frequency response: 75Hz – 28kHz
- Accessories: Supplied grilles
Further Information
Focal Flax Evo PS 130 FE Woofer - Tech Sheet (PDF)
