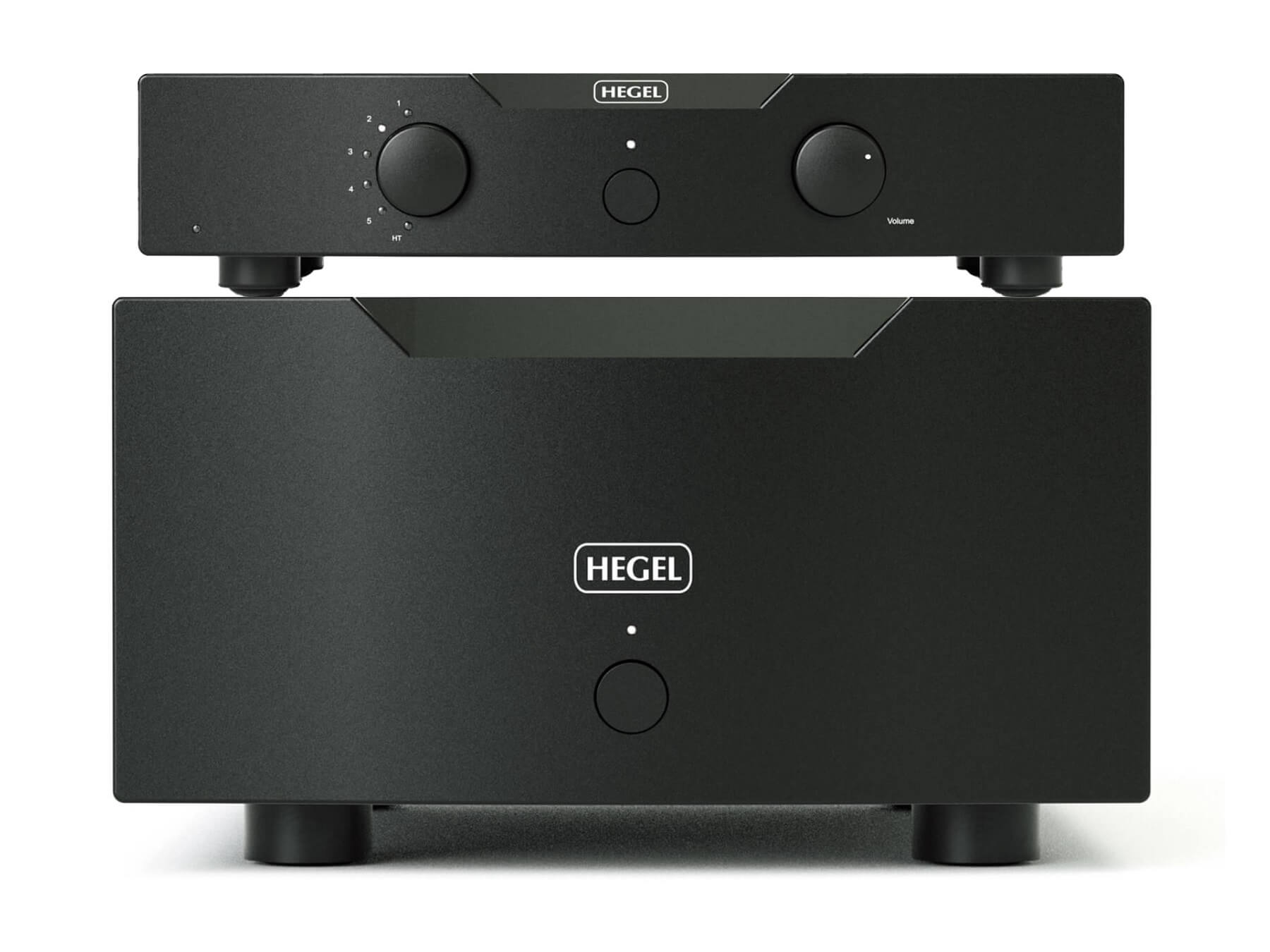

Hegel P30A / H30A - Pre / Power Amplifier Combo

The new Hegel H30A and P30A power and pre amplifier combination is the culmination of Hegel's research and development and product experience from over the last 15 years.

The new Hegel H30A Reference Power Amplifier has been nicknamed "The Orchestra." With its solid power, speaker matching is no longer an issue.

The Hegel H30A’s job is to take charge of the music on any speakers and make it sound as good as possible without missing a step. Few can think of any more challenging music than a large orchestral piece to reveal an amplifiers true performance.

The Hegel P30A has been given the nickname of "The Conductor".  It is named as such because its job is to control the power amplifier with a signal that is as true to the music as possible. Hegel believe the preamplifier is the most crucial component in a top sounding system, and that it is the hardest to get right.

The Hegel engineers have had their work cut out with keeping the very low amplitude signals coming from the source the same throughout the preamplifier. This is because they can become easily corrupted.

HiFi Plus Review

Hegel P30A / H30A - Review

For complete details and product descriptions, click on the links below.

• Hegel P30A - Pre-Amplifier
• Hegel H30A - Power Amplifier

Introduction the Hegel H30A and P30A Amplifiers - Video

Hegel P30A - Technical Specifications

• Remote Control: Volume, Source and Mute
• Inputs: 2 x XLR balanced, 3 x RCA unbalanced and Home Theatre inputs
• Outputs: 1 x XLR balanced and 2 x RCA unbalanced outputs
• Other Connections: 3.5mm IR-direct jack, 3.5 mm jack 12V trigger output
• Signal to noise Ratio: More than 130 dB balanced mode
• Crosstalk: Less than -100 dB
• Distortion: Less than 0.005 %
• Intermodulation: Less than 0.01% (19kHz+20kHz)
• Finish: Black
• Dimensions/weight: 9.6cm x 43cm x 30cm (HxWxD), 7.2kg

Hegel H30A - Technical Specifications

• Output Power: More than 1100 W in 8 ohms (Mono)
• Miniumum load Impedance: 1 ohm load
• Inputs: RCA unbalanced and XLR balanced
• Speaker Outputs: One pair of heavy duty gold plated terminals
• Input Impedance: Balanced 20 kohm, unbalanced 10 kohm
• Signal to noise Ratio: More than 100 dB
• Crosstalk: Less than -100 dB
• Distortion: Less than 0.003% at 100 W in 8 ohms
• Intermodulation: Less than 0.01% (19 kHz + 20 kHz)
• Damping Factor: More than 500 (Mono)
• Power Supply: 2000 VA dual mono, 270,000 μF capacitors
• Output Stage: 56 pcs 15 A 200 W high speed, ultra-low distortion bipolar transistors
• Finish: Black
• Dimensions / Weight: 24 cm x 43 cm x 57.5 cm (HxWxD), weight 47.4 kg

Further Information

Hegel H30A / P30A - User Manual
