Helix IK EC10.1 DVC2 - VW T6.1 / T6 / T5 - Subwoofer Enclosure

Sale Price £224.95
In Stock
Order in the next to get it by

Specially designed for seamless integration into the passenger-side seat console without swivel seat of Volkswagen T6.1, T6, and T5, the HELIX IK EC10.1-DVC2 – VW MULTI-TRANS combines integration-intelligence with powerful low-frequency output. Its optimised enclosure design ensures excellent bass dispersion throughout the vehicle, making it a perfect fit for those seeking deep, immersive bass while using the available space efficiently.

Superior bass performance

The IK EC10.1-DVC2 – VW MULTI-TRANS features a high-performance 10" (250 mm) woofer with a sandwich paper cone, delivering rich and powerful bass that fills the vehicle. The larger chassis provides a noticeable increase in sound pressure and deep bass compared to conventional 200mm woofers in the same application Thanks to its up-firing design, the subwoofer directs sound upwards, resulting in an even and immersive bass experience.

Space-saving and durable design

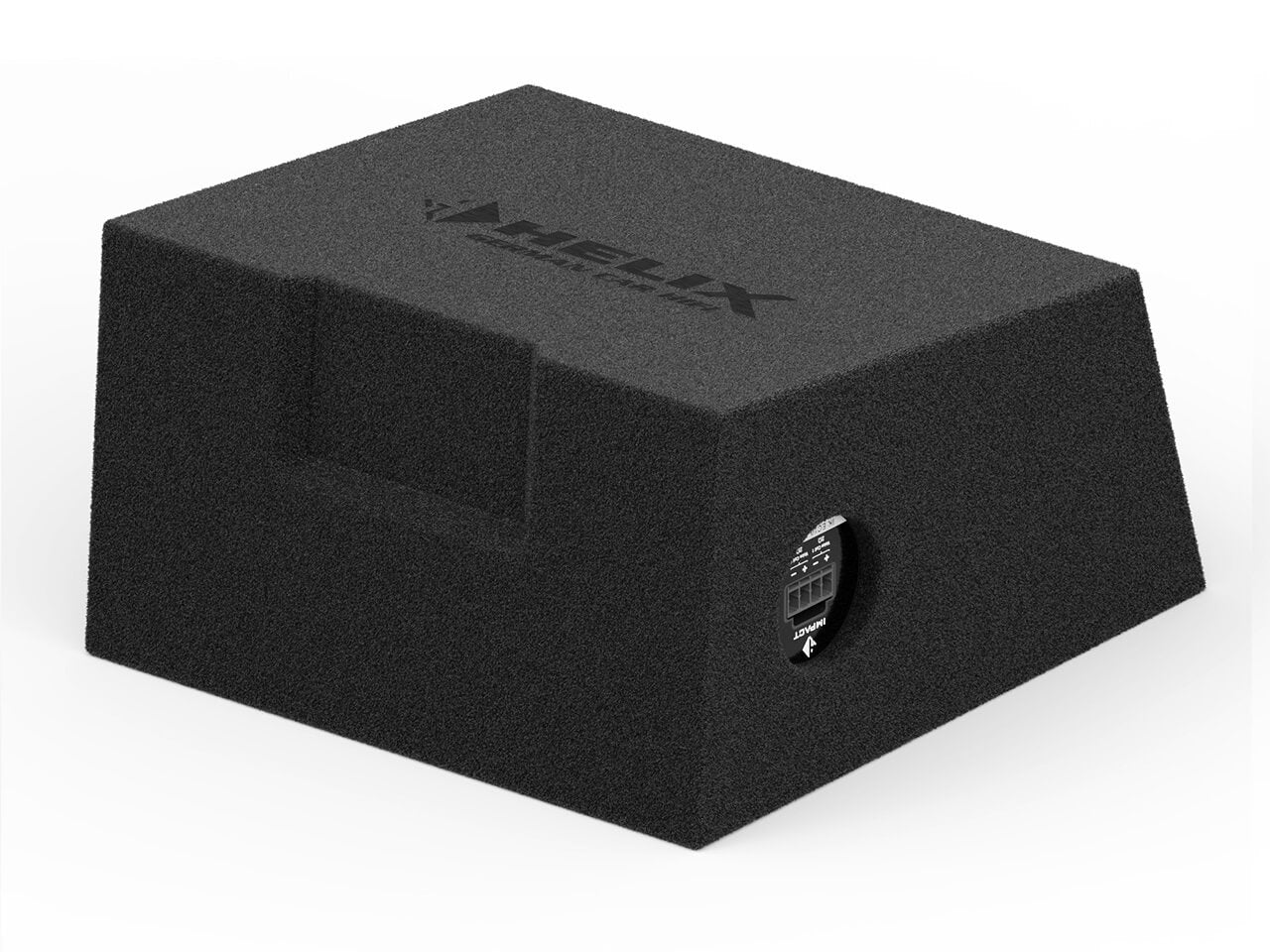

The woofer is optimized for installation in the passenger seat console without swivel seat of VW T6.1, T6, and T5 models, saving valuable space in the vehicle. Additionally, the flush-mounted chassis provides optimal protection for the speaker. The enclosure features a durable carpet surface with an embroidered HELIX logo, adding both style and resilience.

Easy installation and flexible configuration

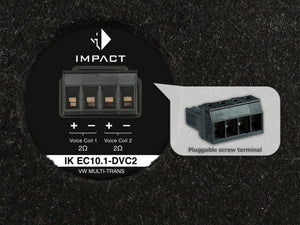

With a pluggable screw terminal, installation and removal of the subwoofer are quick and hassle-free. The configurable voice coil impedance (2 x 2 Ohms, 1 x 4 Ohms, or 1 x 1 Ohm) allows for flexible system integration with a variety of amplifiers, catering to different configurations effortlessly.

Product Features

  • Powerful enclosure subwoofer especially designed for installation in the seat console without swivel seat of Volkswagen T6.1, T6 and T5
  • Optimized construction design delivers outstanding sound quality and ideal bass dispersion in the vehicle
  • Equipped with one powerful 250 mm / 10“ woofer with sandwich paper cone for rich, deep bass
  • Pluggable screw terminal for quick and safe installation and removal
  • Voice coil impedance configurable via connection terminal allows flexible system configuration – 2 x 2 Ohms, 1 x 4 Ohms or 1 x 1 Ohm
  • Flush-mounted subwoofer chassis for space-saving design and enhanced protection
  • Sturdy carpet surface with embroidered HELIX logo
  • Including mounting kit for secure fixation in the seat console

What's in the Box?

  • 1 x Enclosure subwoofer IK EC10.1-DVC2 – VW MULTI TRANS
  • 1 x Mounting kit
  • 1 x Data sheet

Technical Specifications

  • Power handling RMS: 300 Watts
  • Recommended amplifier power RMS: 150 - 300 Watts
  • Impedance: 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
  • Max. linear excursion Xlin: +/- 6 mm
  • Sensitivity SPL: 90 dB @ 2.83V / 1m - 87 dB @ 1W / 1m
  • Dimensions (H x W x D): 193 x 350 x 330 mm
  • Recommended DSP settings: "Self-define" highpass 46 Hz / Q = 1.4
  • EQ filter: 100 Hz / Q = 1.5 / -3 dB

Further Information

Helix IK EC10.1 DVC2 - Data Sheet (PDF)
