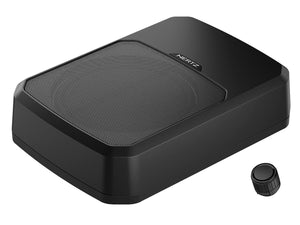

Hertz Dieci DBA 201 F - Slim Active Sub-Box
£349.00
In StockIn StockOut of StockVAT included.
Shipping calculated at checkout.
Order in the next for delivery by
hoursminutes

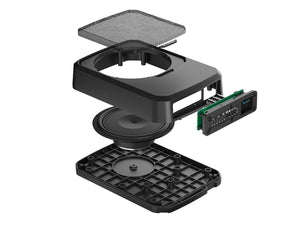

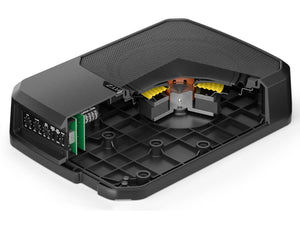

The DBA 201 F flat active subwoofer enclosure optimized with FEM simulation ensures superior performance, maximising the subwoofer output with a super flat size. The massive magnet of the 8 in. driver provides optimal control during the highest cone excursion.
Fine-tune the In-Car Performance
The built-in 24 dB/Oct. low-pass crossover filter with a variable cutting corner frequency (50÷150 Hz) allows you to perfectly match the DBA 201 F to your speaker system. Adjustable bass boost (0÷6 dB @ 45Hz) can add bass output as you prefer, allowing correction for OEM sound equalisation.
With the phase inverter (0-180°), you can optimise phase alignment between the DBA 201 F and your speaker system, regardless of the subwoofer’s position in the car. The subsonic filter (15 Hz @ 24 dB/Oct) protects the cone from over-excursion and amplifiers from overheating. The input sensitivity control is the perfect tool to maximise the overall system output level while preventing clipping.
Auto turn-on and Standby Mode
The built-in audio sense circuit allows the Hertz DBA 201 F to turn on and timeout to standby mode automatically. You can switch off the audio sense function when a remote turn-on wire is available.
Product Features
- High performance in a super flat design
- Internal 440-watt peak Class D amplifier
- Compatible with every car audio system
- Plug & Play connection
- Extra full set of controls to fine-tune the in-car performance
- Auto turn-on and standby mode
- Provided remote-level control
What's in the Box?
- Hertz DBA 201 F
- HRC 01 Cable (5m)
- x1 Fuse 15A
- HRC 01 Top Mount
- HRC 01 Knob
- HRC 01 Recessed Mount
- x2 Velcro Strips (215mm x 50mm)
- Input Cable (300mm)
- x2 Speaker to PRE Adapters (150mm)
- Mountin Feet
Technical Specifications
- Size: 200mm
- Power Handling - Continuous: 220w
- Power Handling - Peak: 440w
- Impedance Ohm: 0.4
- Design: Supe Flat-Sealed
- Voice Coil Ø: 38.6 (1.52) mm (in.)
- Frequency Response Hz: 32 ÷ 400
- Magnet size D x d x h mm: 110 x 45 x 17
- Weight of one component kg (lb): 4.3 (9.48)
- Magnet: High Density Flux Ferrite
- Cone: Pressed Paper
- Voice Coil Type: Copper
