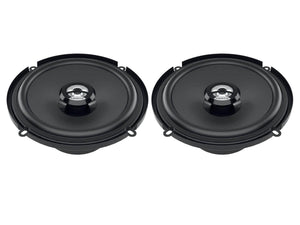

Hertz Dieci DCX 160.3 - 2-Way Coaxial Speaker Set

£69.99

In Stock

Quantity: Speaker Pair

  • Speaker Pair
Free Shipping Over £100 to United Kingdom
SKU: HRT-DIEC-DSX160Categories: Coaxial Speakers, Hertz, Speakers

Product Details

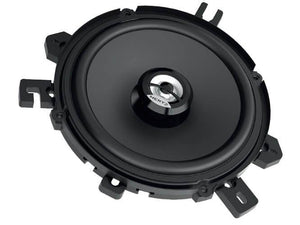

The new Hertz Dieci DCX 160.3 6” coaxial includes an adaptor ring designed for installation in GM and Honda models with 6” OEM speakers.

To meet all installation needs, without giving up on Hertz quality and performance, the Dieci coaxes were designed with maniacal care to provide a linear frequency response and ensure high reliability.

A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a pressed-paper cone provide the optimum ratio between installation friendliness and sound with dynamic and emotional impact.

Features

  • Large motor assembly for mobile voice coil control.
  • Pure copper voice coil, wound on conex former, for maximum lightness.
  • Water-repellent treated paper cone.
  • TPU surround, for wide excursion and resonance damping.
  • Neodymium tweeter with PEI dome, for compactness and energy at high frequencies.
  • DIN size basket protected by abrasion-proof dust paint.
  • Tin-plated, high current terminals.
  • Silver-plated lead wires for maximum reliability and conductivity.
  • Butyl rubber protective cover, against crashes and abrasions.
  • Epoxy glue for basket and motor system provides perfect coupling.
  • Low carbon content plates for maximum magnetic permeability and high heat dissipation.
  • Provided adaptor ring designed for installation in GM and Honda models with 6”.

Technical Specifications

  • Woofer Size: 160mm (6 in)
  • Tweeter Size: 25mm (0.6 in)
  • Power Handling: 120W Peak - 60W Continuous
  • Impedance: 4Ω
  • Frequency Response: 50Hz ÷ 21kHz
  • Sensitivity: 93 dB SPL
  • Magnet Size: 80mm x 40mm x 15mm
  • Voice coil Ø: 25mm (1.0 in)
  • Woofer Magnet: High density flux ferrite
  • Tweeter Magnet: Neodymium
  • Woofer Cone: Water-repellent pressed paper
  • Tweeter Cone: PEI
  • Weight of one component: 0.75kg (1.65 lb)

Further Information

Hertz Dieci DCX 160.3 - 2-Way Coaxial Speaker Set - Tech Sheet

Hertz Dieci Speakers - User Manual
